Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

29 part groups · 5 illustrations

Illustrations

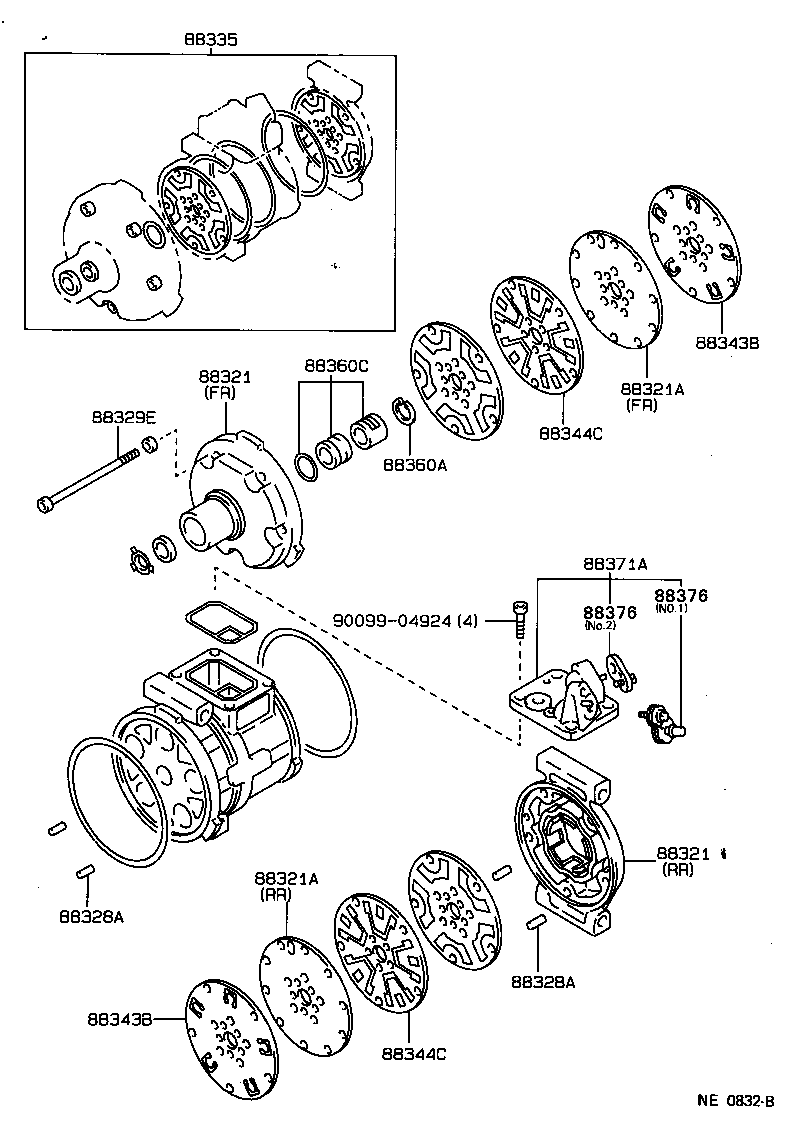

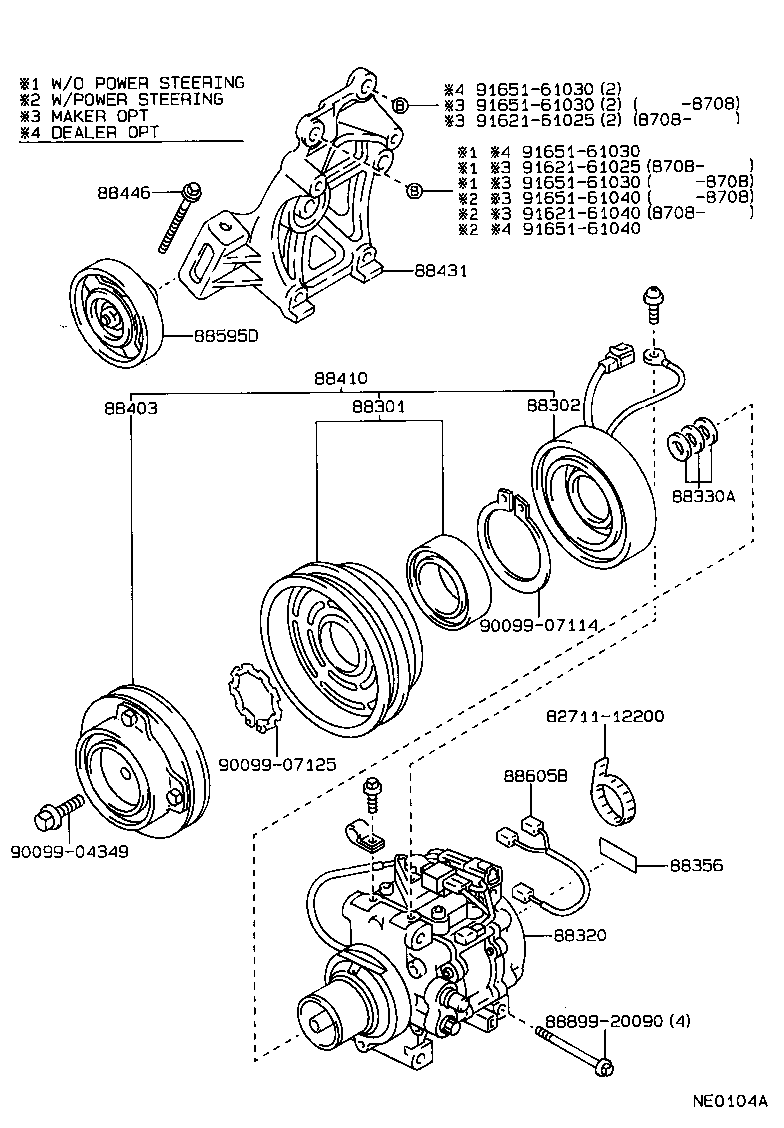

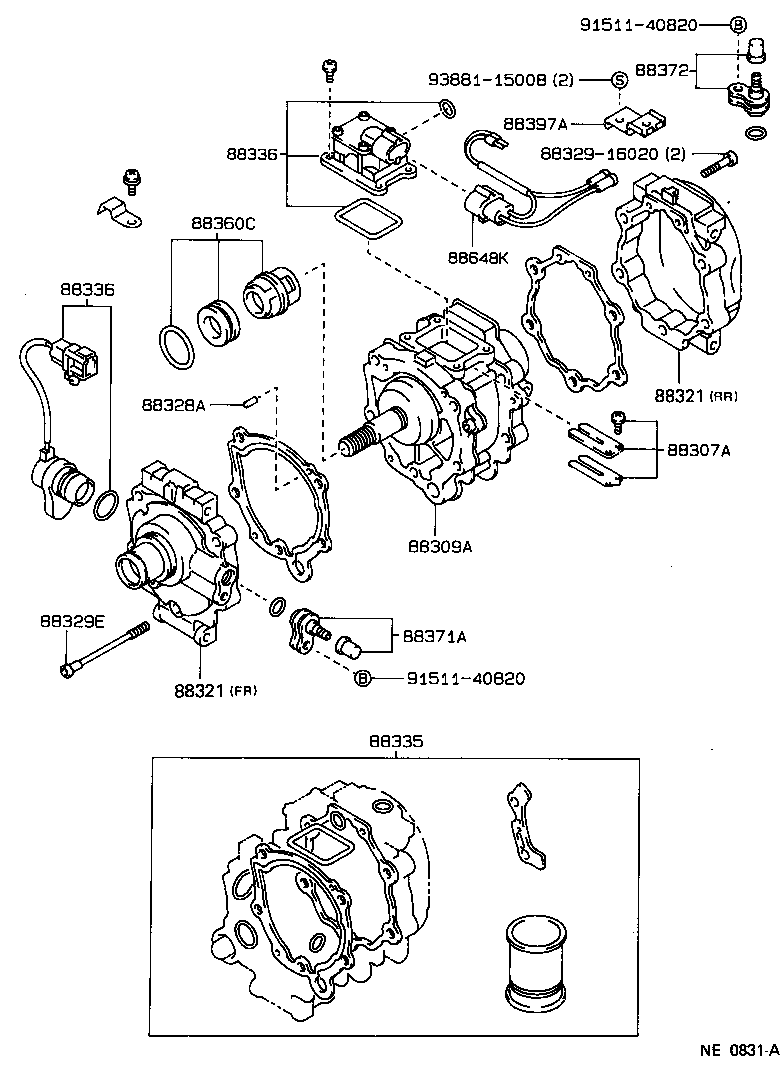

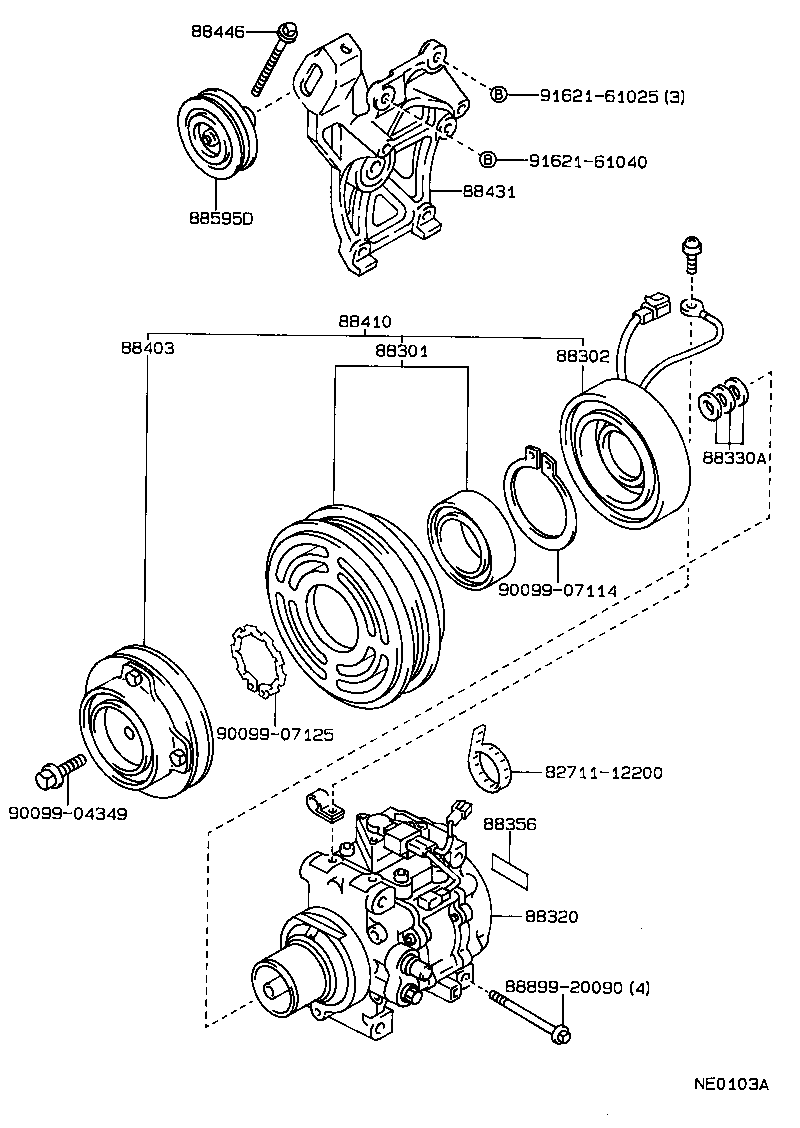

Figure NE0102B NE0102B 1987-05 → — Figure NE0103A NE0103A 1987-05 → — Figure NE0104A NE0104A 1987-05 → — Figure NE0831A NE0831A 1987-05 → — Figure NE0832B NE0832B 1987-05 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88307A Reed Sub-assy, Valve
88309A Pump Sub-assy, Compressor
88320 Compressor Assy, Cooler
88321 Head, Cooler Compressor Cylinder
88321A Plate Sub-assy, Valve
88328A Pin, Compressor
88329E Bolt, Compressor, NO.1
88330A Washer (FOR MAGNET CLUTCH)
88335 Gasket Kit, Overhaul
88336 Sensor, Compressor
88343B Reed, Suction Valve
88344C Reed, Discharge Valve
88356 Label, Compressor Caution
88360A Ring, Compressor Seal Plate Snap
88360C Seal Assy, Shaft
88371A Valve, Suction
88372 Valve, Discharge
88376 Cap, Blind
88397A Clip, Compressor
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88444 Bracket, Idle Pulley
88446 Bolt, Idle Pulley
88595D Pulley Assy, Idle
88605B Harness Sub-assy, Air Conditioner Wiring
88648K Wire Sub-assy, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
