Toyota Corolla HB/LB

1992-05 → 1997-10 · chassis AE10#,EE100 · catalogue 153330 · General

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

17 part groups · 5 illustrations

Illustrations

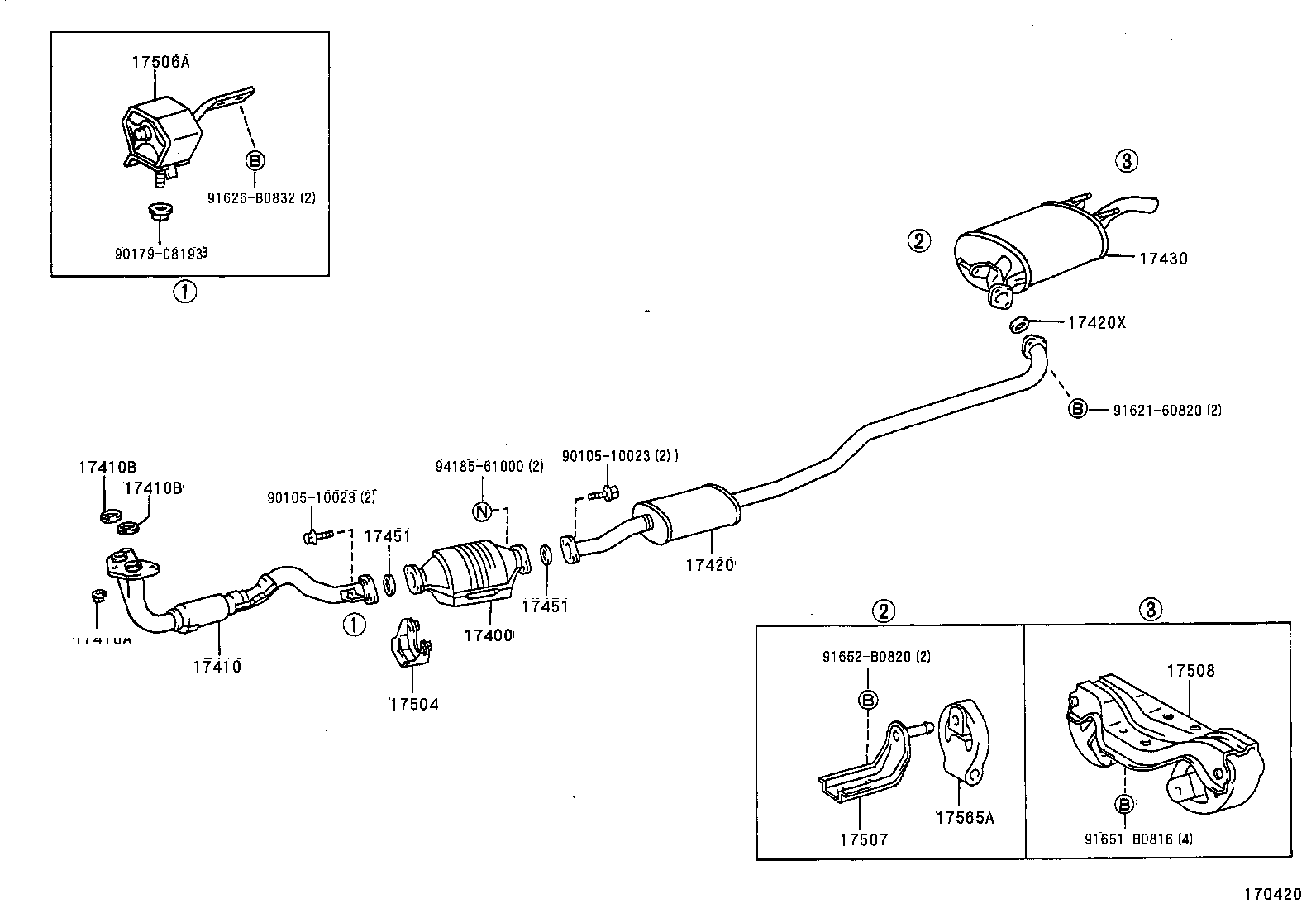

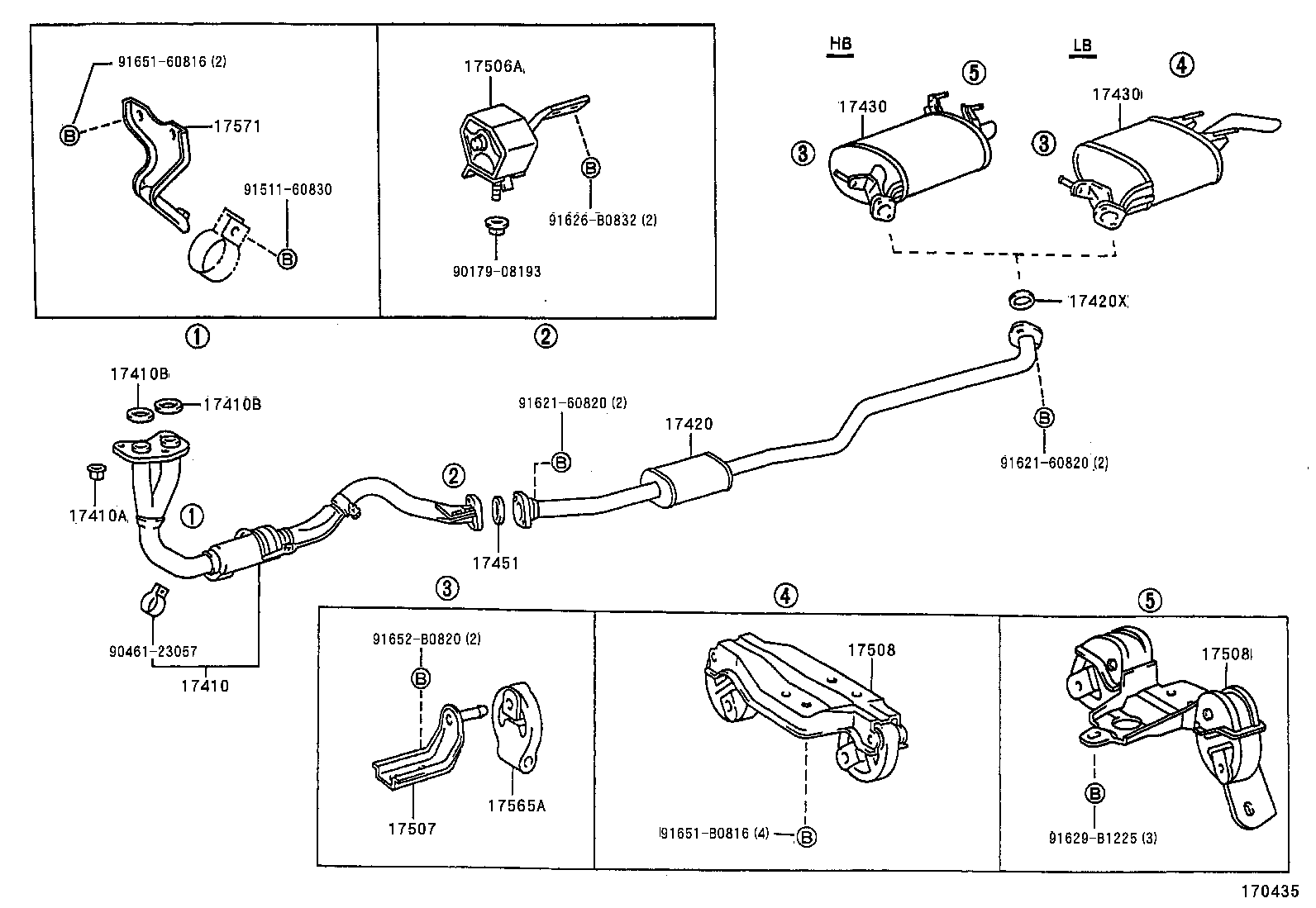

Figure 170455 170455 1992-05 → — Figure 170455 170455 1995-05 → — Figure 170420 170420 1992-05 → — Figure 170430A 170430A 1994-02 → 1996-05 Figure 170435 170435 1992-05 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17502B Bracket Sub-assy, Catalytic Converter, Front
17503 Bracket Sub-assy, Catalytic Converter, Rear
17504 Bracket Sub-assy, Catalytic Converter
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17507 Bracket Sub-assy, Exhaust Pipe NO.2 Support
17508 Support Sub-assy, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
