Toyota Corolla HB/LB
1992-05 → 1997-10 · chassis AE10#,EE100 · catalogue 153330 · General
Discontinued model
Data version 1998-04

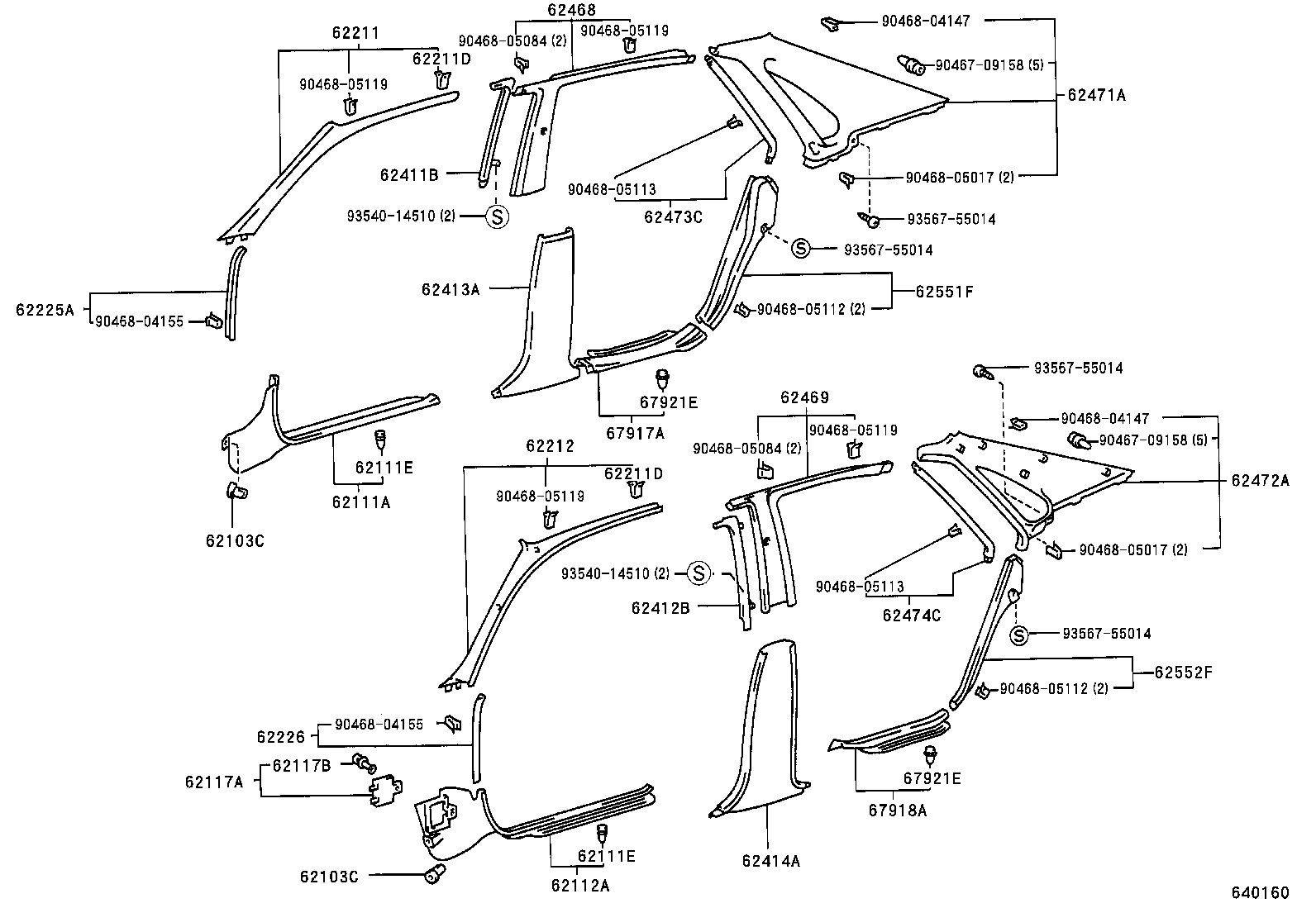

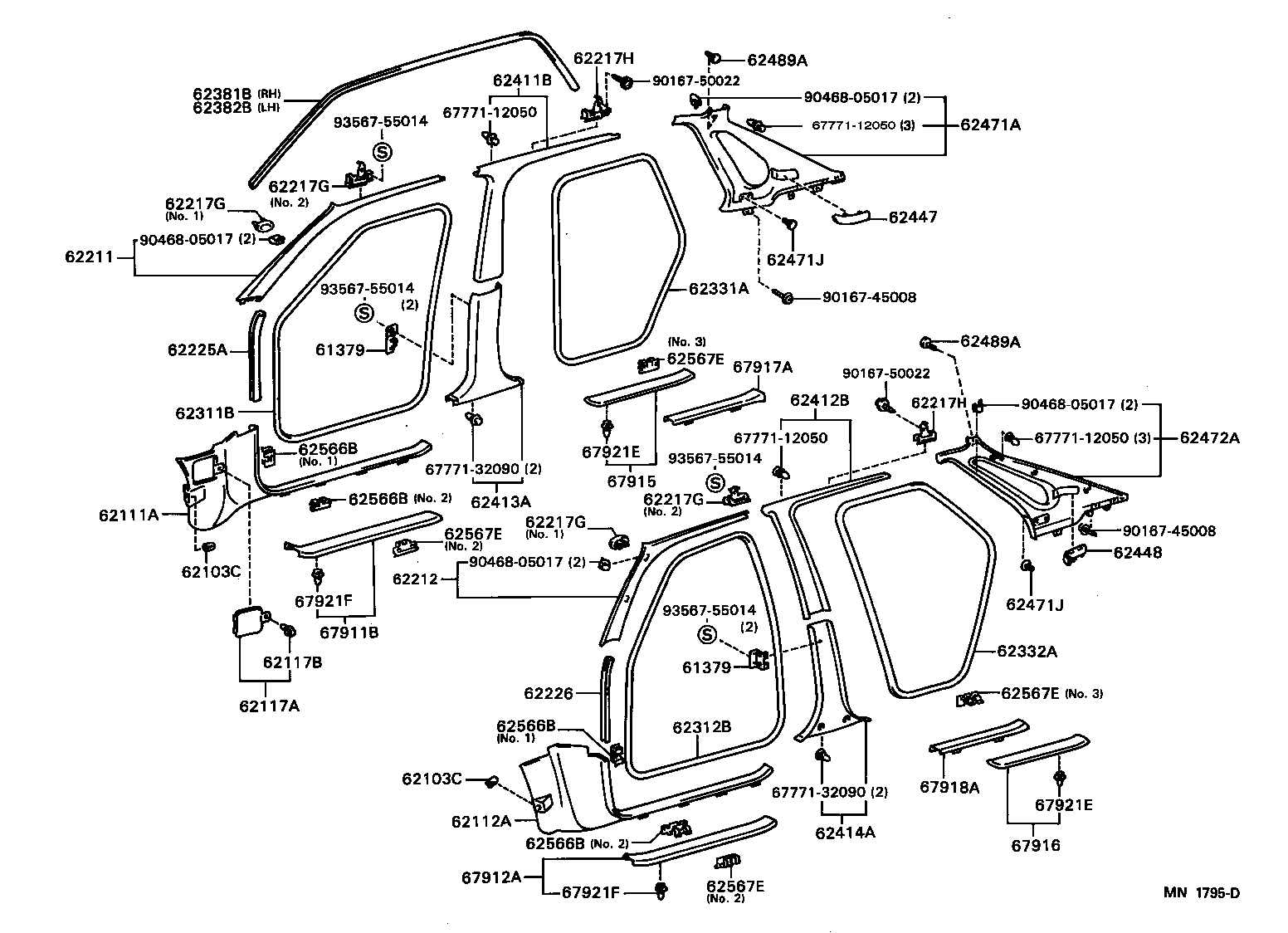

Inside Trim Board & Door Opening Trim Moulding
56 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 61379 | Bracket, Center Pillar Garnish |
| 62103C | Clip, Cowl Side Trim Board Set |
| 62111A | Trim Sub-assy, Cowl Side, RH |
| 62111E | Retainer, Cowl Side Trim |
| 62112A | Trim Sub-assy, Cowl Side, LH |
| 62117A | Cover, Cowl Side Trim Service Hole |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62211 | Garnish, Front Pillar, RH |
| 62211D | Clip(FOR FRONT BODY PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62217H | Clip, Center Piller Garnish |
| 62225A | Garnish, Front Pillar, Lower RH |
| 62226 | Garnish, Front Pillar, Lower LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332A | Weatherstrip, Rear Door Opening Trim, LH |
| 62381B | Weatherstrip, Roof Side Rail, RH |
| 62382B | Weatherstrip, Roof Side Rail, LH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62443 | Joint, Roof Side Rail Garnish, RH |
| 62444 | Joint, Roof Side Rail Garnish, LH |
| 62447 | Cover, Roof Side Inner Belt Anchor, RH |
| 62448 | Cover, Roof Side Inner Belt Anchor, LH |
| 62468 | Garnish, Center Pillar, Rear RH |
| 62469 | Garnish, Center Pillar, Rear LH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62472A | Garnish, Roof Side, Inner LH |
| 62473C | Board, Roof Side Inner Garnish, RH |
| 62474C | Board, Roof Side Inner Garnish, LH |
| 62476A | Cap, Roof Side Inner Garnish, RH |
| 62477A | Cap, Roof Side Inner Garnish, LH |
| 62489A | Clip, Roof Side Inner Garnish |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62551F | Garnish, Rear Seat Side, RH |
| 62552F | Garnish, Rear Seat Side, LH |
| 62566B | Clamp, Rocker Panel Inner Protecter, NO.1 |
| 62567E | Clamp, Rocker Panel Inner Protector, NO.2 |
| 62594E | Pocket, Quarter Trim, RH |
| 62595E | Pocket, Quarter Trim, LH |
| 67841 | Cover, Quarter Service Hole, NO.1 RH |
| 67842 | Cover, Quarter Service Hole, NO.1 LH |
| 67911B | Plate, Front Door Scuff, Outside, RH |
| 67912A | Plate, Front Door Scuff, Outside LH |
| 67915 | Plate, Rear Door Scuff, Outside RH |
| 67916 | Plate, Rear Door Scuff, Outside LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
| 67921E | Retainer, Rear Door Scuff Plate |
| 67921F | Retainer, Front Door Scuff Plate |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
