Toyota Corolla HB/LB
1992-05 → 1997-10 · chassis AE10#,EE100 · catalogue 153330 · General
Discontinued model
Data version 1998-04

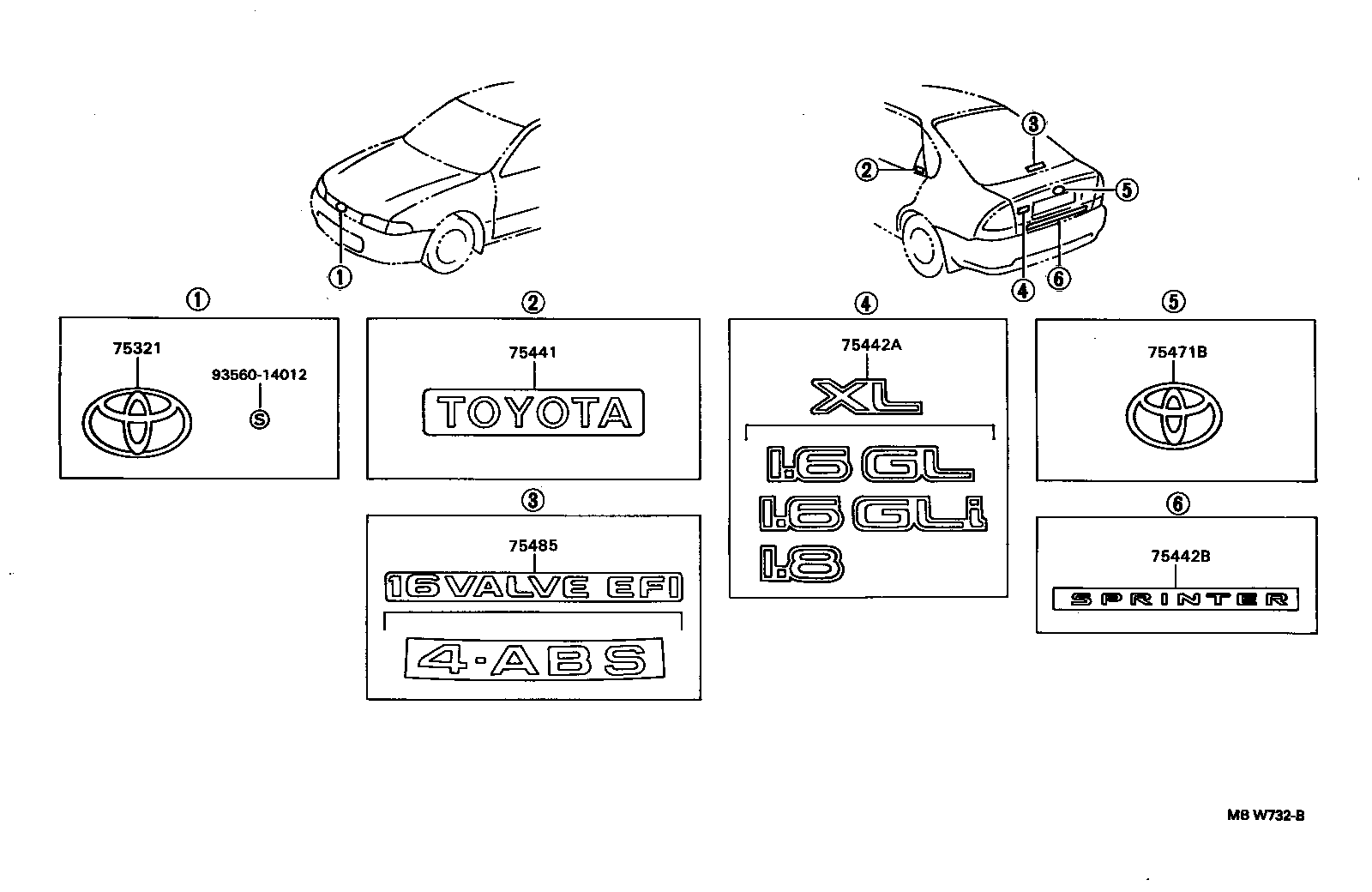

Emblem & Name Plate (EXTERIOR & INTERIOR)
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 75311 | Emblem, Radiator Grille (OR FRONT PANEL) |
| 75321 | Plate, Radiator Grille OR Front Panel Name |
| 75441 | Plate, Rear Name, NO.1 |
| 75441C | Plate, Back Door Name |
| 75442A | Plate, Back Door Name, NO.2 |
| 75442B | Plate, Back Door Name, NO.2 |
| 75443 | Plate, Back Door Name, NO.3 |
| 75444A | Plate, Back Door Name, NO.4 |
| 75471B | Plate, Rear Body Name, NO.1 |
| 75485 | Plate, Back Window Name |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
