Toyota Corolla HB/LB

1992-05 → 1997-10 · chassis AE10#,EE100 · catalogue 153330 · General

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

22 part groups · 2 illustrations

Illustrations

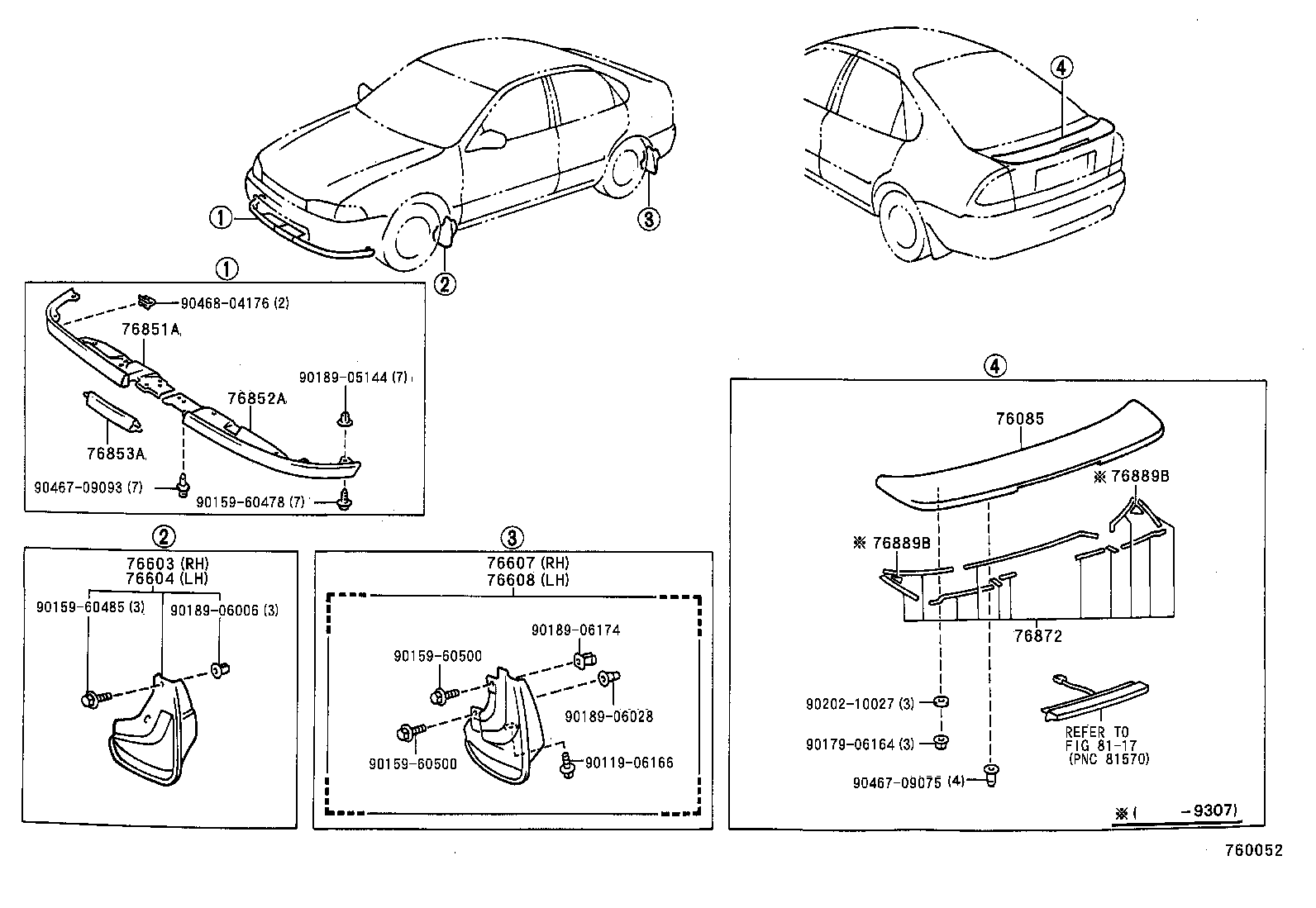

Figure 760051 760051 1992-05 → — Figure 760052 760052 1992-05 → —

Part groups

PNCDescription
76085 Spoiler Sub-assy, Rear
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76851A Cover, Front Spoiler, RH
76852A Cover, Front Spoiler, LH
76853A Retainer, Front Spoiler, Upper NO.1
76865A Retainer, Side Mudguard
76866 Retainer, Rear Spoiler, NO.2
76867 Retainer, Rear Spoiler Side, RH
76868 Retainer, Rear Spoiler Side, LH
76871B Cover, Rear Spoiler
76872 Protector, Rear Spoiler, NO.1
76872B Protector, Rear Spoiler, Center
76881 Protector, Rear Spoiler Side, NO.1 RH
76882 Protector, Rear Spoiler Side, NO.1 LH
76885 Retainer, Rear Spoiler, NO.5
76886 Retainer, Rear Spoiler, NO.6
76887 Seal, Rear Spoiler
76887B Protector, Rear Spoiler Side, NO.2
76889B Seal, Rear Spoiler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
