Toyota Corolla HB/LB

1992-05 → 1997-10 · chassis AE10#,EE100 · catalogue 153330 · General

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

25 part groups · 14 illustrations

Illustrations

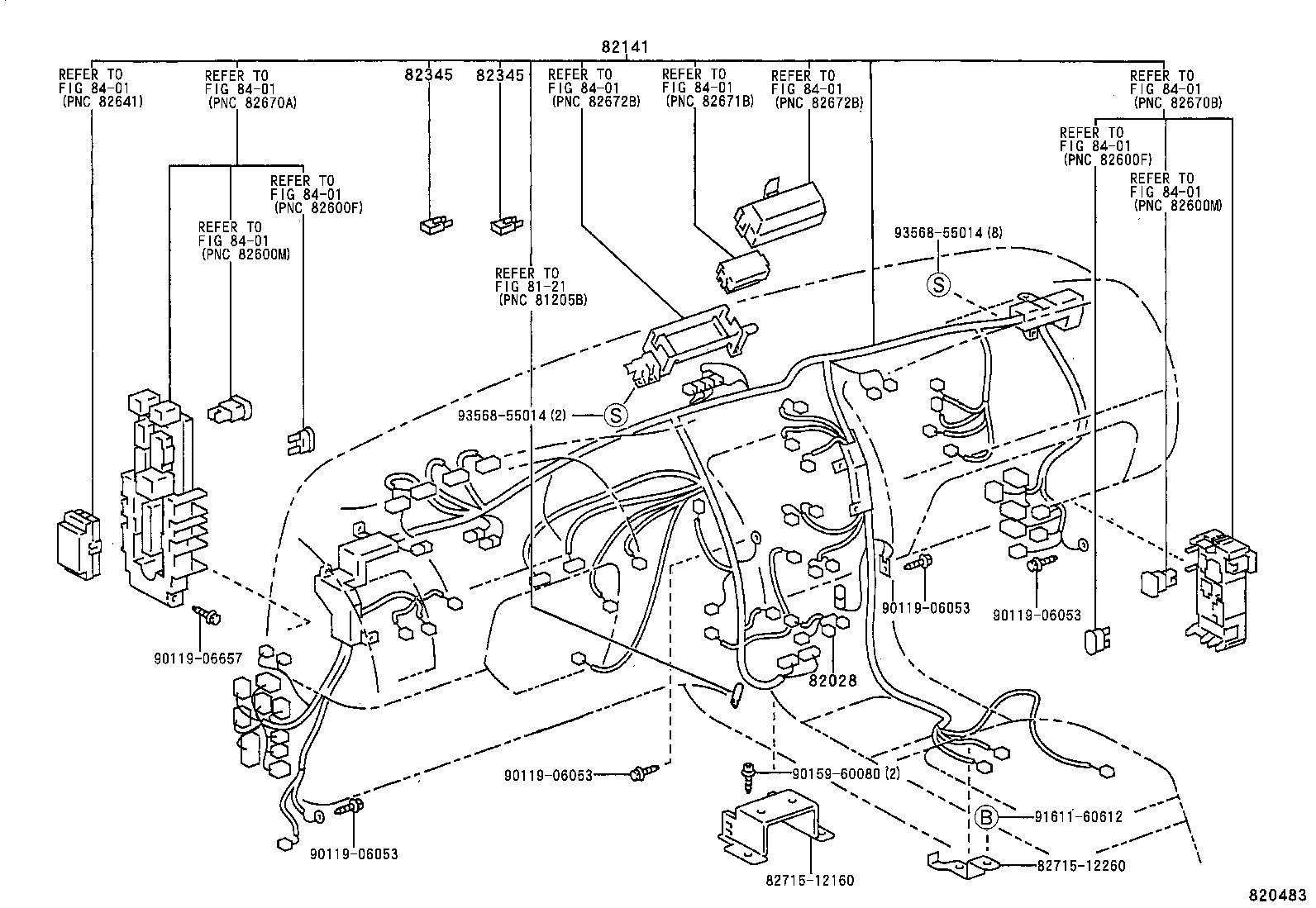

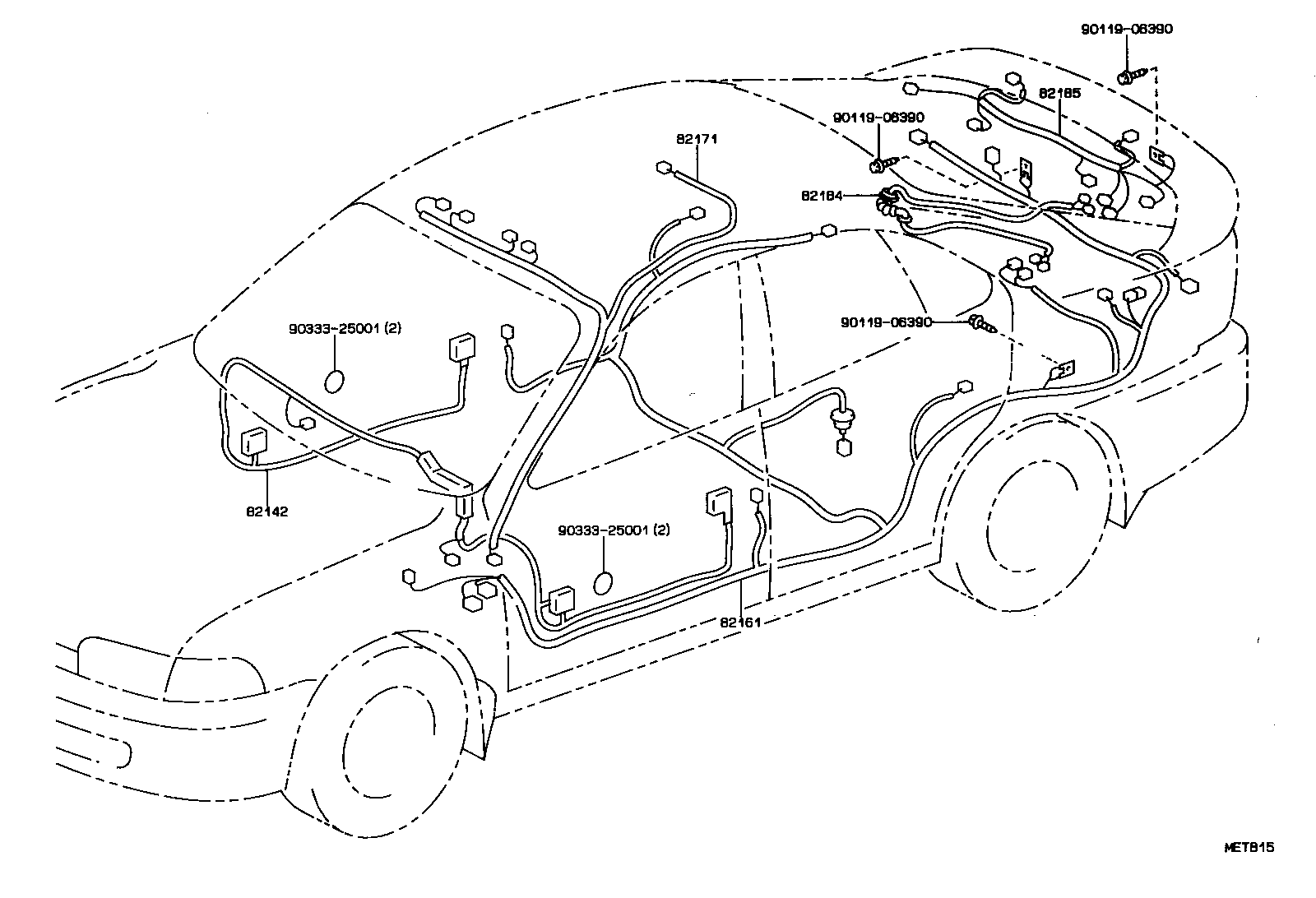

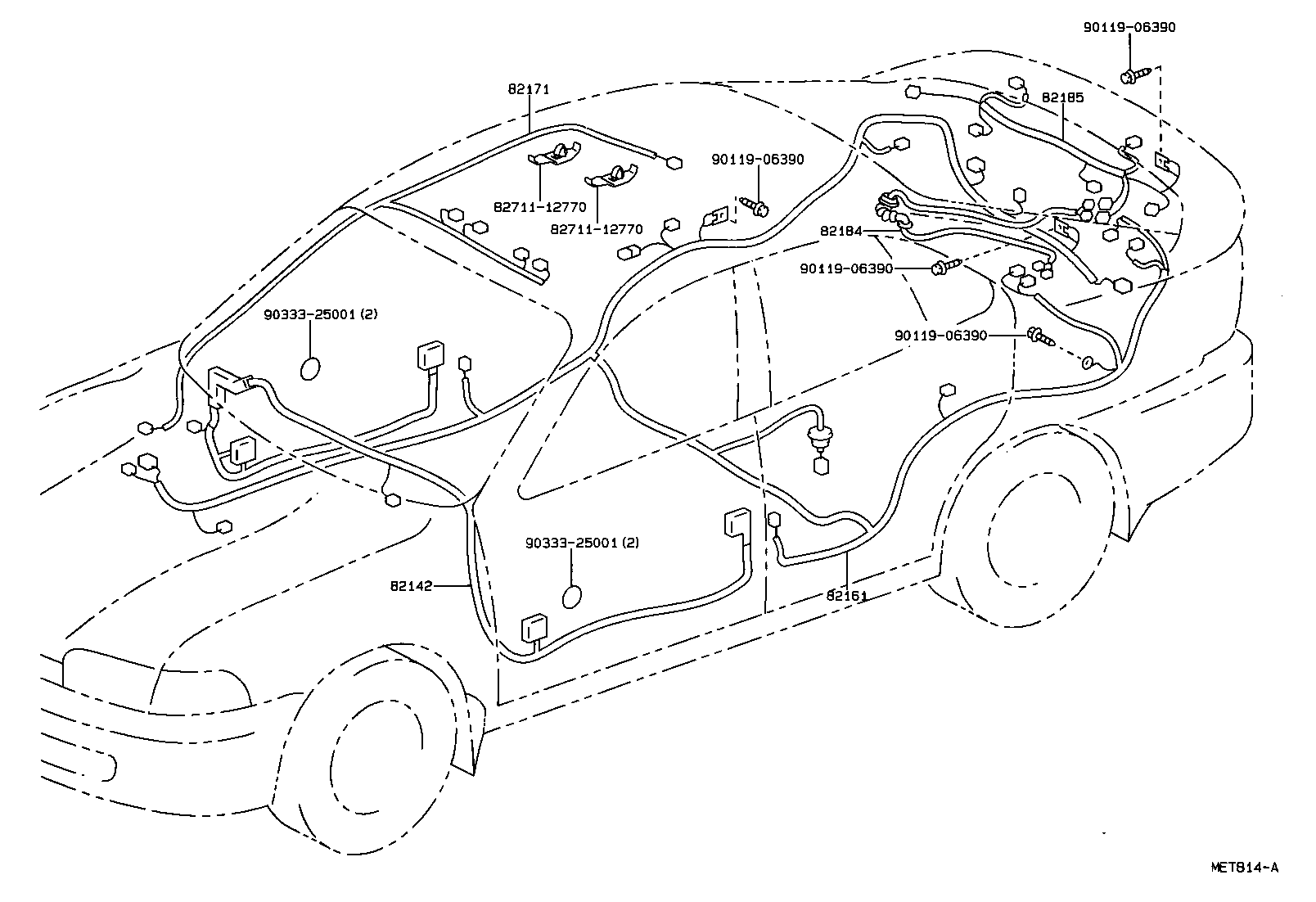

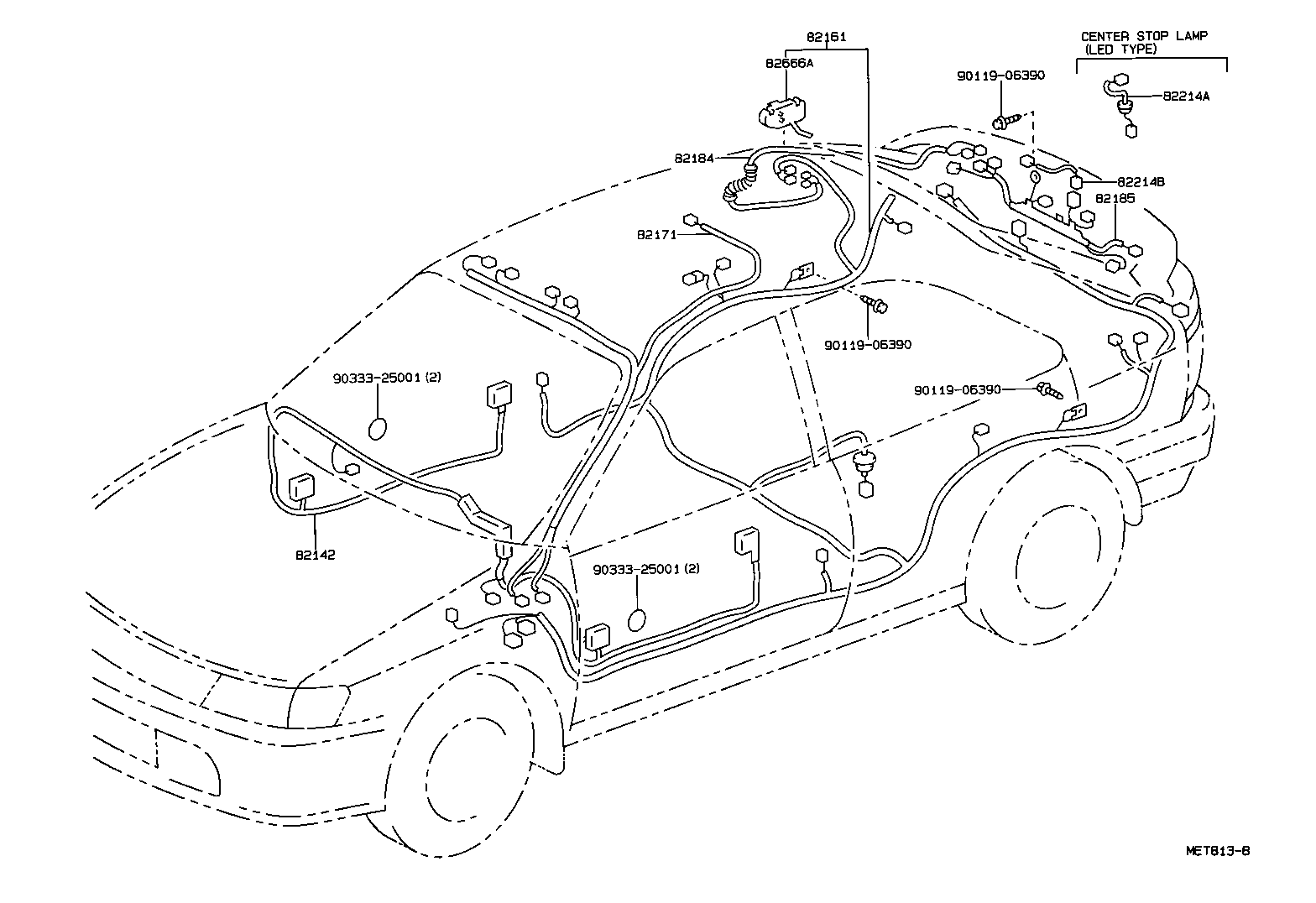

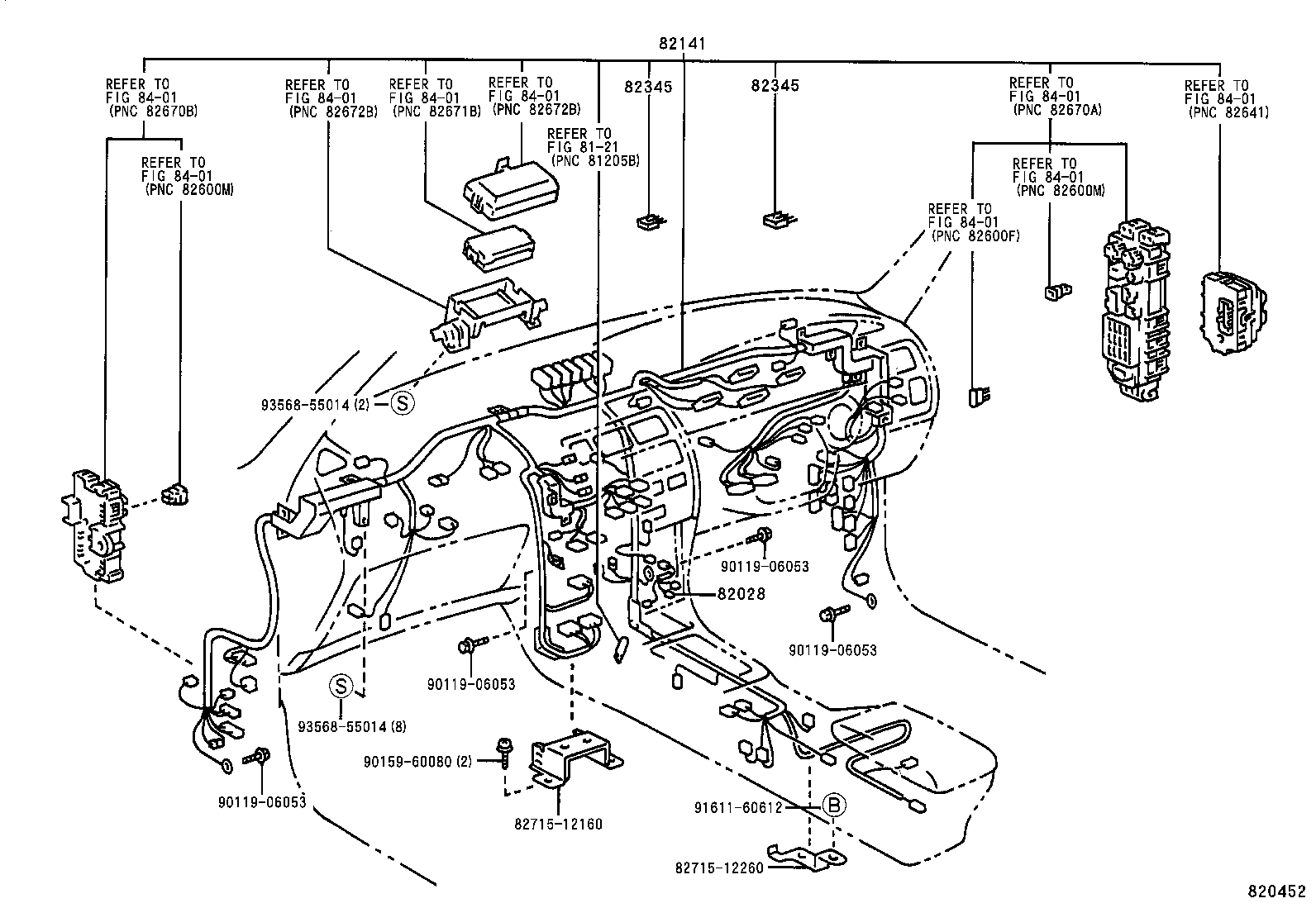

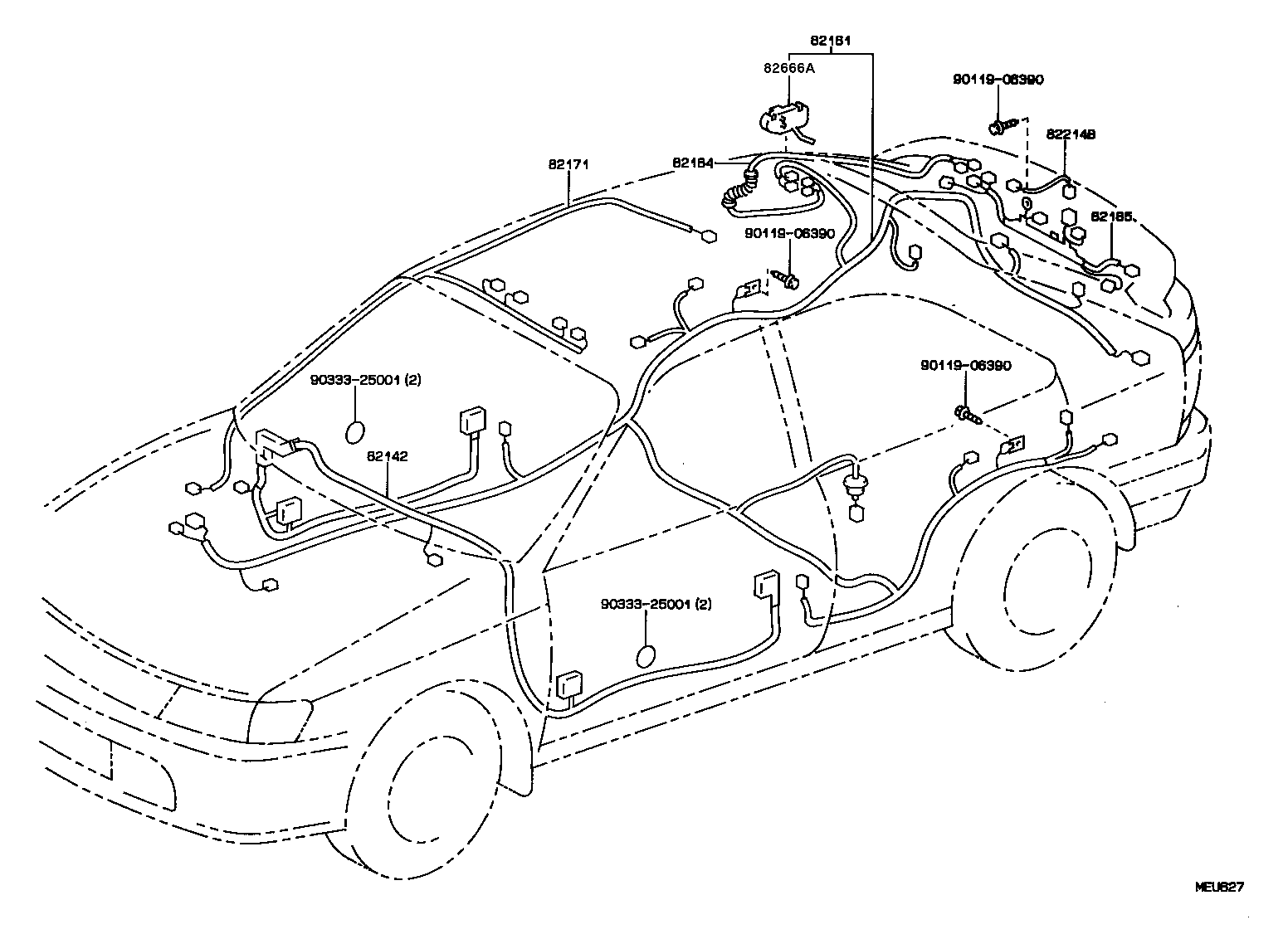

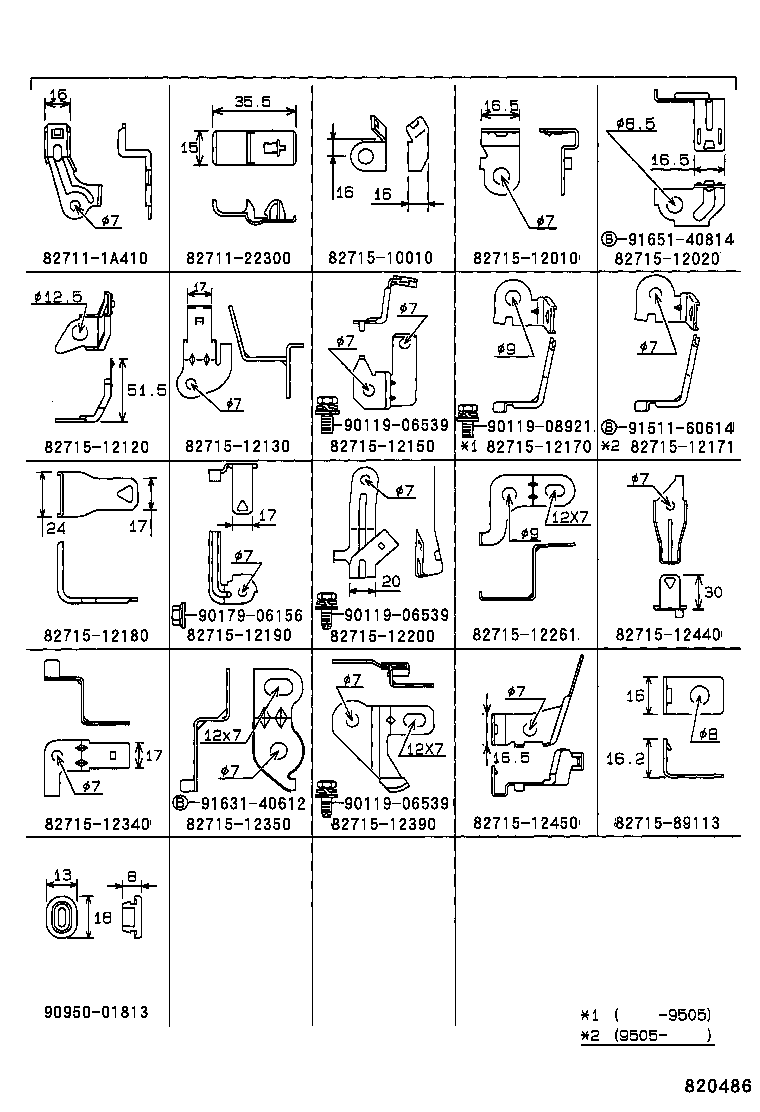

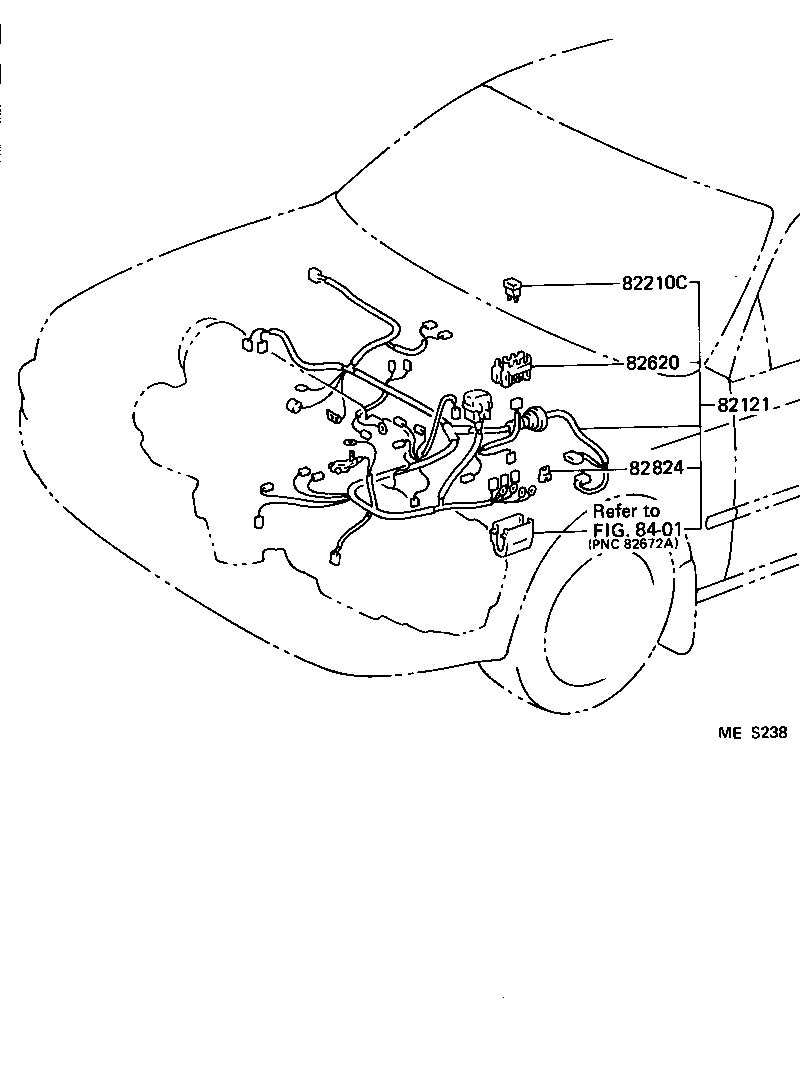

Figure MET811A MET811A 1992-05 → — Figure 820469 820469 1992-05 → — Figure 820480 820480 1992-05 → — Figure MES238 MES238 1992-05 → — Figure 820486 820486 1992-05 → — Figure 820452 820452 1992-05 → — Figure 820483 820483 1992-05 → — Figure MES241 MES241 1992-05 → — Figure MEU627 MEU627 1992-05 → — Figure MET813B MET813B 1992-05 → — Figure MET814A MET814A 1992-05 → — Figure MET815 MET815 1992-05 → — Figure 820488 820488 1992-05 → — Figure 820468 820468 1992-05 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82028 Wiring Sub-assy, Cowl
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82210C Fusible Link
82214A Wire, Lamp
82214B Wire, Lamp, Rear
82345 Diode
82620 Block Assy, Fusible Link
82666A Holder, Connector NO.2
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82824 Connector, Wiring Harness
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
