Toyota Corolla HB/LB

1992-05 → 1997-10 · chassis AE10#,EE100 · catalogue 153330 · General

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

16 part groups · 2 illustrations

Illustrations

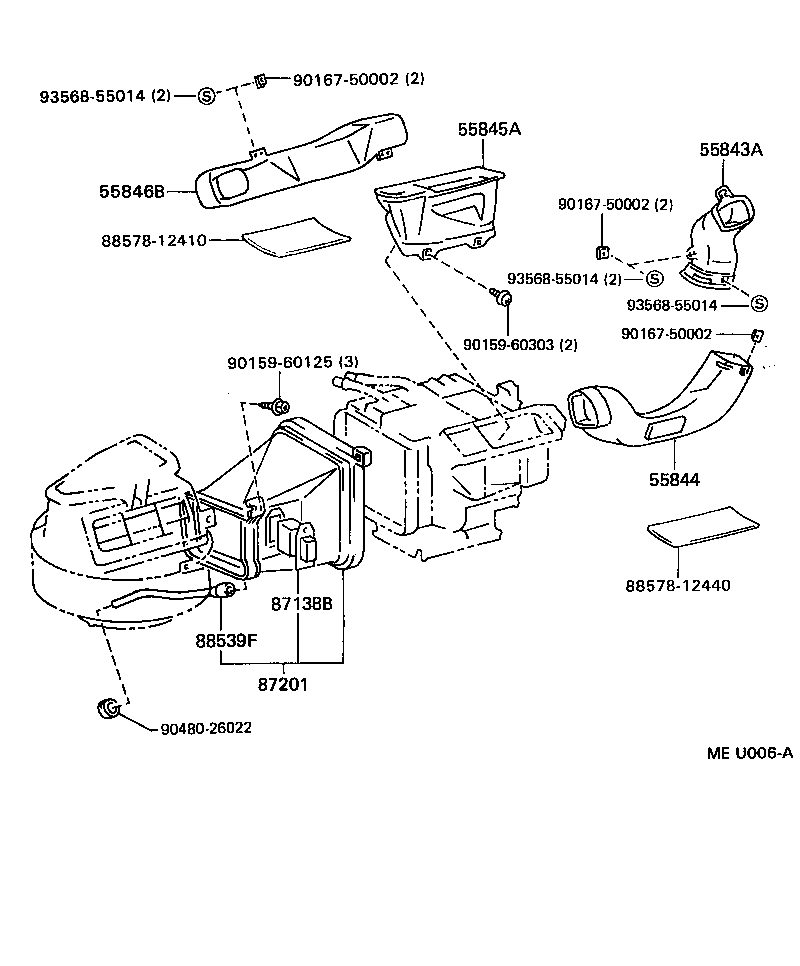

Figure MES186B MES186B 1992-05 → — Figure MEU006A MEU006A 1992-05 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846B Duct, Heater TO Register, NO.4
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55916A Lever, Cooler Control
55917A Lever, Temperature Damper Control
87138B Resistor, Heater Blower
87201 Duct Sub-assy, Air, NO.1
87284 Resistor Sub-assy, Variable
88539F Hose, Drain
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
