Toyota Corolla LB

1997-05 → 2001-09 · chassis AE11#,EE110 · catalogue 153340 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

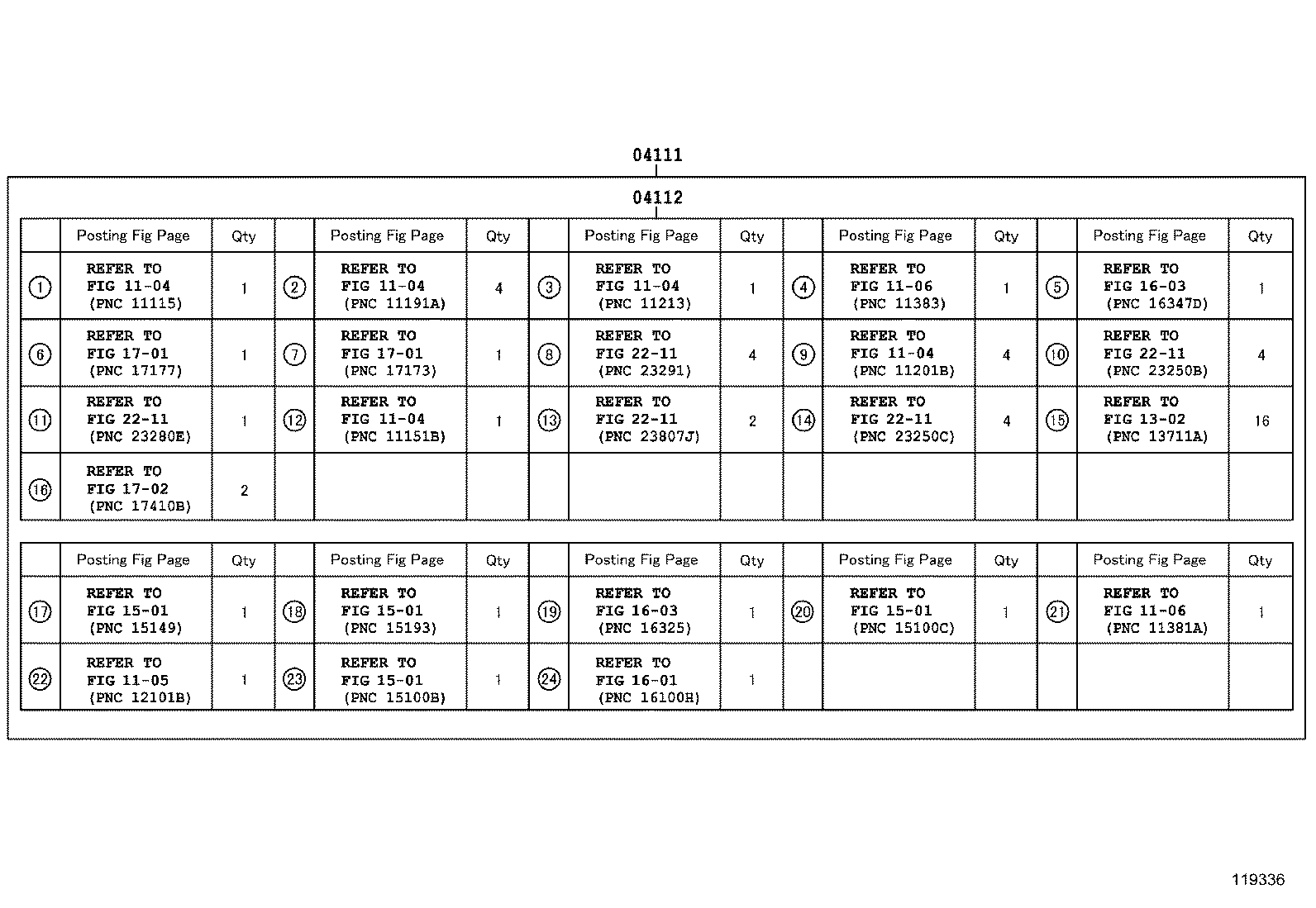

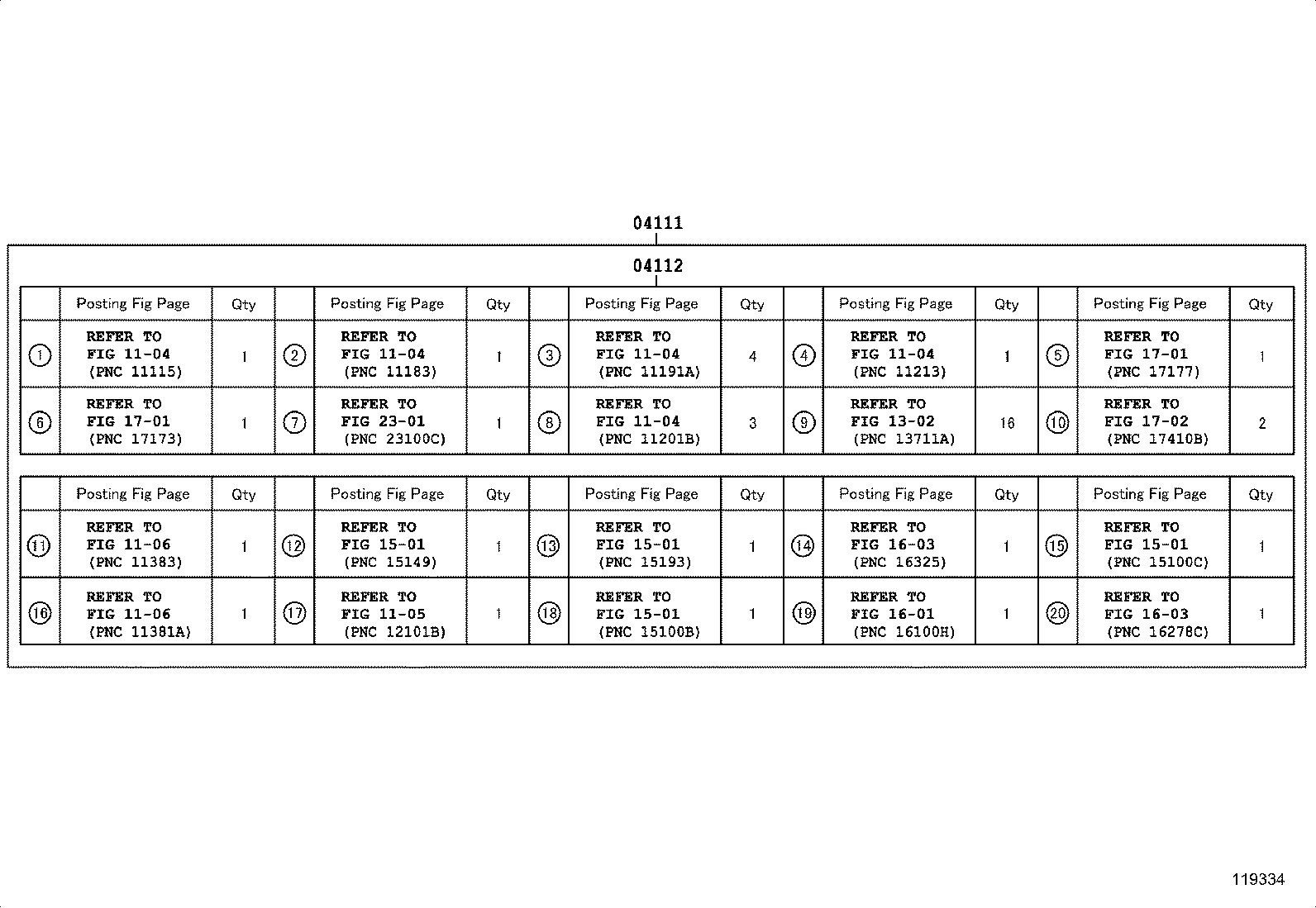

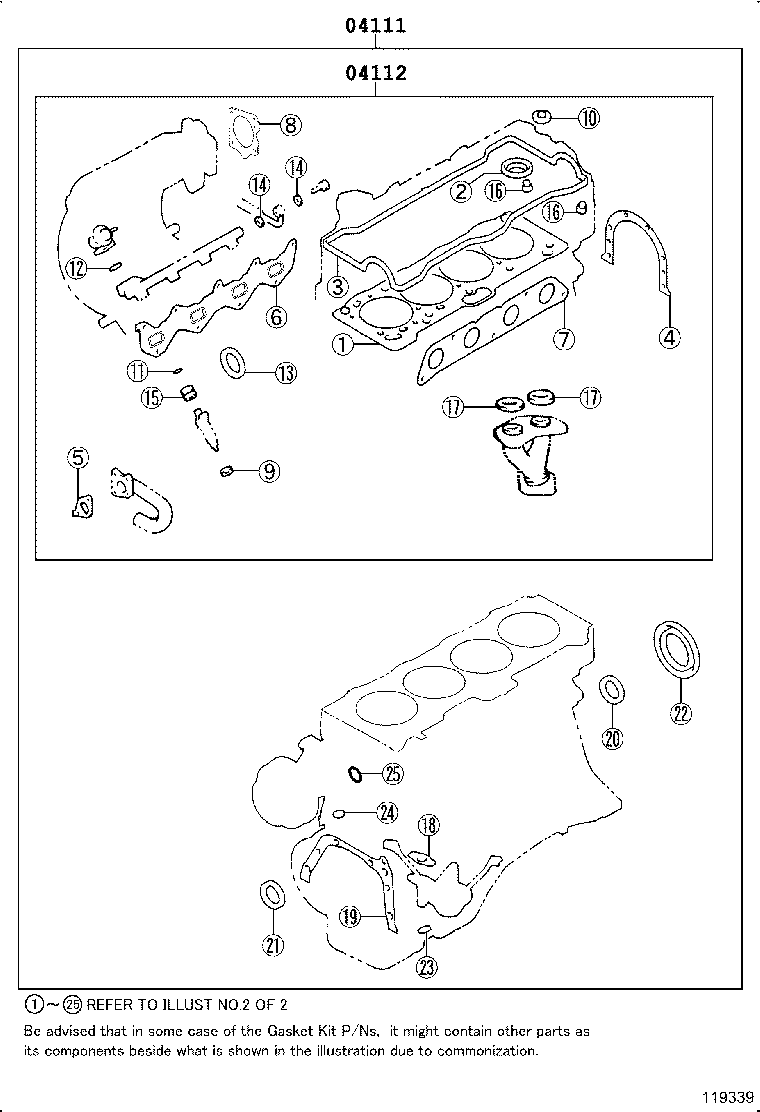

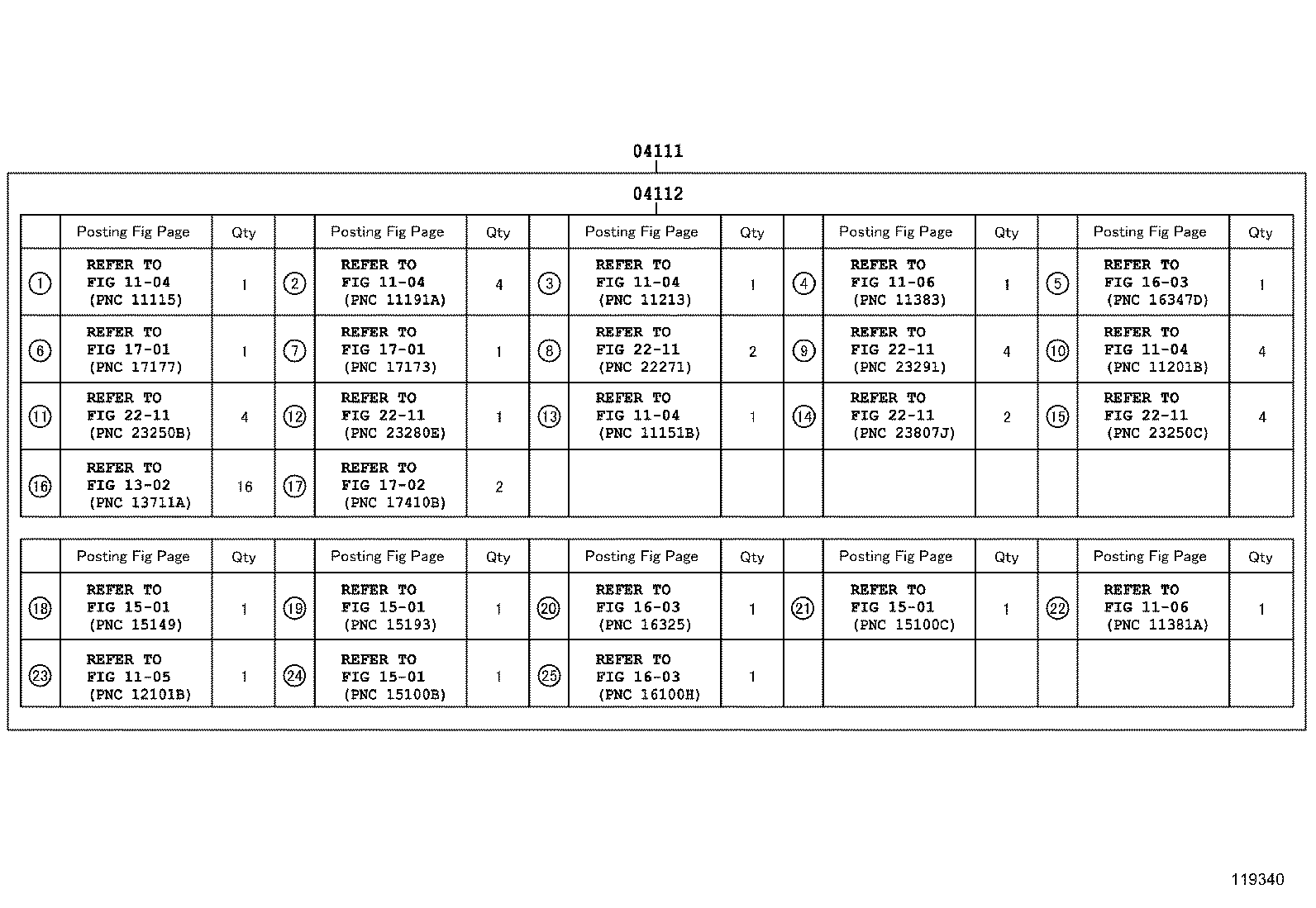

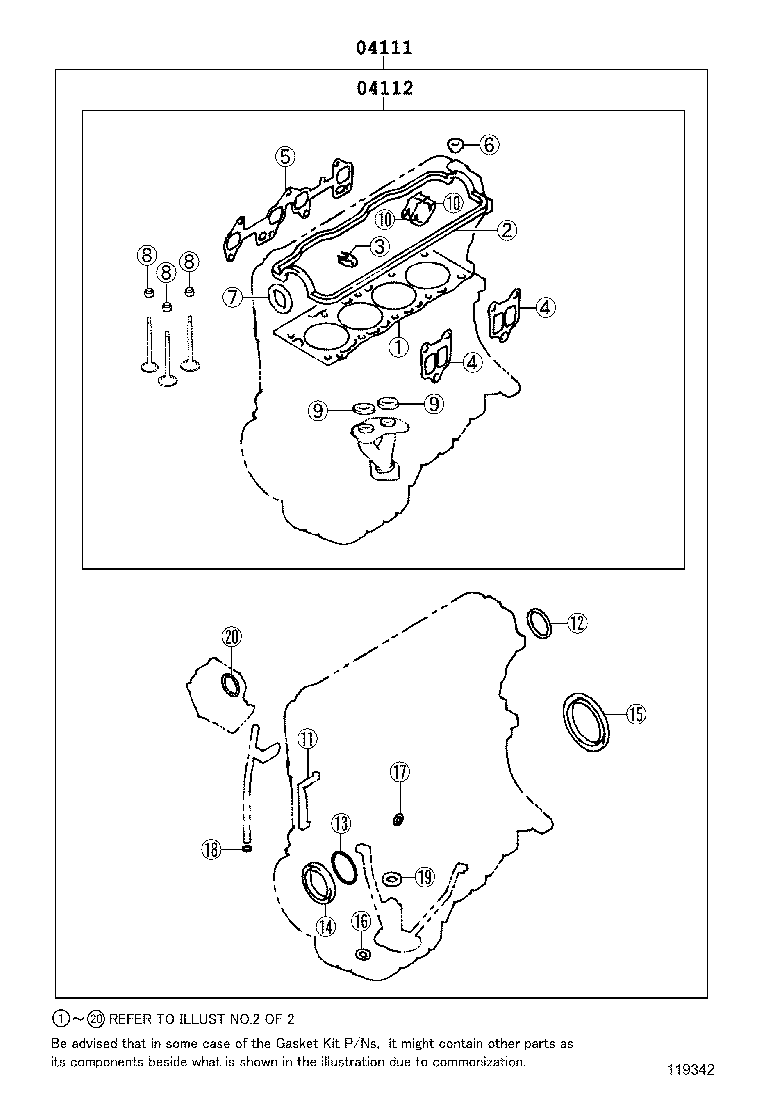

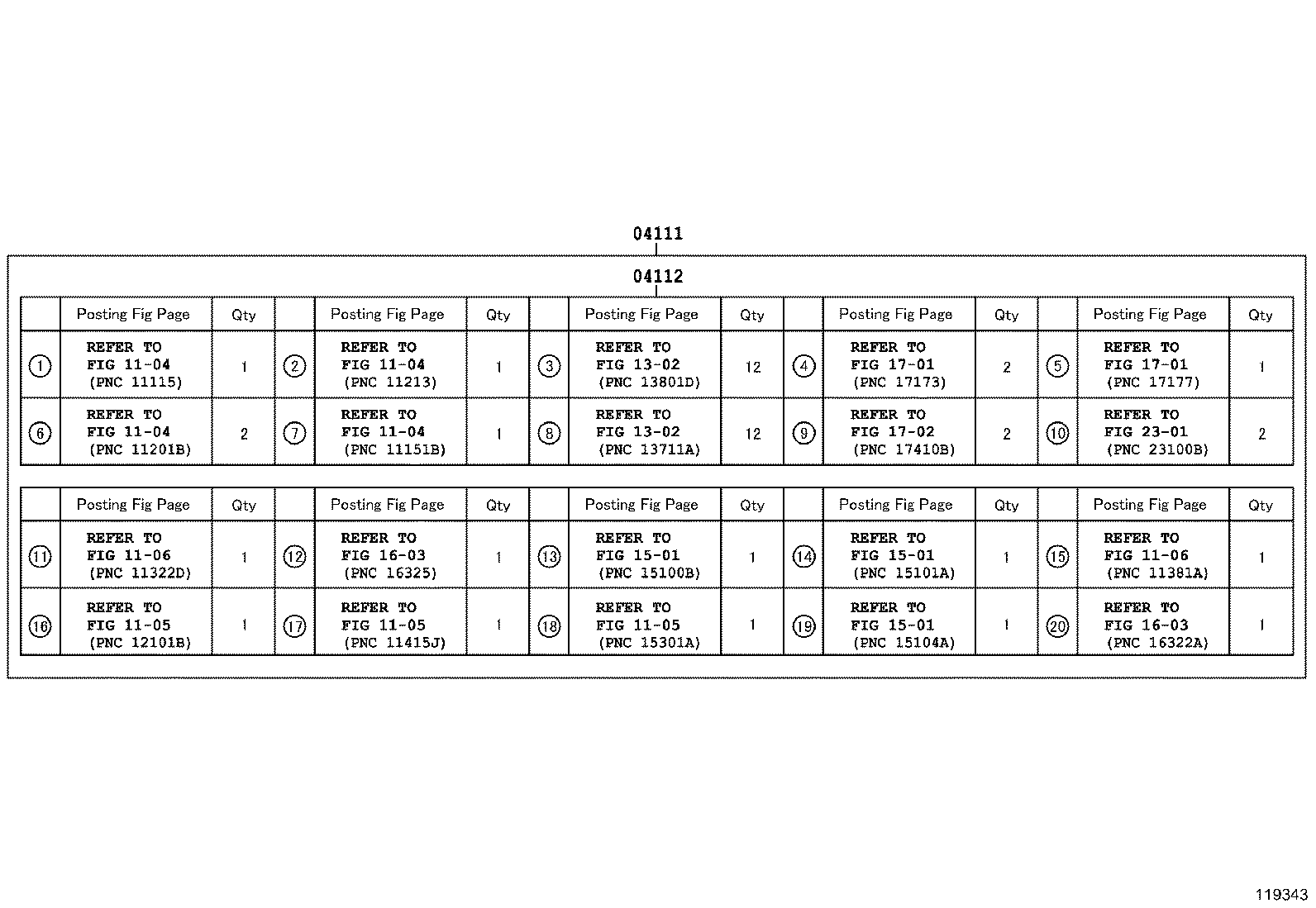

Figure 119285 119285 1997-04 → 1999-10 Figure 119334 119334 1997-04 → 1999-10 Figure 119335 119335 1997-04 → — Figure 119336 119336 1997-04 → — Figure 119339 119339 1997-04 → — Figure 119340 119340 1997-04 → — Figure 119342 119342 1997-04 → — Figure 119343 119343 1997-04 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
