Toyota Corolla LB
1997-05 → 2001-09 · chassis AE11#,EE110 · catalogue 153340 · General
Discontinued model
Data version 2002-04

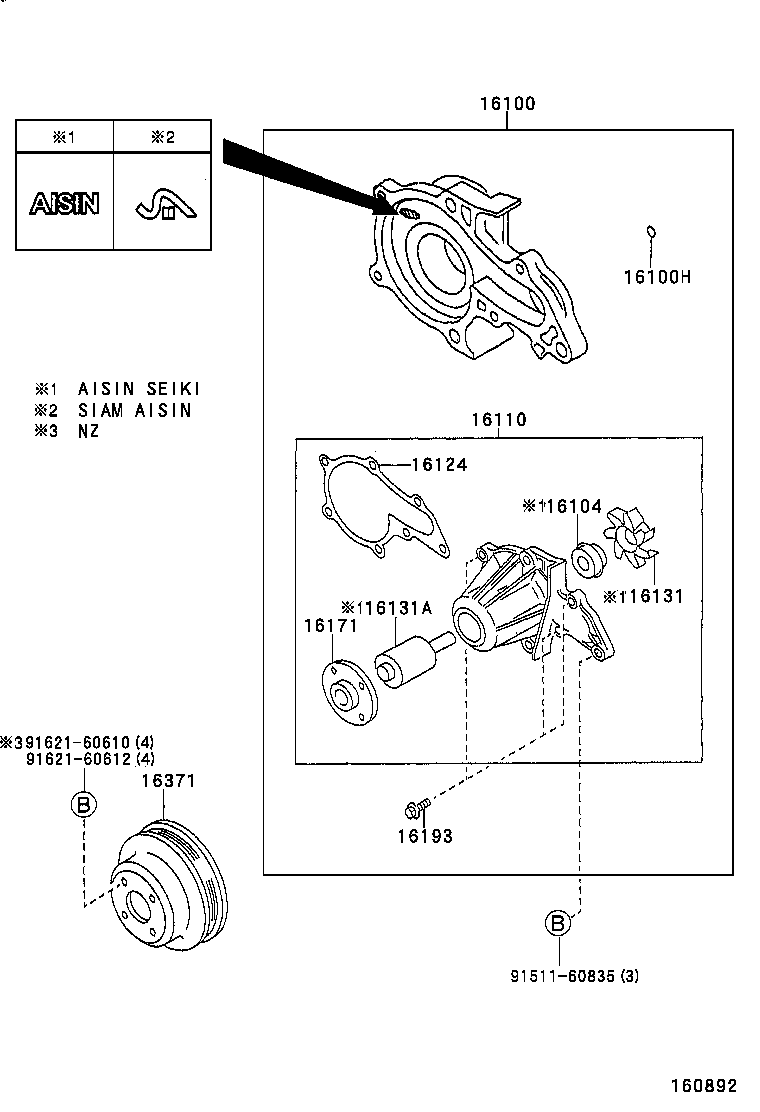

Water Pump
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04161 | Pump Kit, Water |
| 16100 | Pump Assy, Engine Water |
| 16100H | Ring, O(FOR WATER PUMP) |
| 16104 | Seal Set, Water Pump |
| 16110 | Pump Assy, Water, W/O Coupling |
| 16124 | Gasket, Water Pump Cover |
| 16131 | Rotor, Water Pump |
| 16131A | Bearing, Water Pump |
| 16171 | Seat, Water Pump Pulley |
| 16173 | Pulley, Water Pump |
| 16193 | Bolt, Stud(FOR WATER PUMP COVER) |
| 16371 | Pulley, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
