Toyota Corolla LB

1997-05 → 2001-09 · chassis AE11#,EE110 · catalogue 153340 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

26 part groups · 6 illustrations

Illustrations

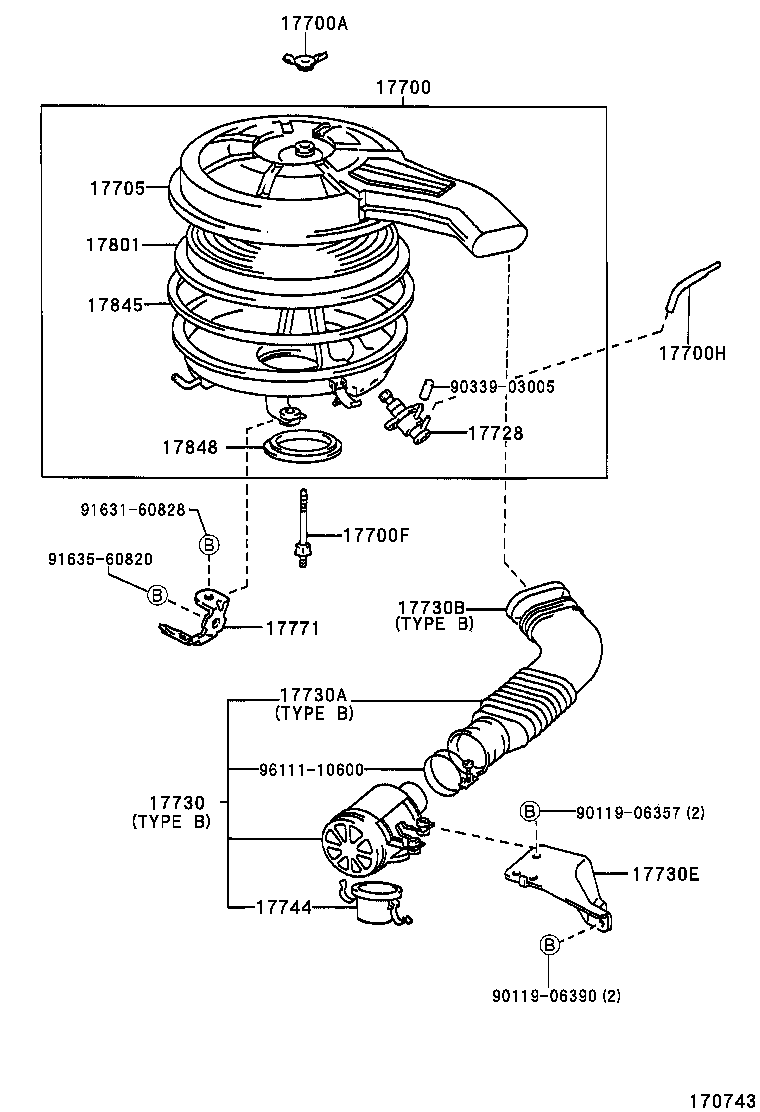

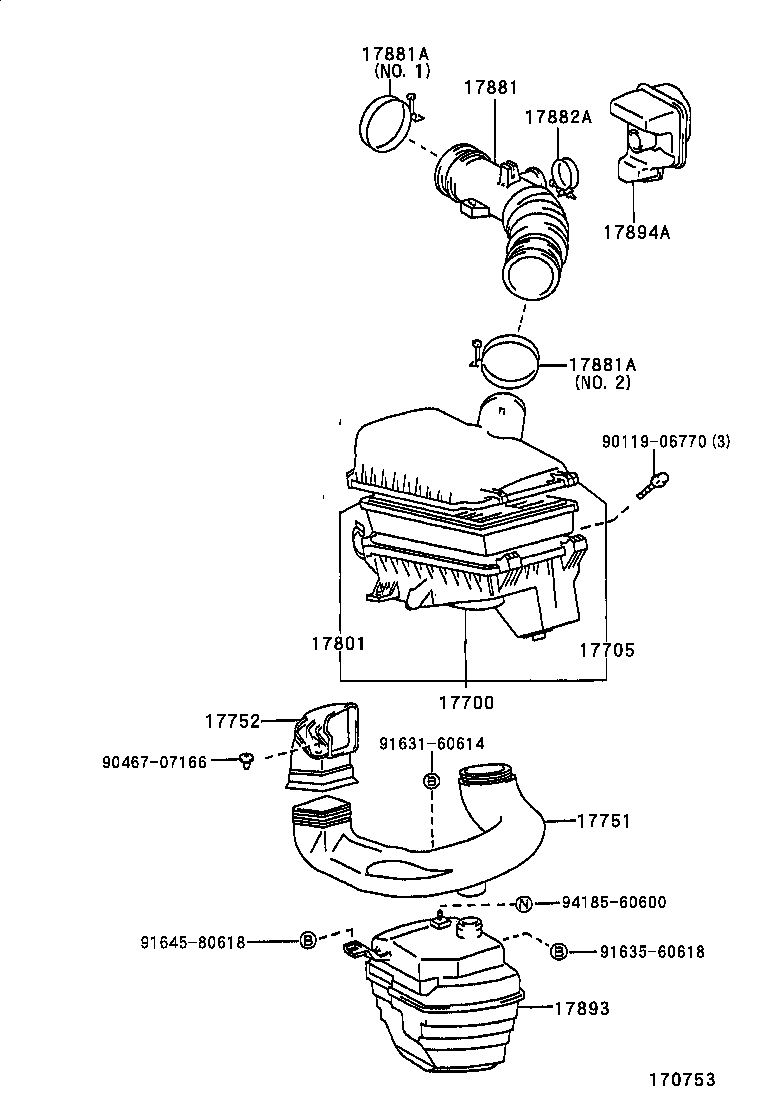

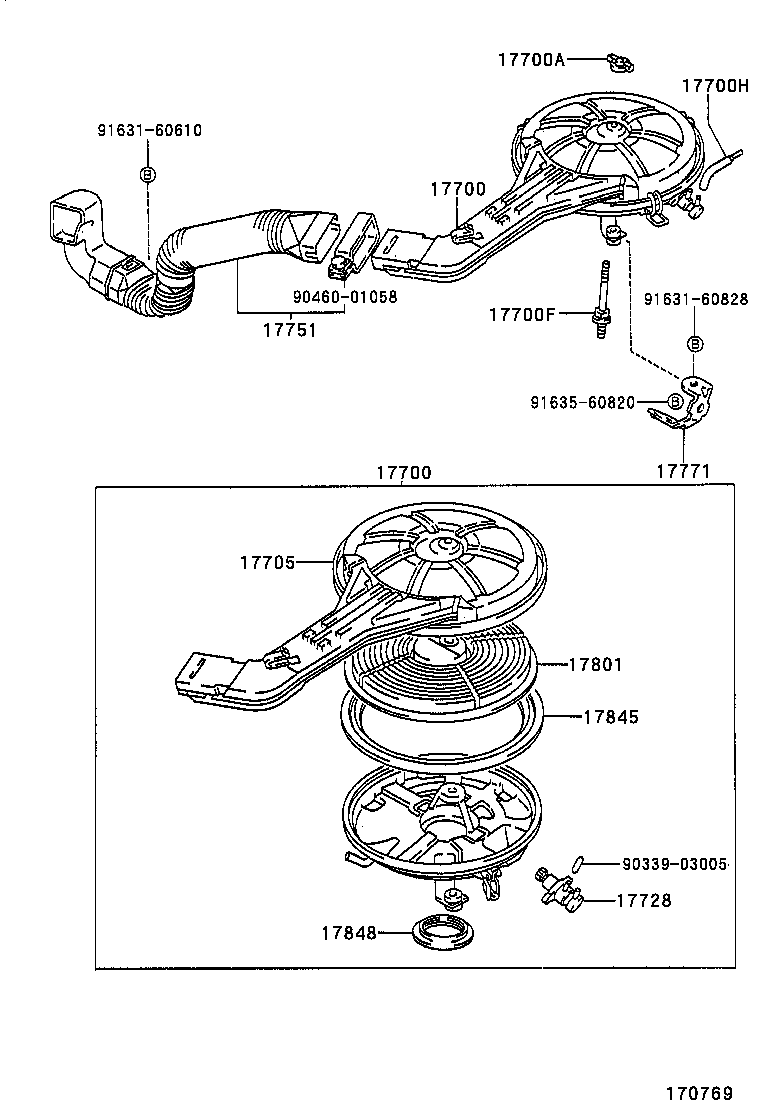

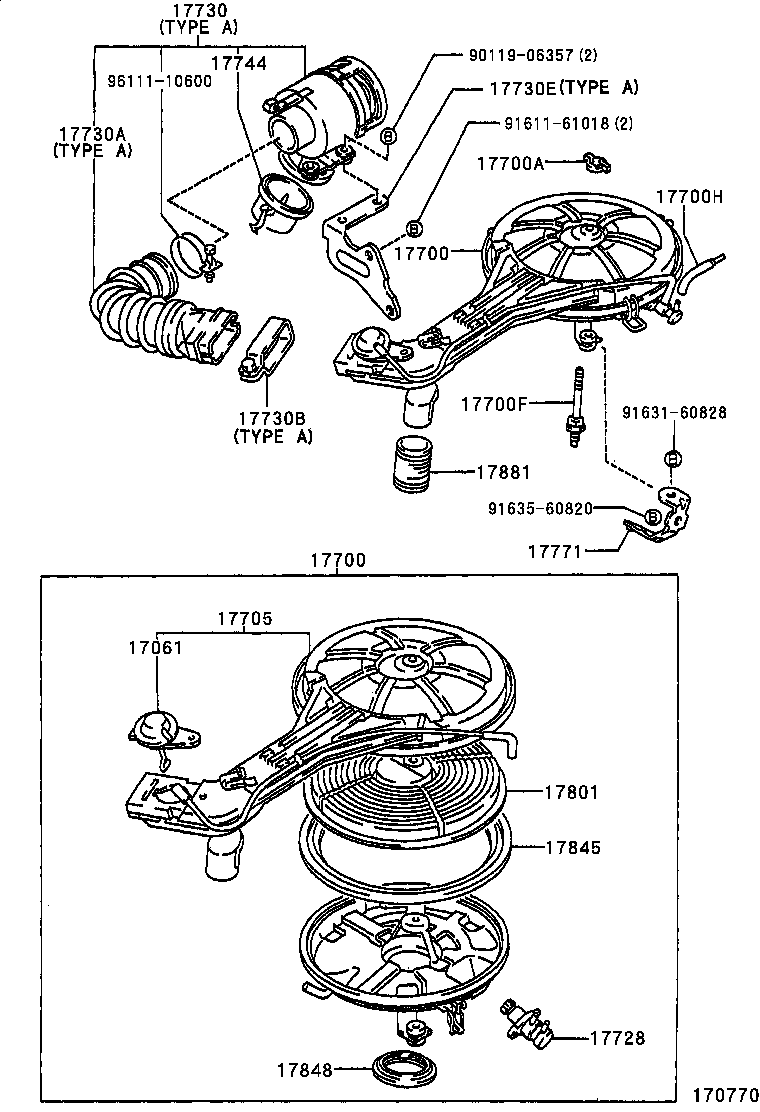

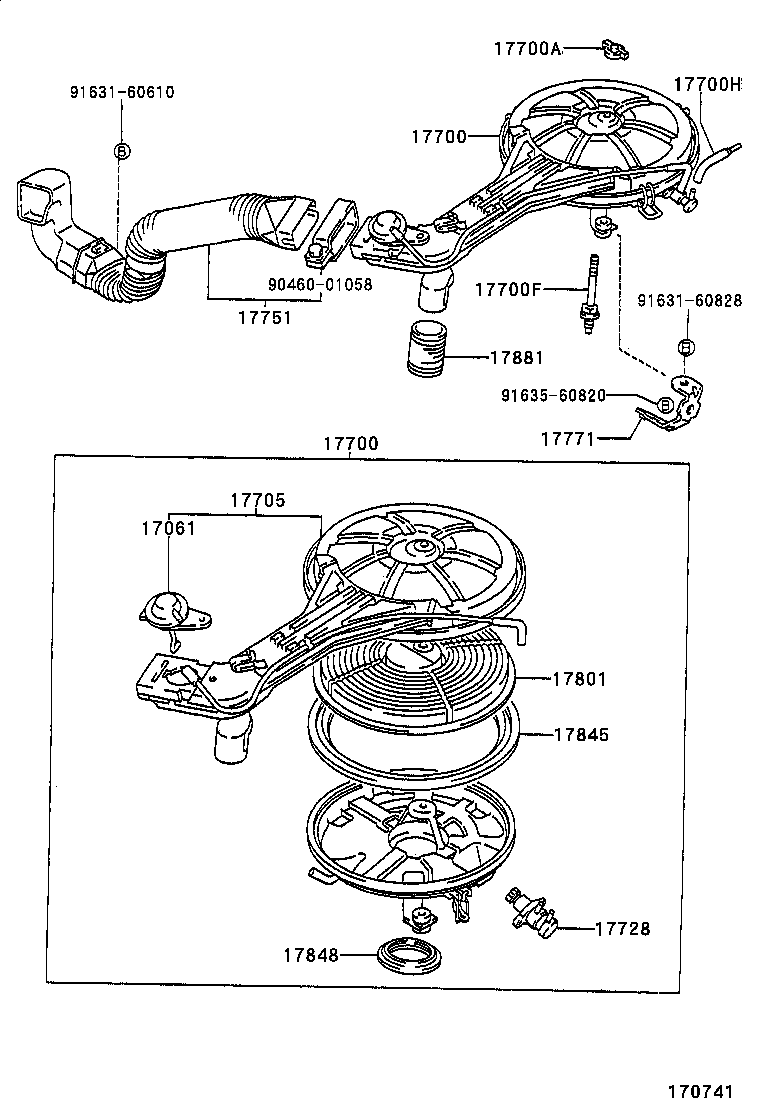

Figure 170728 170728 1997-04 → 1999-10 Figure 170753 170753 1997-04 → — Figure 170769 170769 1997-04 → — Figure 170741 170741 1997-04 → — Figure 170770 170770 1997-04 → — Figure 170743 170743 1997-04 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17700H Hose, Air
17705 Cap Sub-assy, Air Cleaner
17728 Valve, Thermostatic
17730 Precleaner Assy, Air W/Hose
17730A Hose, Precleaner
17730B Clamp, Hose(FOR PRECLEANER HOSE)
17730C Case, Precleaner
17730E Bracket, Precleaner, NO.1
17744 Cup, Precleaner
17750 Cover Assy, Air Cleaner Inlet, Seal
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17771 Bracket, Air Cleaner Inlet Duct
17801 Element Sub-assy, Air Cleaner Filter
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893 Resonator, Intake Air
17894A Resonator, Intake Air, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
