Toyota Corolla LB

1997-05 → 2001-09 · chassis AE11#,EE110 · catalogue 153340 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

12 part groups · 5 illustrations

Illustrations

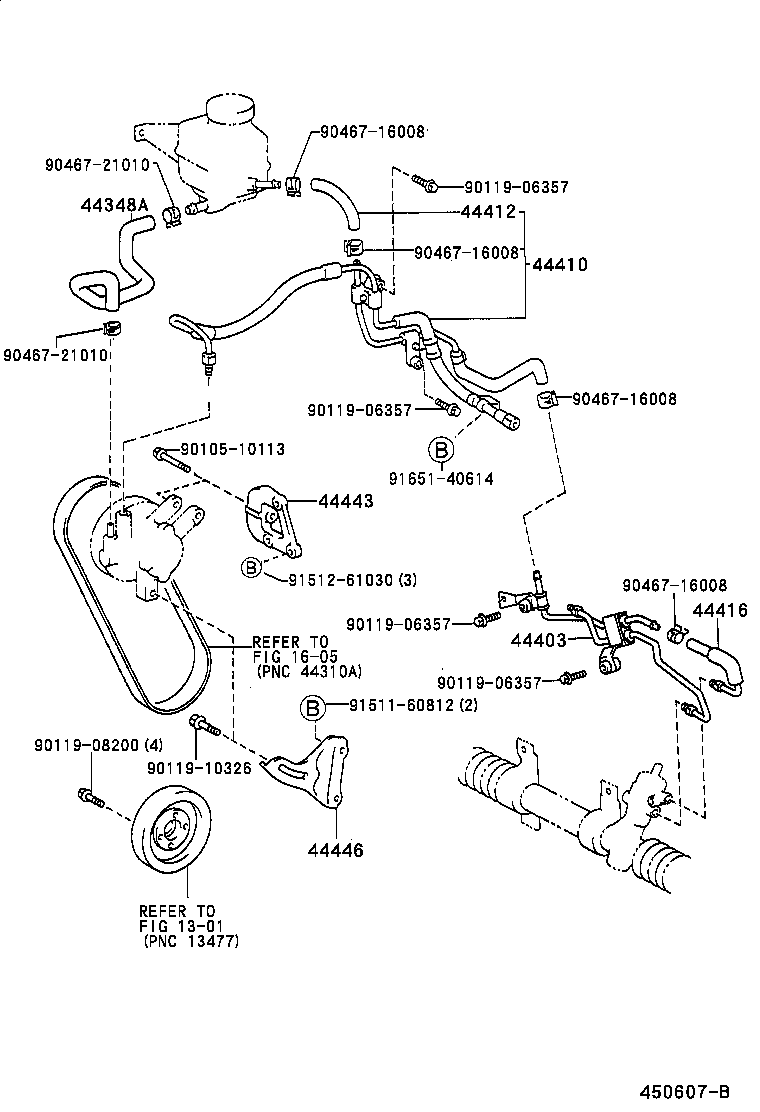

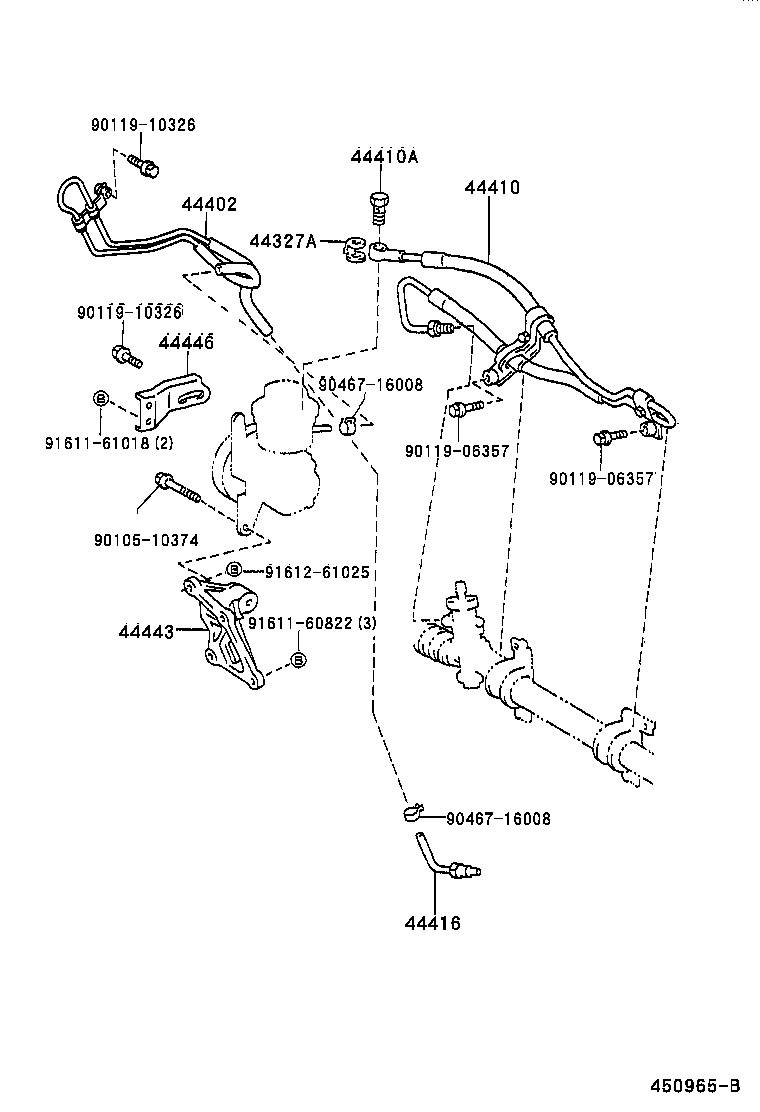

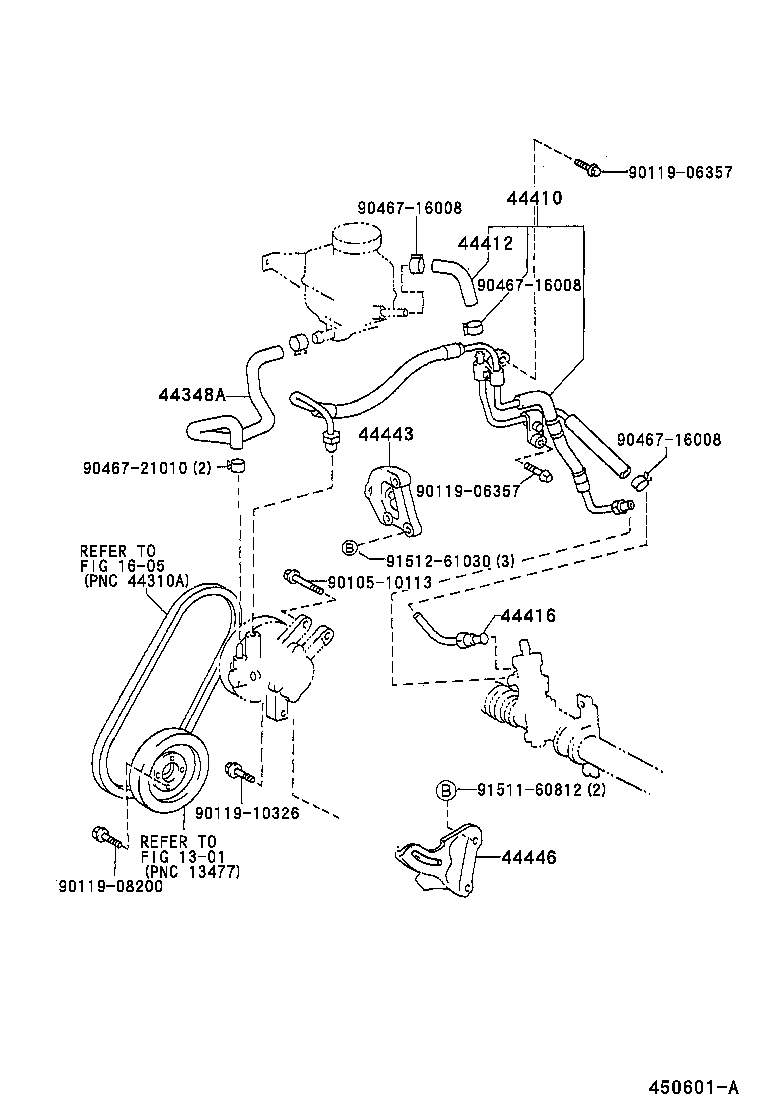

Figure 450599A 450599A 1997-04 → — Figure 450600B 450600B 1997-04 → — Figure 450601A 450601A 1997-04 → — Figure 450607B 450607B 1997-04 → — Figure 450965B 450965B 1997-10 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44403 Tube Sub-assy, Pressure Feed, NO.1
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410G Ring, O(FOR PRESSURE FEED TUBE)
44412 Hose, Return
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416D Ring, O(FOR RETURN TUBE)
44443 Bracket, Pump
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
