Toyota Corolla LB

1997-05 → 2001-09 · chassis AE11#,EE110 · catalogue 153340 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

11 part groups · 2 illustrations

Illustrations

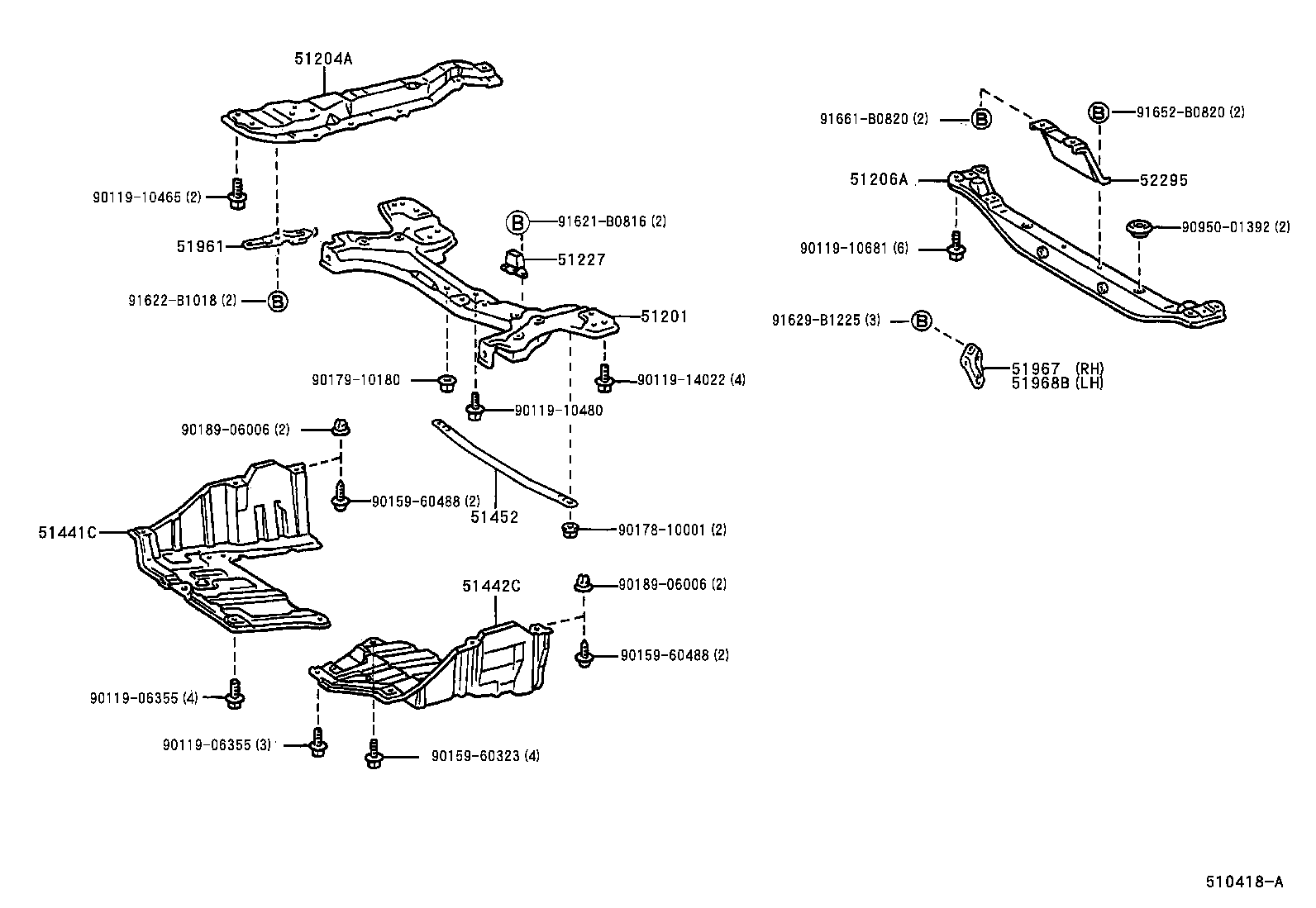

Figure 510153D 510153D 1997-04 → — Figure 510418A 510418A 1998-08 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51206A Member Sub-assy, Rear Suspension
51227 Weight, Front Suspension Member Damper
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51452 Brace, Front Crossmember TO Front Suspension Member
51961 Hook, NO.1
51967 Hook, Transport, Rear
51968B Hook, Transport, Rear LH
52295 Brace, Rear Suspension Member, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
