Toyota Corolla LB
1997-05 → 2001-09 · chassis AE11#,EE110 · catalogue 153340 · General
Discontinued model
Data version 2002-04

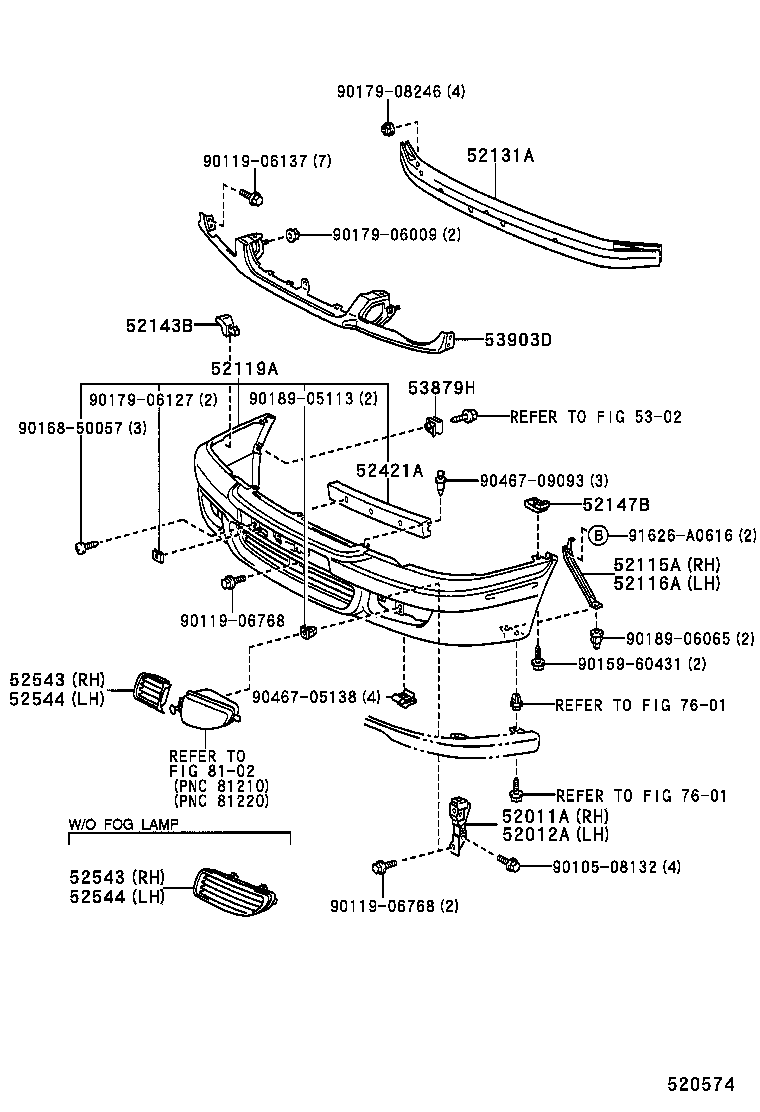

Front Bumper & Bumper Stay
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52011A | Arm Sub-assy, Front Bumper, RH |
| 52012A | Arm Sub-assy, Front Bumper, LH |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52129B | Cover, Front Bumper, Lower |
| 52131A | Reinforcement, Front Bumper |
| 52143B | Bracket, Front Bumper Side |
| 52147B | Bracket, Front Bumper Mounting |
| 52421A | Pad, Front Bumper |
| 52543 | Seal, Front Bumper Side, RH |
| 52544 | Seal, Front Bumper Side, LH |
| 53879H | Retainer, Front Fender Liner |
| 53903D | Extension Sub-assy, Front Bumper, Upr |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
