Toyota Corolla LB
1997-05 → 2001-09 · chassis AE11#,EE110 · catalogue 153340 · General
Discontinued model
Data version 2002-04

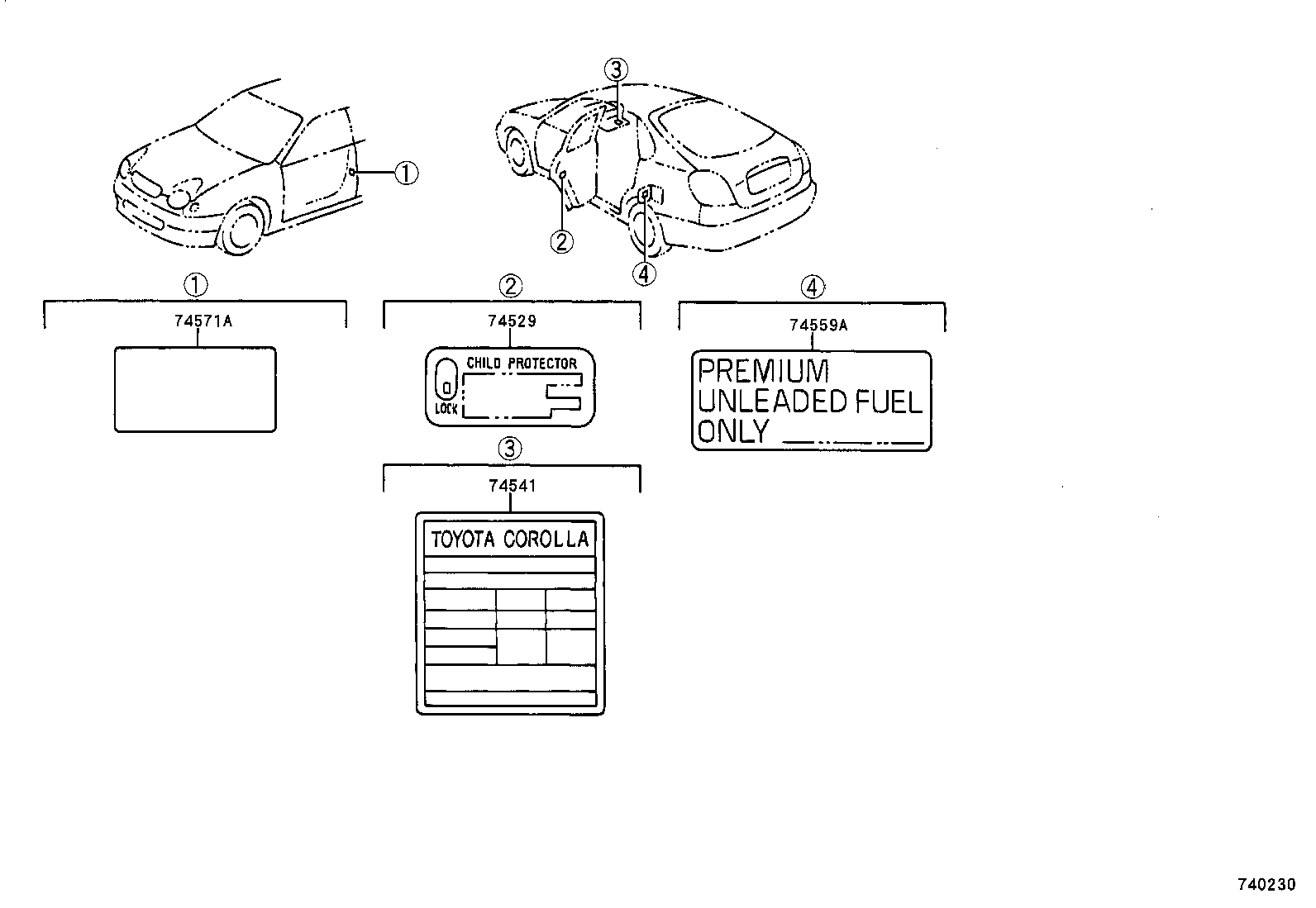

Caution Plate (EXTERIOR & INTERIOR)
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11278B | Label, Engine Emission Compliance Information |
| 11291B | Plate, Engine Name |
| 11293C | Label, Tune-up Specification Information |
| 11296C | Label, Engine Service Information |
| 11298B | Label, Emission Control Information |
| 13564 | Label, Timing Belt Replacement Information |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |
| 74541 | Plate, Tire Pressure Caution |
| 74559A | Plate, Fuel Caution |
| 74571A | Film, Label Cover |
| 88723E | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
