Toyota Corolla LB

1997-05 → 2001-09 · chassis AE11#,EE110 · catalogue 153340 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

16 part groups · 2 illustrations

Illustrations

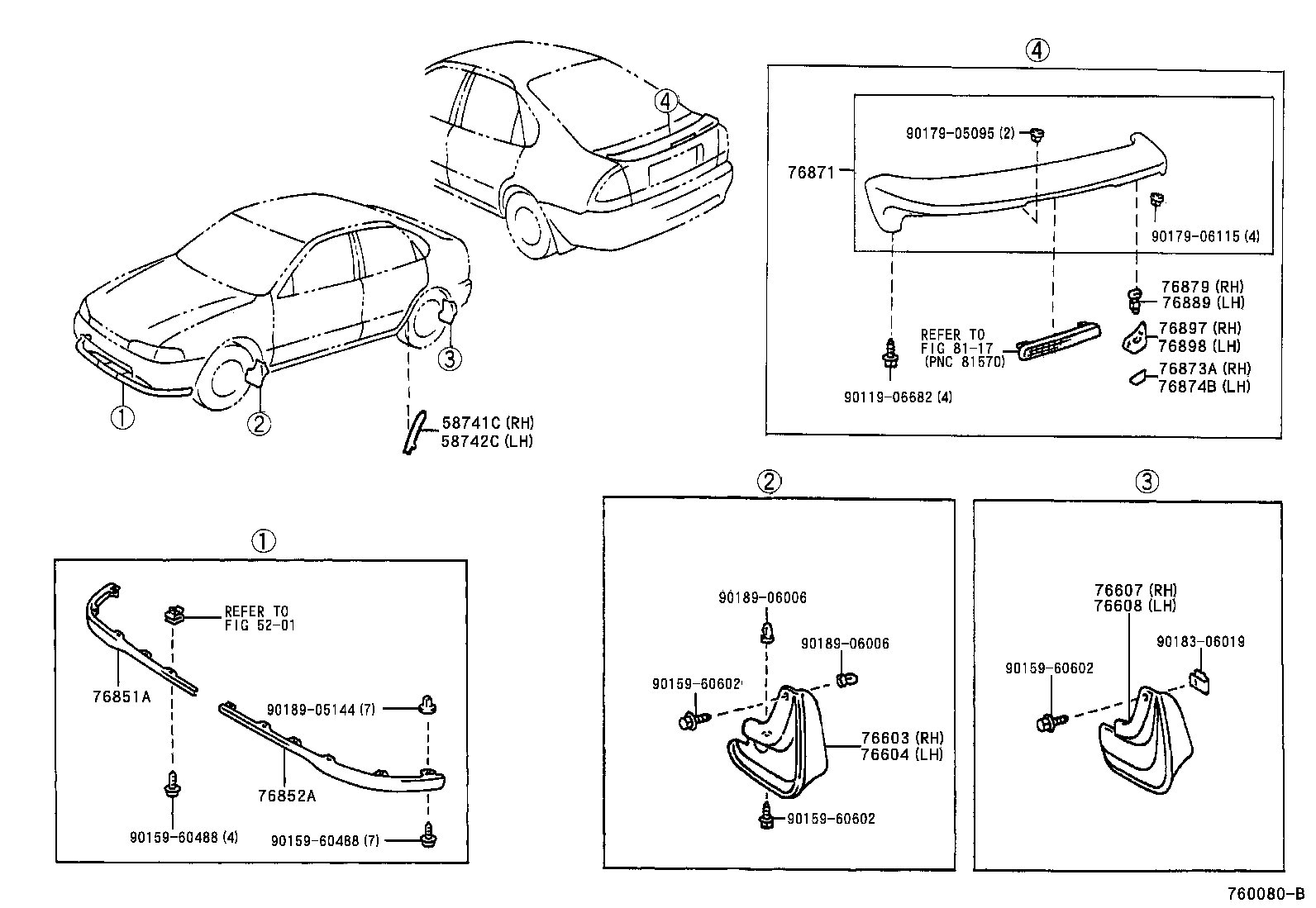

Figure 760078A 760078A 1997-04 → 1999-10 Figure 760080B 760080B 1999-10 → —

Part groups

PNCDescription
58741C Protector, Quarter Panel, RH
58742C Protector, Quarter Panel, LH
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76851A Cover, Front Spoiler, RH
76852A Cover, Front Spoiler, LH
76853A Retainer, Front Spoiler, Upper NO.1
76871 Spoiler, Rear
76873A Protector, Rear Spoiler, RH
76874B Protector, Rear Spoiler, LH
76879 Clip, Rear Spoiler, NO.1
76889 Clip, Rear Spoiler, NO.2
76897 Protector, Rear Spoiler, Side RH
76898 Protector, Rear Spoiler, Side LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
