Toyota Corolla LB

1997-05 → 2001-09 · chassis AE11#,EE110 · catalogue 153340 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

32 part groups · 13 illustrations

Illustrations

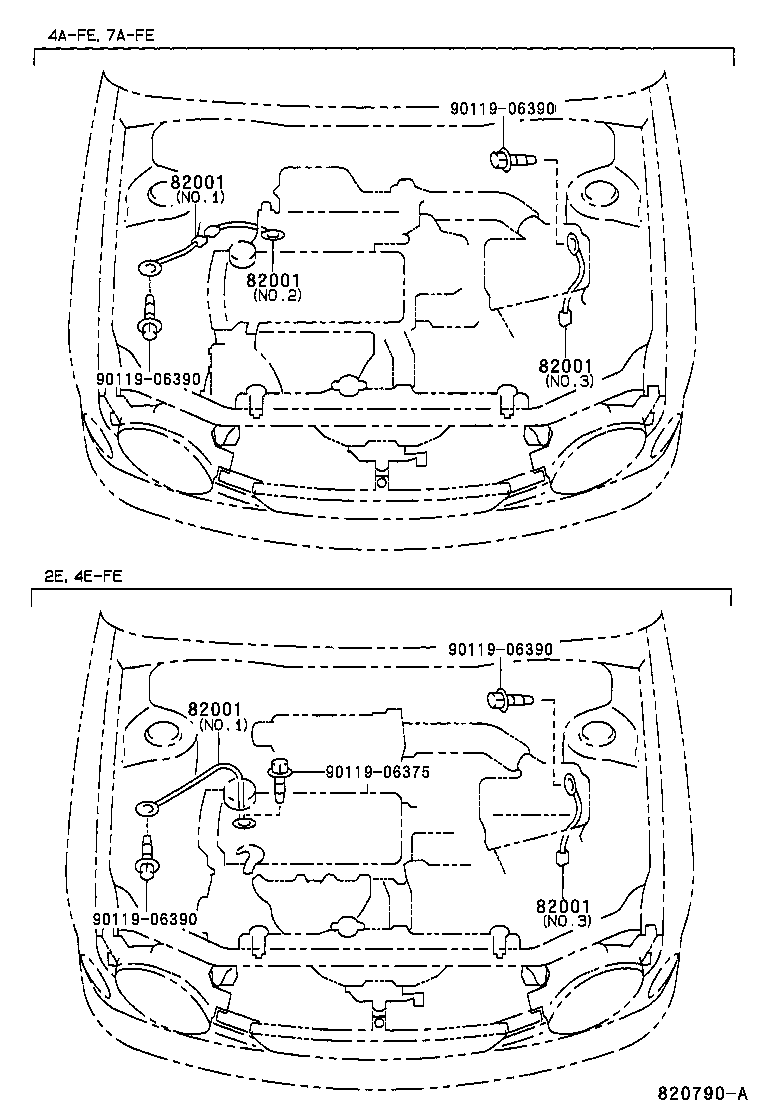

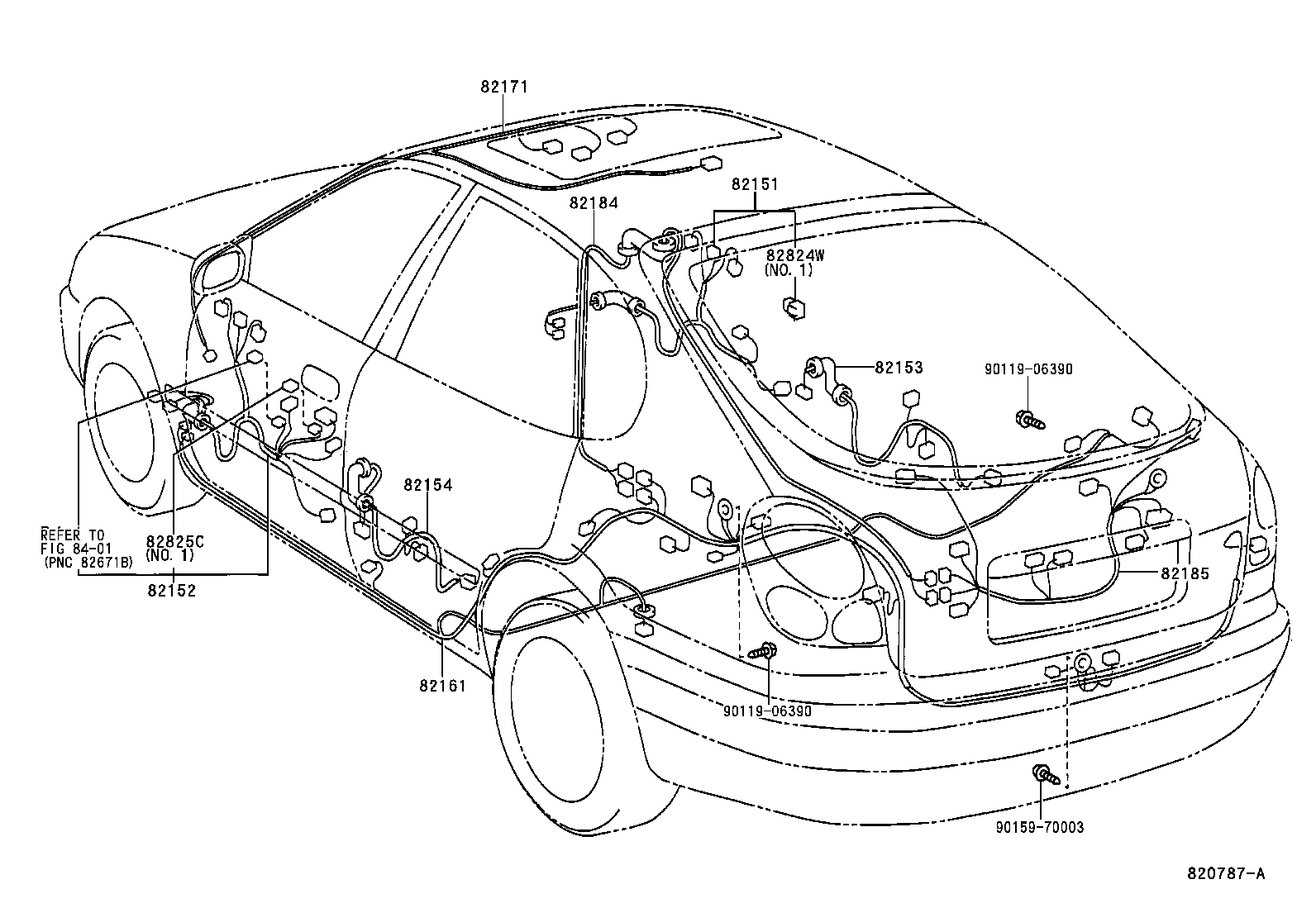

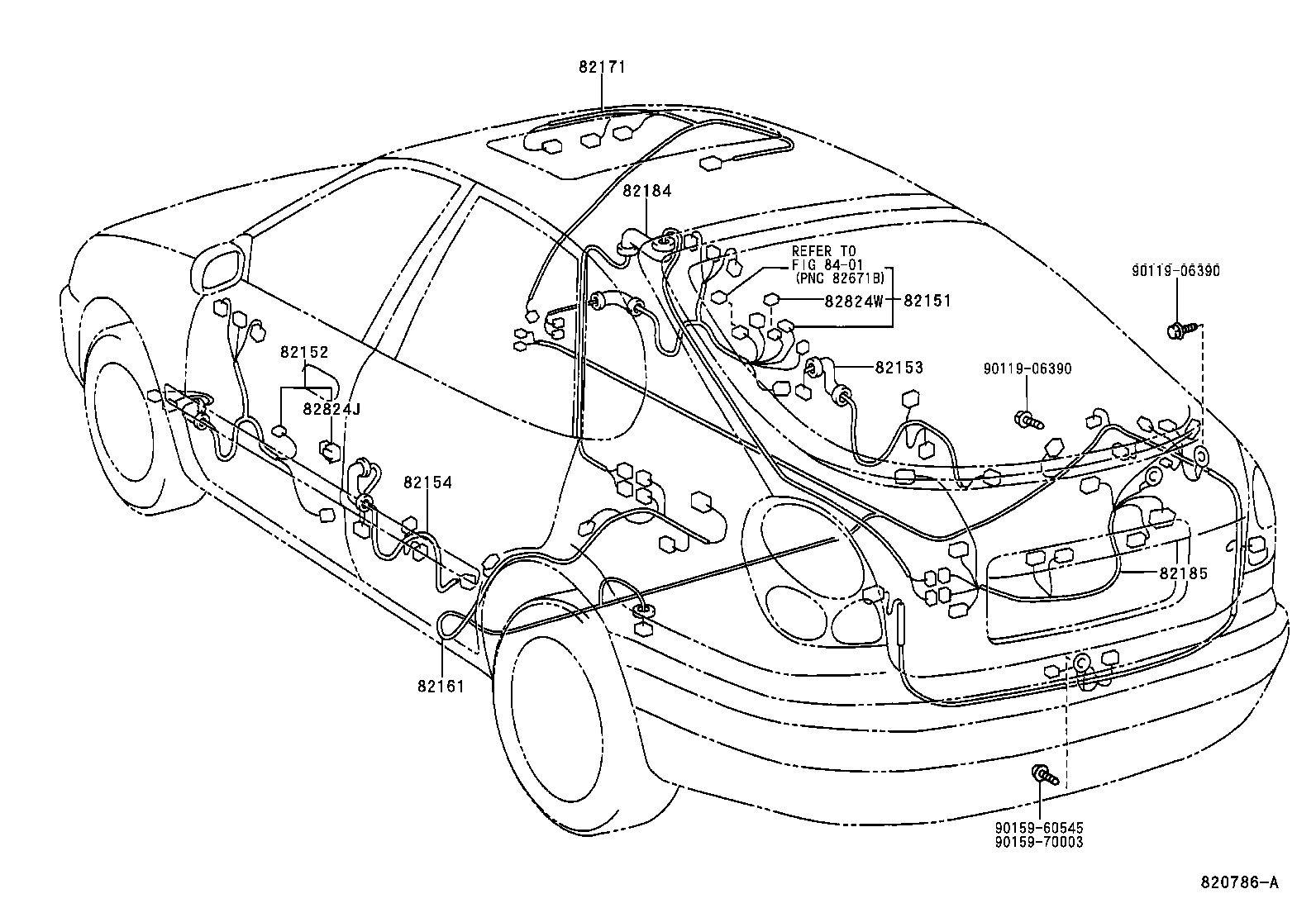

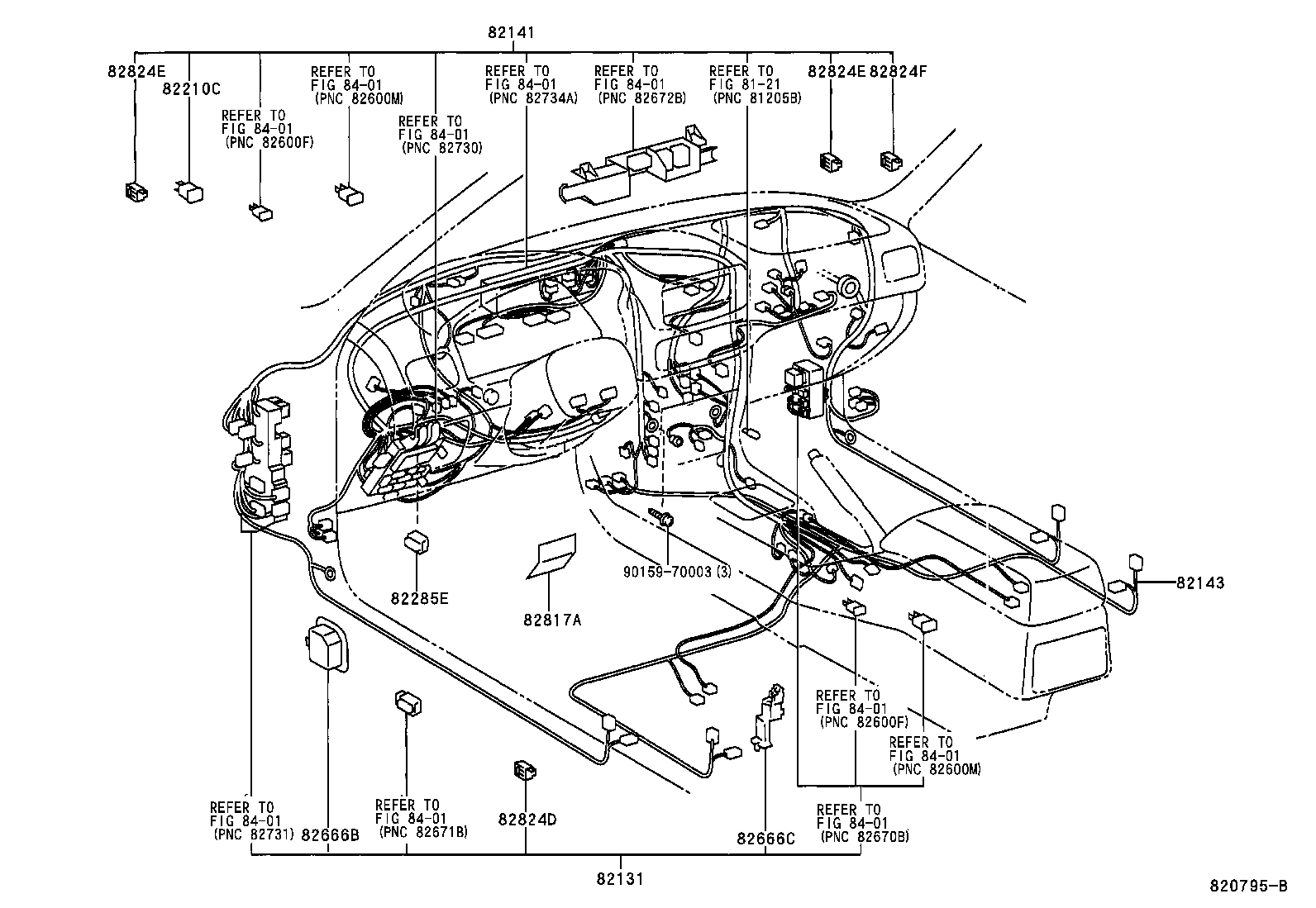

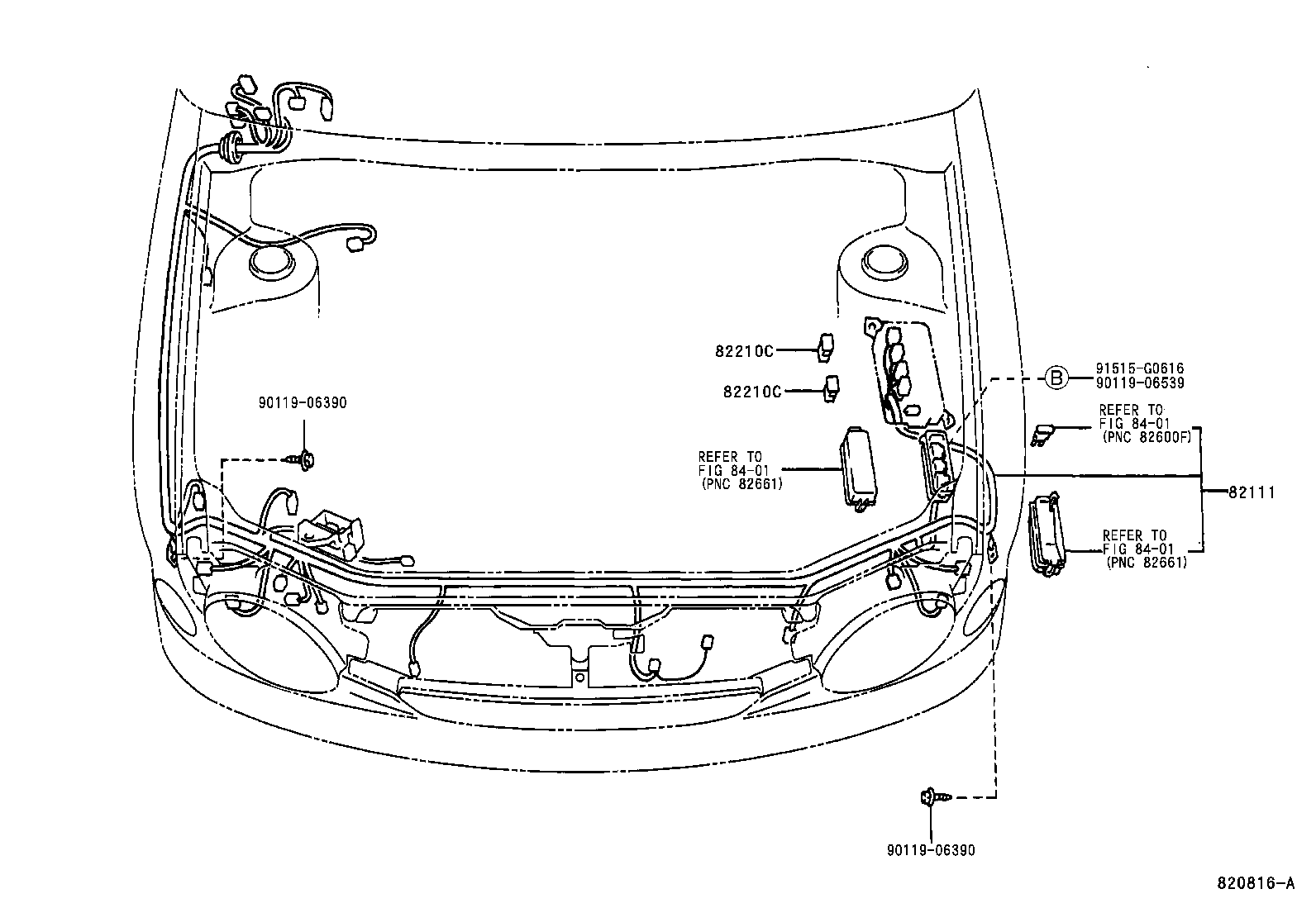

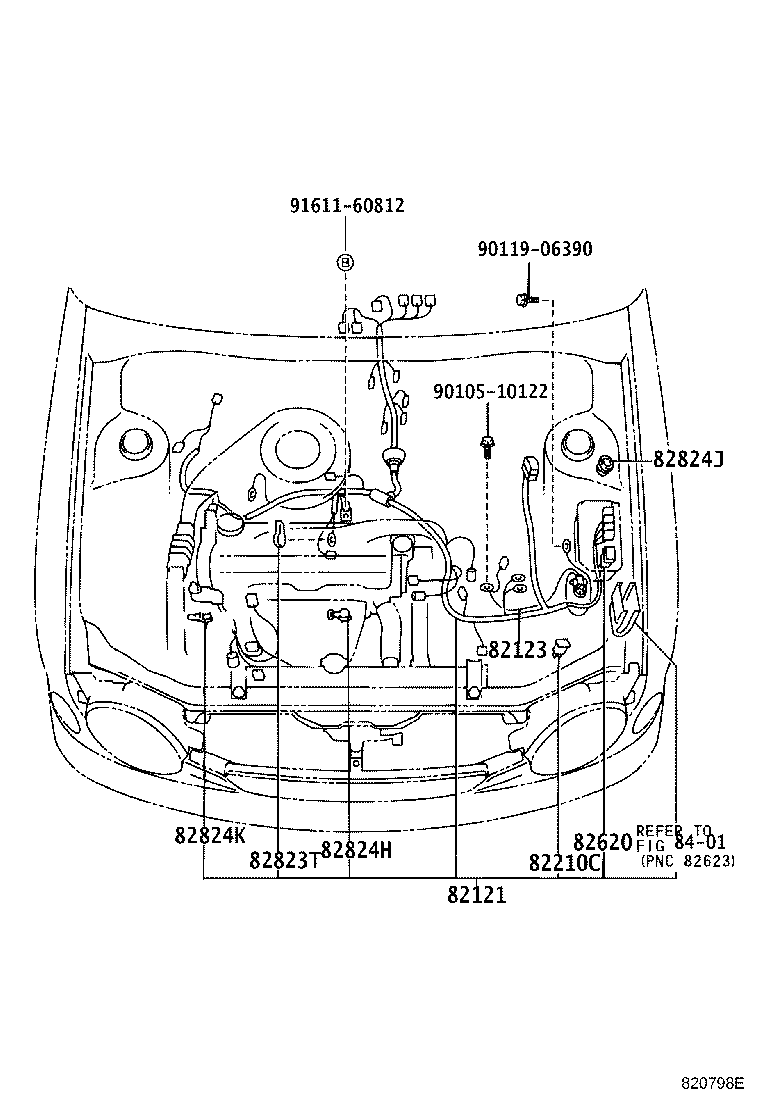

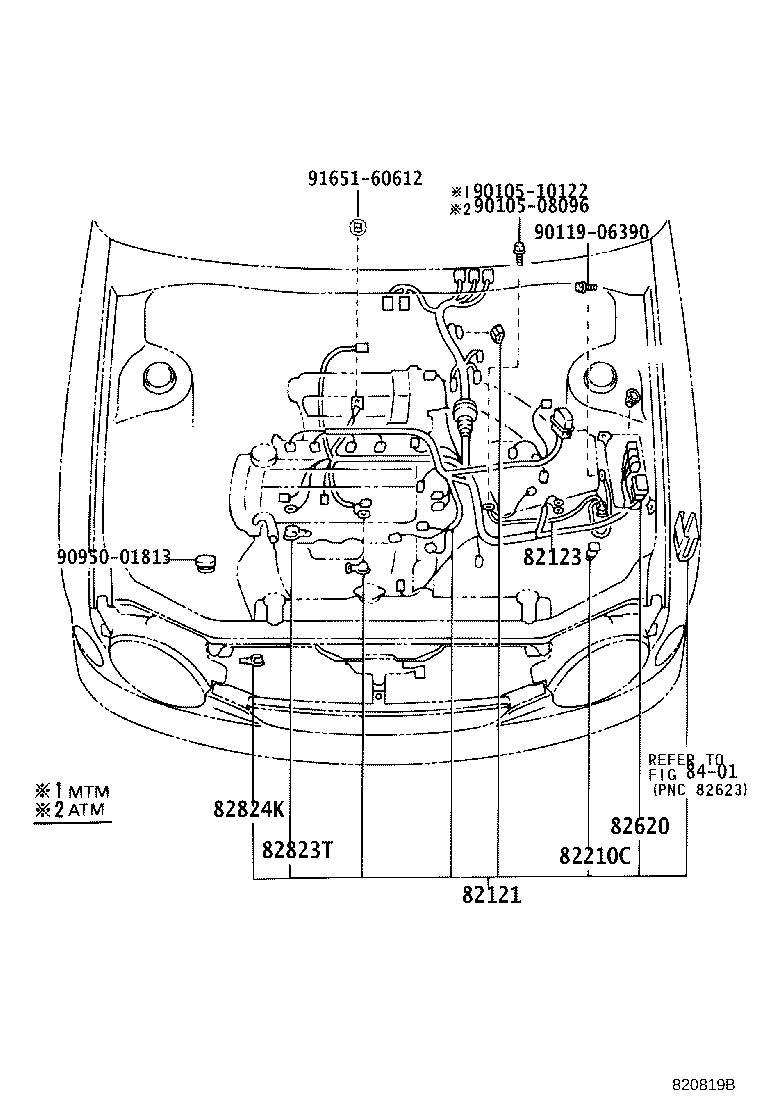

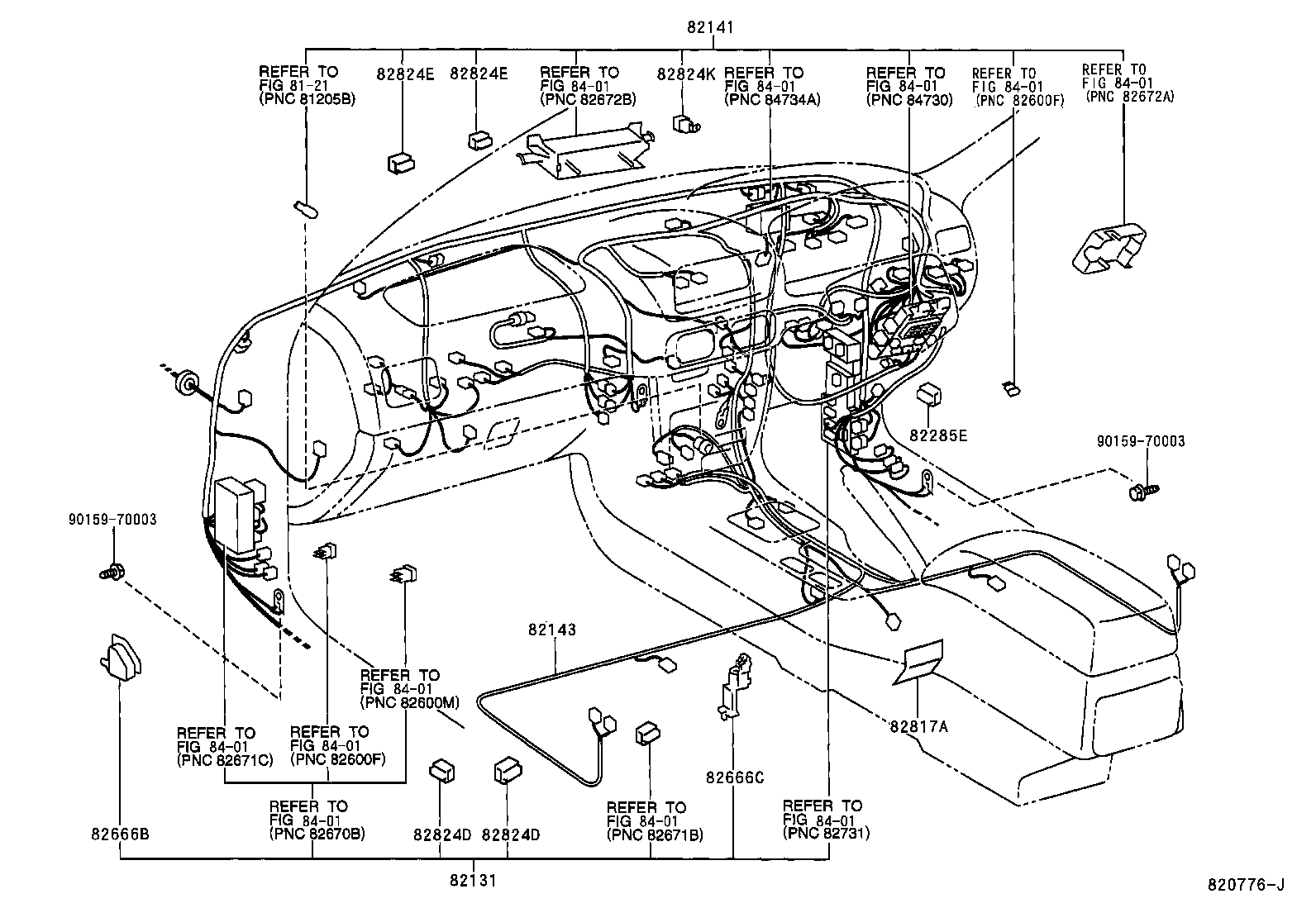

Figure 820774B 820774B 1997-04 → — Figure 820798E 820798E 1997-04 → — Figure 820819B 820819B 1997-04 → — Figure 820816A 820816A 1997-04 → — Figure 820776J 820776J 1997-04 → — Figure 820795B 820795B 1997-04 → — Figure 820786A 820786A 1997-04 → — Figure 820787A 820787A 1997-04 → — Figure 820788D 820788D 1997-04 → — Figure 820789B 820789B 1997-04 → — Figure 820790A 820790A 1997-04 → — Figure 820805 820805 1997-04 → — Figure 820600 820600 1997-04 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82131 Wire, Cowl
82141 Wire, Instrument Panel
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82210C Fusible Link
82285E Wire, Illumination
82620 Block Assy, Fusible Link
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82823T Cap, Alternator Terminal
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
82824K Connector, Wiring Harness
82824W Connector, Wiring Harness
82825C Connector, Wiring Harness
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
