Toyota Corolla LB

1997-05 → 2001-09 · chassis AE11#,EE110 · catalogue 153340 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

13 part groups · 3 illustrations

Illustrations

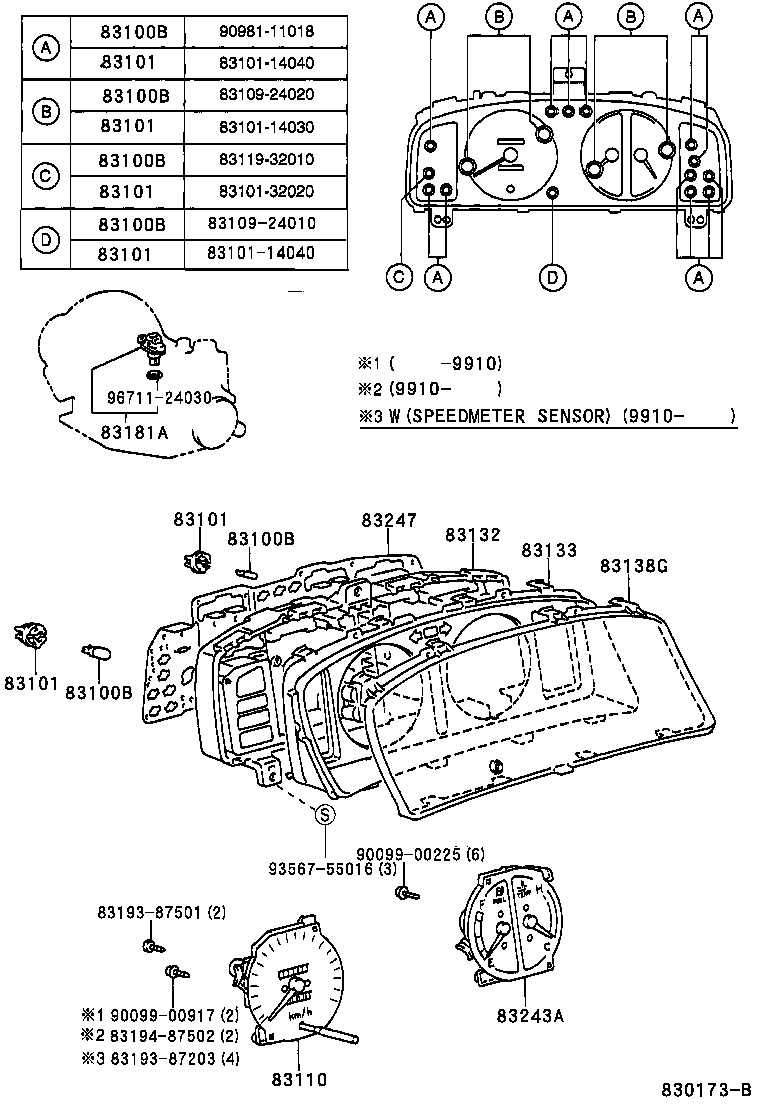

Figure 830172C 830172C 1997-04 → — Figure 830173B 830173B 1997-04 → — Figure 830171 830171 1997-04 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83110 Speedometer Assy
83132 Case, Combination Meter
83133 Plate, Combination Meter, NO.1
83138G Glass, Combination Meter
83181A Sensor, Speedometer
83242 Tachometer Assy, Engine
83243A Gauge Sub-assy, Fuel Receiver
83244 Gauge Sub-assy, Water Temperature Receiver
83247 Plate, Meter Circuit
83710 Cable Assy, Speedometer Drive, NO.1
83710A Cable Assy, Speedometer Drive, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
