Toyota Corolla LB
1997-05 → 2001-09 · chassis AE11#,EE110 · catalogue 153340 · General
Discontinued model
Data version 2002-04
Heating & Air Conditioning - Heater Unit & Blower
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

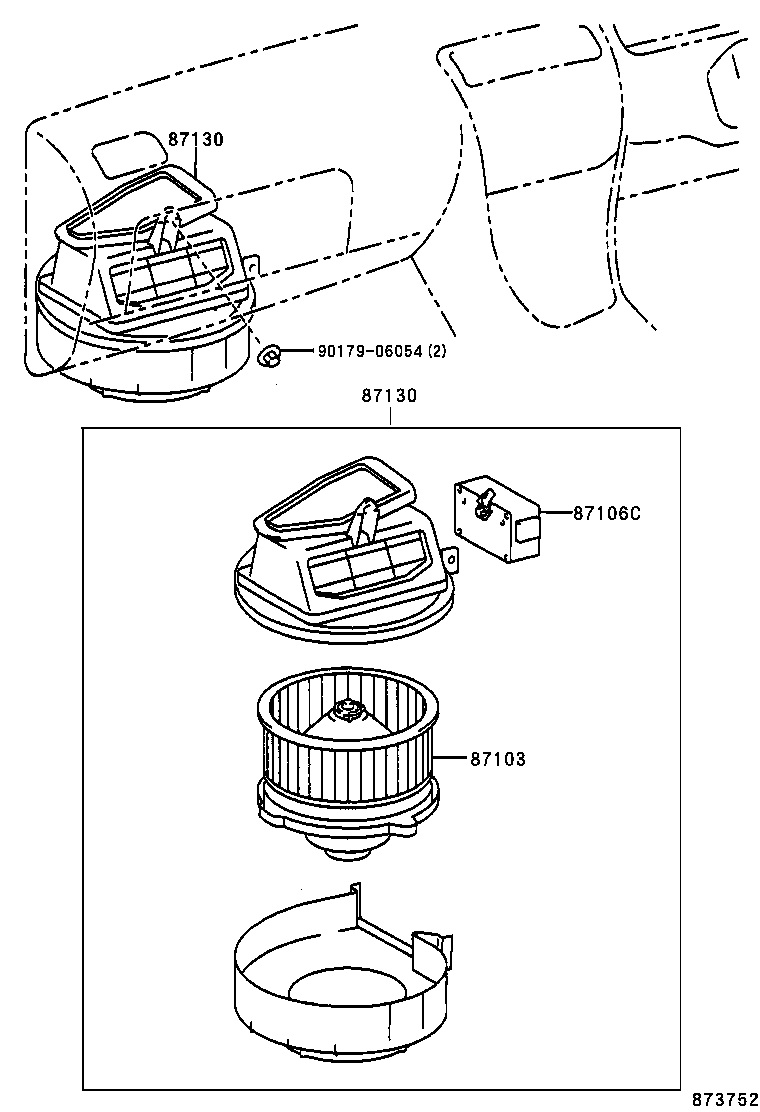

| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87106A | Servo Sub-assy, Damper |
| 87106C | Servo Sub-assy, Damper(FOR BLOWER) |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87126A | Clamp, Heater Control |

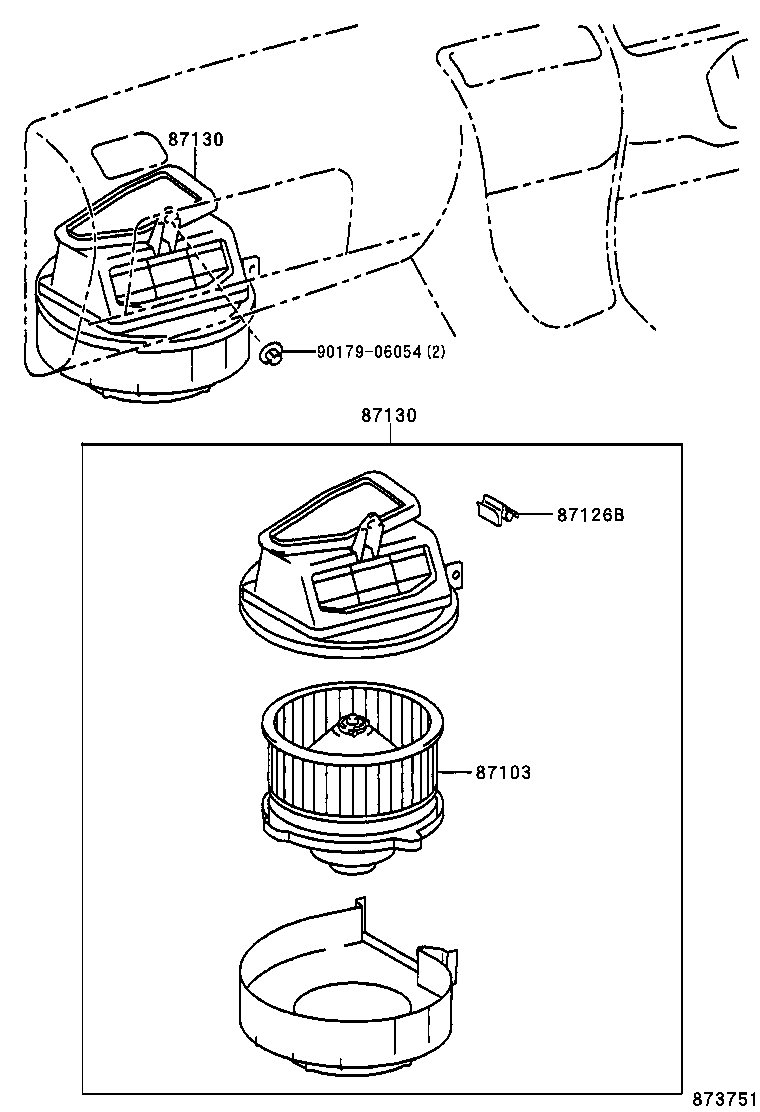

| 87126B | Clamp, Heater Control |
| 87130 | Blower Assy, Heater, Front |

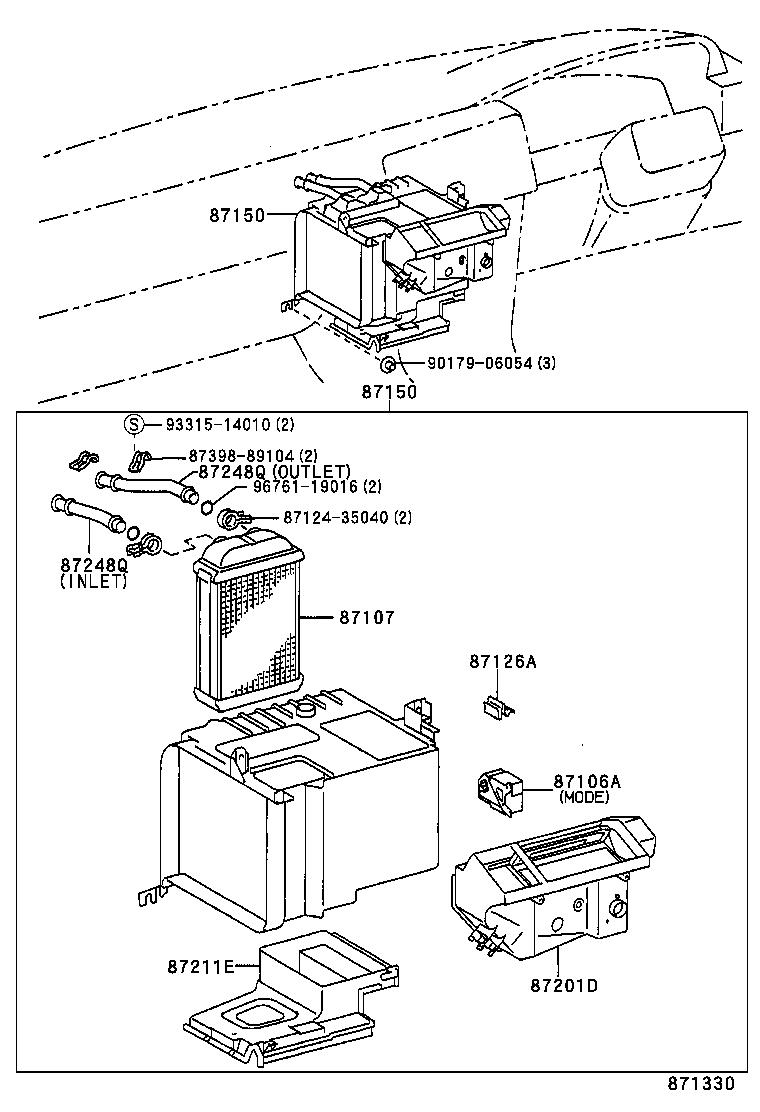

| 87150 | Radiator Assy, Heater |
| 87201D | Duct Sub-assy, Air |
| 87211E | Duct, Air |
| 87248Q | Pipe, Front Heater Radiator Water |
| 88910 | Ventilator Assy, Boost |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
