Toyota Corolla LB

1997-05 → 2001-09 · chassis AE11#,EE110 · catalogue 153340 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

14 part groups · 3 illustrations

Illustrations

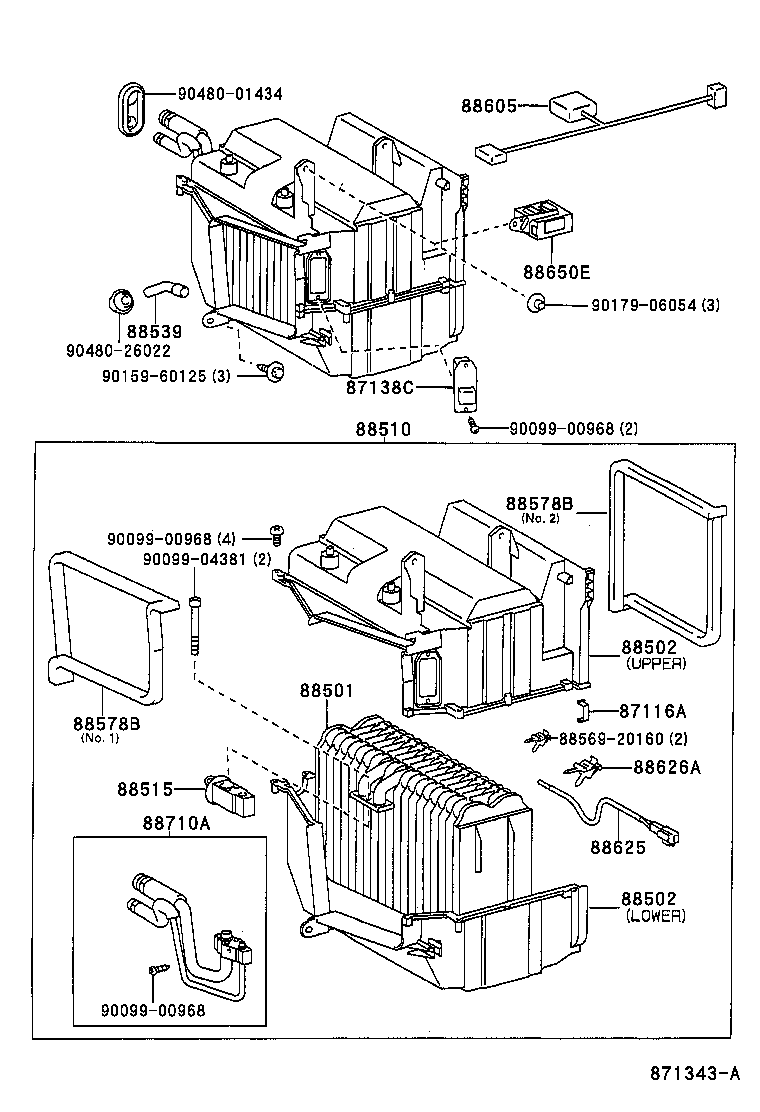

Figure 871342A 871342A 1997-04 → — Figure 871343A 871343A 1997-04 → — Figure 870233 870233 1997-04 → —

Part groups

PNCDescription
87116A Spring, Holding (FOR COOLER UNIT CASE)
87138C Resistor, Blower
88501 Evaporator Sub-assy, Cooler, NO.1
88502 Case Sub-assy, Cooling Unit
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88578B Packing, Cooling Unit, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88626A Holder, Thermistor
88650E Amplifier Assy, Air Conditioner, NO.1
88688A Bracket, Cooler Stabilizer Amplifier
88710A Tube Assy, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
