Toyota Corolla LB
1997-05 → 2001-09 · chassis AE11#,EE110 · catalogue 153340 · General
Discontinued model
Data version 2002-04

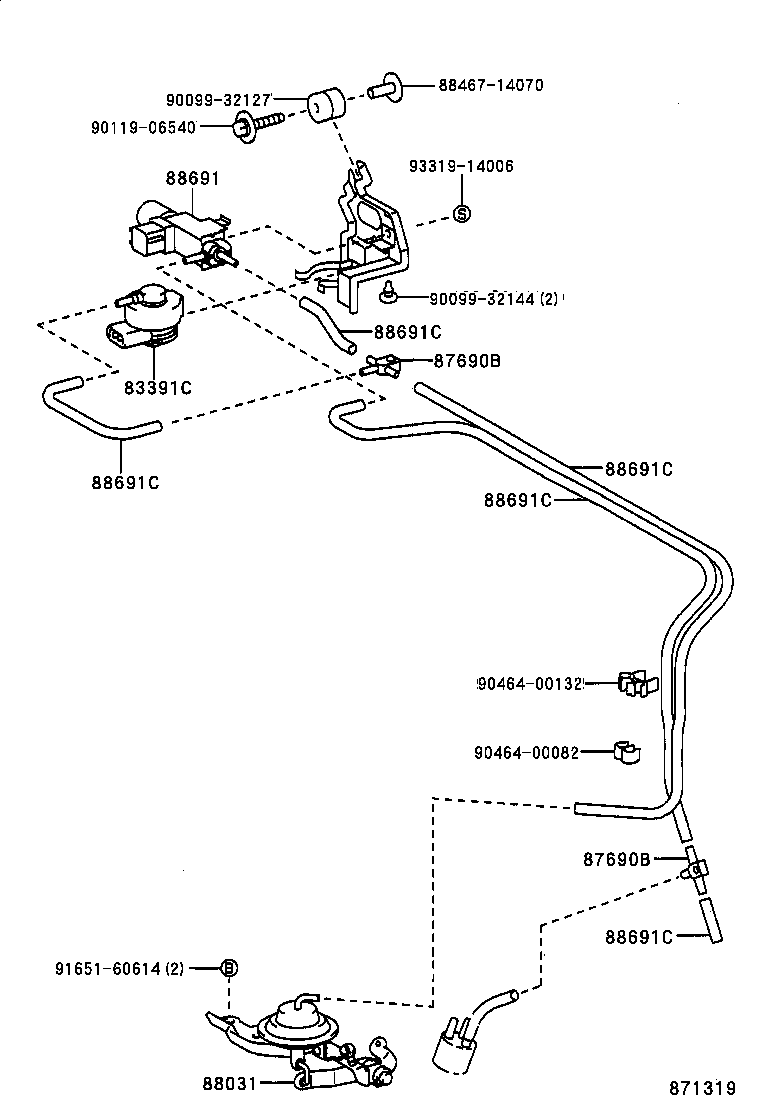

Heating & Air Conditioning - Vacuum Piping
7 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 83391C | Switch, Cooler Vacuum |
| 87690B | Way, 3 |
| 88031 | Actuator Set, Idle-up |
| 88689A | Hose, Cooler Vacuum NO.1 |
| 88691 | Valve, Magnet (FOR IDLE UP DEVICE) |
| 88691C | Hose, Vacuum (FOR IDLE UP DEVICE), NO.1 |
| 88691D | Hose, Vacuum (FOR IDLE UP DIVICE), NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
