Toyota Corolla 5D

2001-10 → 2007-02 · chassis ZZE122 · catalogue 153350 · General

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

10 part groups · 2 illustrations

Illustrations

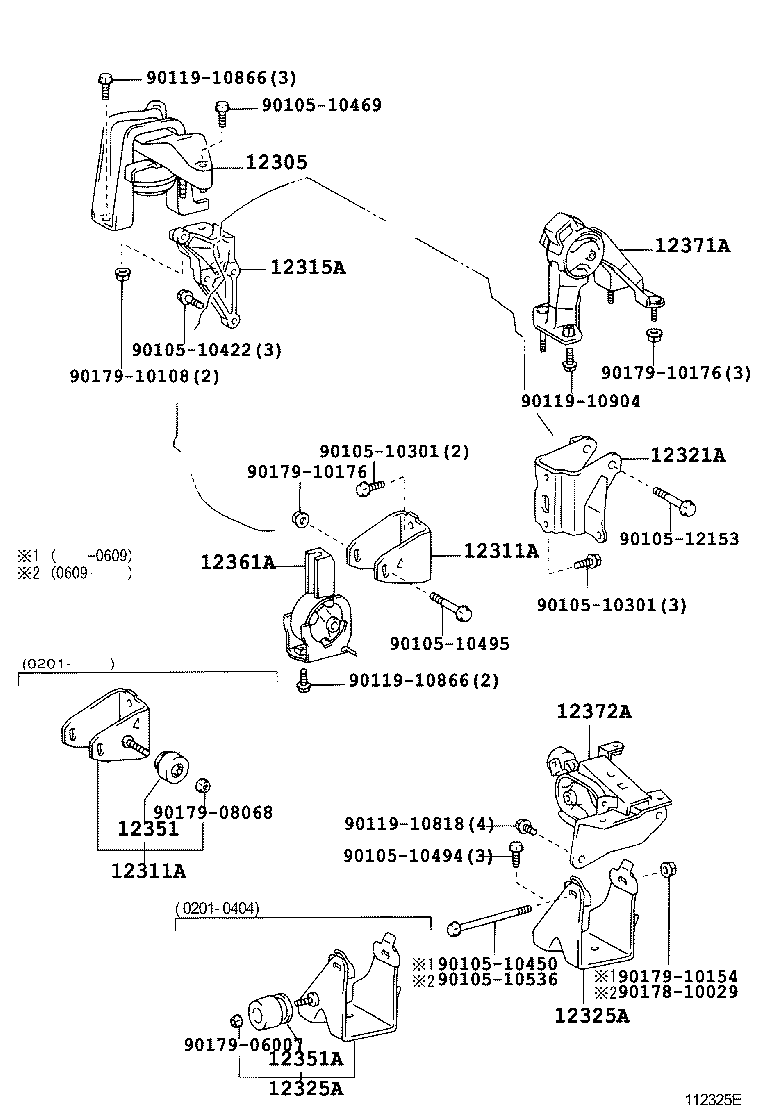

Figure 112235E 112235E 2001-10 → — Figure 112325E 112325E 2001-10 → —

Part groups

PNCDescription
12305 Insulator Sub-assy, Engine Mounting, RH
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12351 Damper, Engine Mounting
12351A Damper, Engine Mounting(FOR INSULATOR)
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
