Toyota Corolla 5D
2001-10 → 2007-02 · chassis ZZE122 · catalogue 153350 · General
Discontinued model
Data version 2007-10

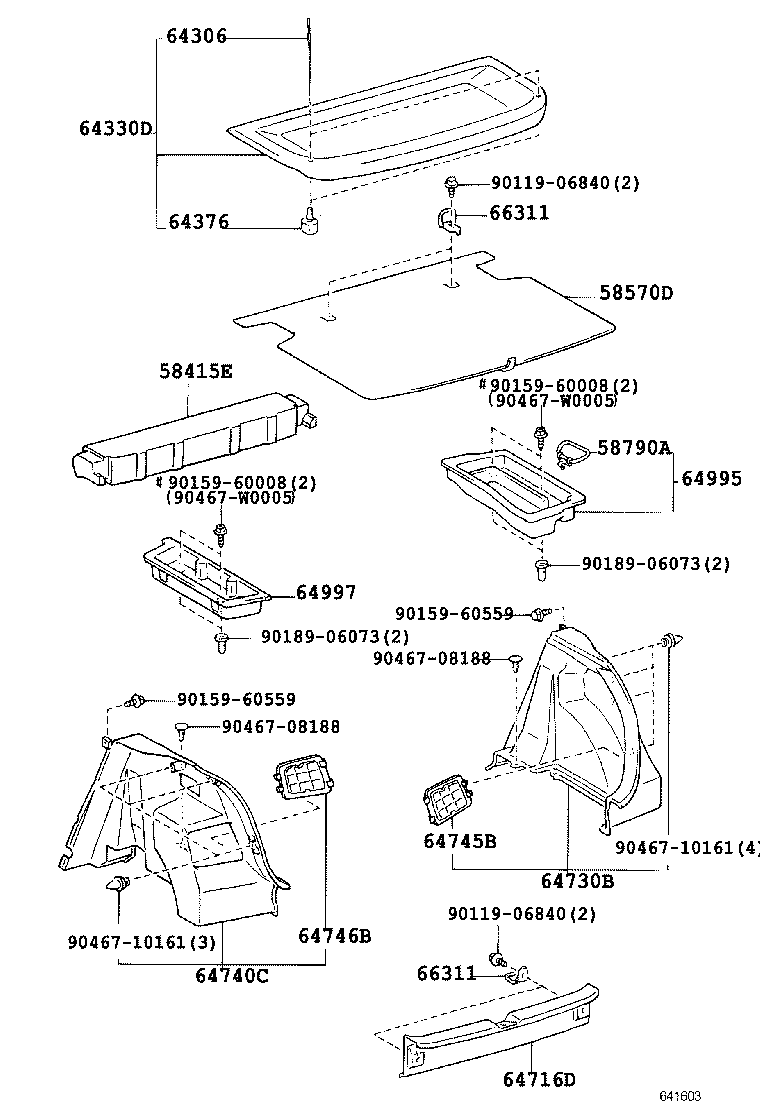

Deck Board & Deck Trim Cover
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58401E | Board Sub-assy, Deck |
| 58401J | Clip(FOR DECK BOAD) |
| 58415E | Board, Rear Floor, NO.1 |
| 58443C | Cushion, Deck Compartment Box |
| 58570D | Carpet Assy, Rear Floor |
| 58790A | Carrier Assy, Jack |
| 64306 | Suspender Sub-assy, Package Tray Trim |
| 64330D | Panel Assy, Package Tray Trim |
| 64376 | Spacer, Package Tray Trim, NO.2 |
| 64716D | Cover, Deck Trim, Rear |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64745B | Cover, Rear Combination Lamp Service, NO.2, RH |
| 64746B | Cover, Rear Combination Lamp Service, NO.2, LH |
| 64772 | Pad, Spare Wheel Cover |
| 64995 | Box, Deck Floor, RH |
| 64997 | Box, Deck Floor, LH |
| 66311 | Hook, Rope |
| 73371F | Hanger, Package Tray Trim |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
