Toyota Corolla 5D
2001-10 → 2007-02 · chassis ZZE122 · catalogue 153350 · General
Discontinued model
Data version 2007-10

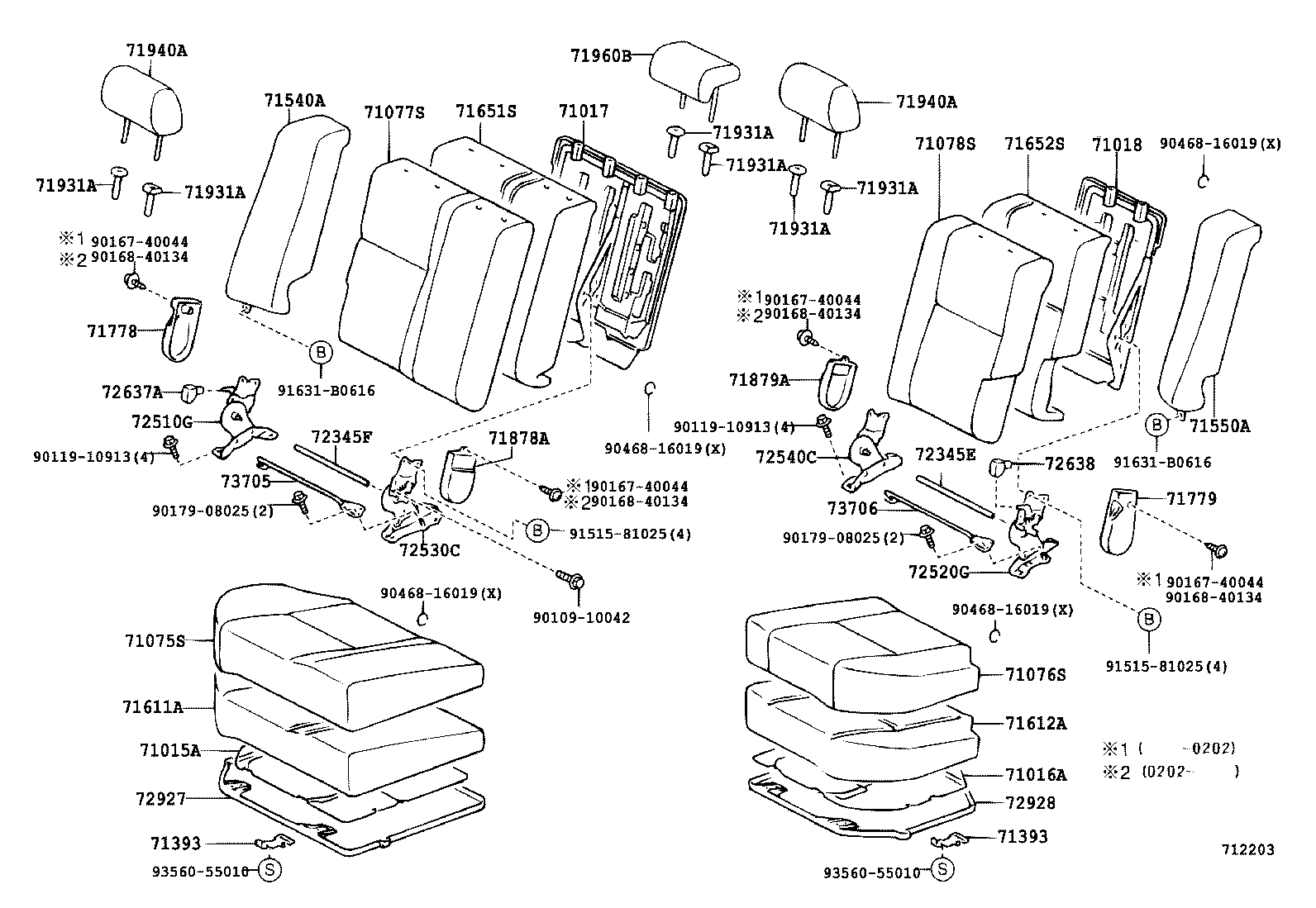

Rear Seat & Seat Track
46 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 71015A | Frame Sub-assy, Rear Seat Cushion, RH |
| 71016A | Frame Sub-assy, Rear Seat Cushion, LH |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71075S | Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE) |
| 71076S | Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71303 | Hinge Sub-assy, Rear Seatback |
| 71305A | Hinge Sub-assy, Rear Seatback, Center |
| 71393 | Band, Rear Seat Cushion |
| 71480A | Clip (FOR REAR SEATBACK) |
| 71490A | Clip, Rear Seatback, LH |
| 71540A | Back Assy, Rear Side Seat, RH |
| 71550A | Back Assy, Rear Side Seat, LH |
| 71611A | Pad, Rear Seat Cushion, RH |
| 71612A | Pad, Rear Seat Cushion, LH |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71778 | Cover, Rear Seat Side Hinge Male, RH |
| 71779 | Cover, Rear Seat Side Hinge Male, LH |
| 71878A | Cover, Rear Seat Reclining, Inner RH |
| 71879A | Cover, Rear Seat Reclining, Inner LH |
| 71880A | Carpet Assy, Rear Seatback Board, RH |
| 71890A | Carpet Assy, Rear Seatback Board, LH |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72345E | Pipe, Reclining Connecting |
| 72345F | Pipe, Reclining Connecting, RH |
| 72510G | Adjuster Assy, Rear Reclining Seat, Outer RH |
| 72520G | Adjuster Assy, Rear Reclining Seat, Outer LH |
| 72530C | Adjuster Assy, Rear Reclining Seat, Inner RH |
| 72540C | Adjuster Assy, Rear Reclining Seat, Inner LH |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72637A | Handle, Rear Seat Lock |
| 72638 | Handle, Rear Seat Lock, LH |
| 72640A | Lock Assy, Rear Seatback, LH |
| 72646 | Grommet, Rear Seatback Stop Button |
| 72646A | Grommet, Rear Seatback Stop Button |
| 72656 | Button, Rear Seatback Stop Release |
| 72656B | Button, Rear Seatback Stop Release |
| 72927 | Cover, Rear Seat Cushion Under, RH |
| 72928 | Cover, Rear Seat Cushion Under, LH |
| 73705 | Bracket Sub-assy, Child Restraint Seat Anchor, RH |
| 73706 | Bracket Sub-assy, Child Restraint Seat Anchor, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
