Toyota Corolla 5D

2001-10 → 2007-02 · chassis ZZE122 · catalogue 153350 · General

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

24 part groups · 3 illustrations

Illustrations

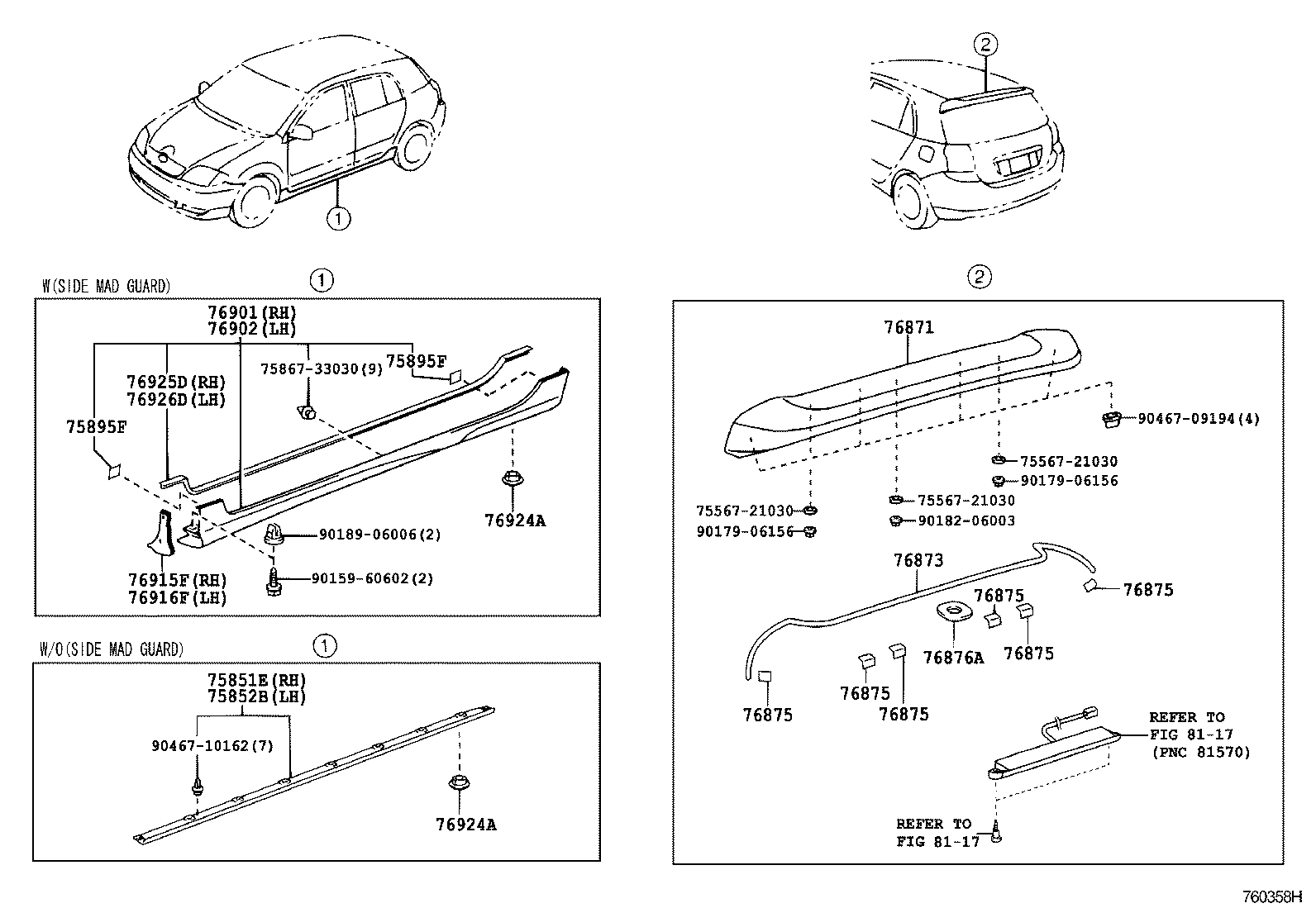

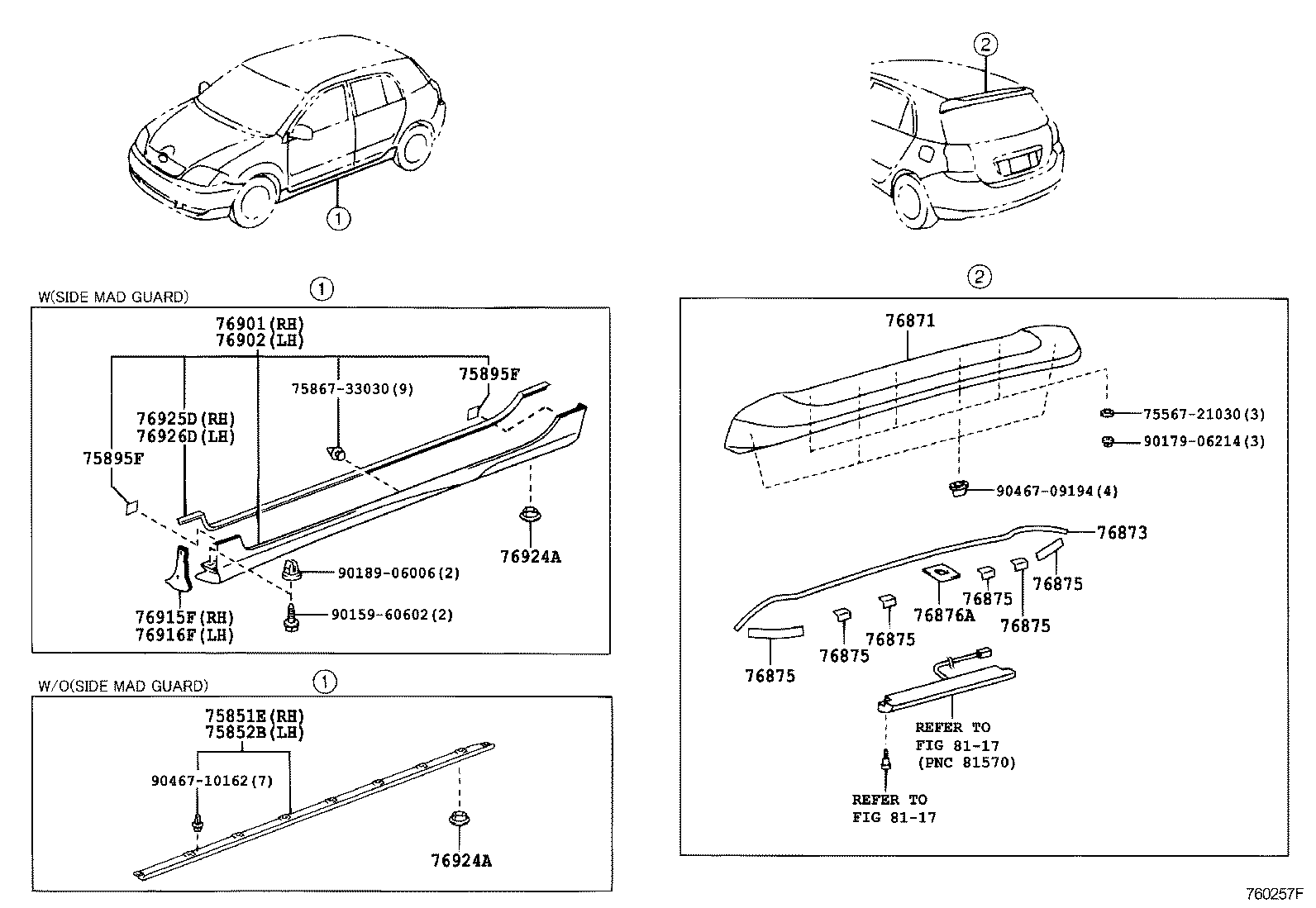

Figure 760256D 760256D 2001-10 → 2007-02 Figure 760257F 760257F 2001-10 → 2004-04 Figure 760358H 760358H 2004-04 → 2007-02

Part groups

PNCDescription
75851E Moulding, Body Rocker Panel, RH
75852B Moulding, Body Rocker Panel, LH
75895F Tape, Moulding, NO.1
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76851A Cover, Front Spoiler, RH
76852A Cover, Front Spoiler, LH
76853C Retainer, Front Spoiler, NO.1
76854A Retainer, Front Spoiler, NO.2
76871 Spoiler, Rear
76873 Protector, Rear Spoiler, NO.2
76875 Protector, Rear Spoiler, NO.4
76876A Protector, Rear Spoiler, NO.10
76877D Protector, Front Spoiler Side, RH
76878A Protector, Front Spoiler Side, LH
76901 Mudguard Sub-assy, Side, RH
76902 Mudguard Sub-assy, Side, LH
76915F Mudguard, Side, FR RH
76916F Mudguard, Side, FR LH
76924A Retainer, Side Mudguard, NO.2
76925D Protector, Side Mudguard, RH
76926D Protector, Side Mudguard, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
