Toyota Corolla 5D

2001-10 → 2007-02 · chassis ZZE122 · catalogue 153350 · General

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

17 part groups · 2 illustrations

Illustrations

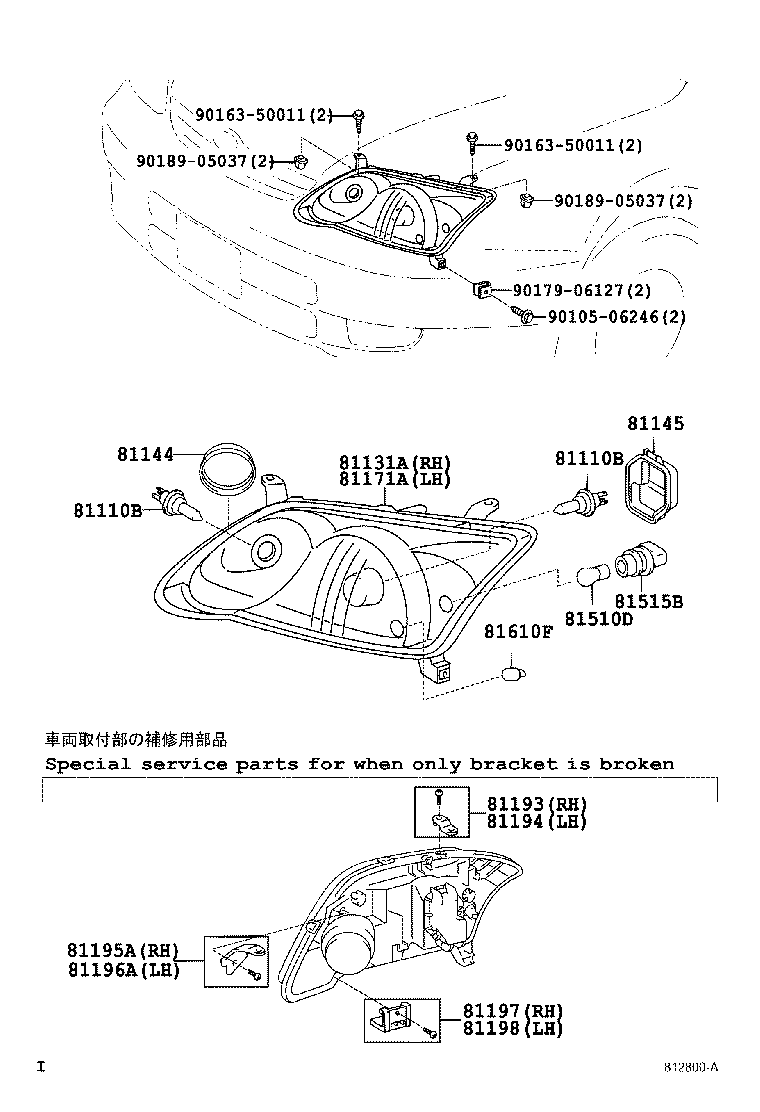

Figure 811960D 811960D 2001-10 → 2004-04 Figure 812800B 812800B 2004-04 → 2007-02

Part groups

PNCDescription
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81131A Unit, Headlamp, RH
81144 Cover, Headlamp, NO.1
81145 Cover, Headlamp, NO.2
81145A Adapter Assy
81171A Unit, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81195A Retainer, Headlamp Protector, Lower RH
81196A Retainer, Headlamp Protector, Lower LH
81197 Bracket, Headlamp, Lower RH
81198 Bracket, Headlamp, Lwr LH
81510D Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
