Toyota Corolla 5D

2001-10 → 2007-02 · chassis ZZE122 · catalogue 153350 · General

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

13 part groups · 2 illustrations

Illustrations

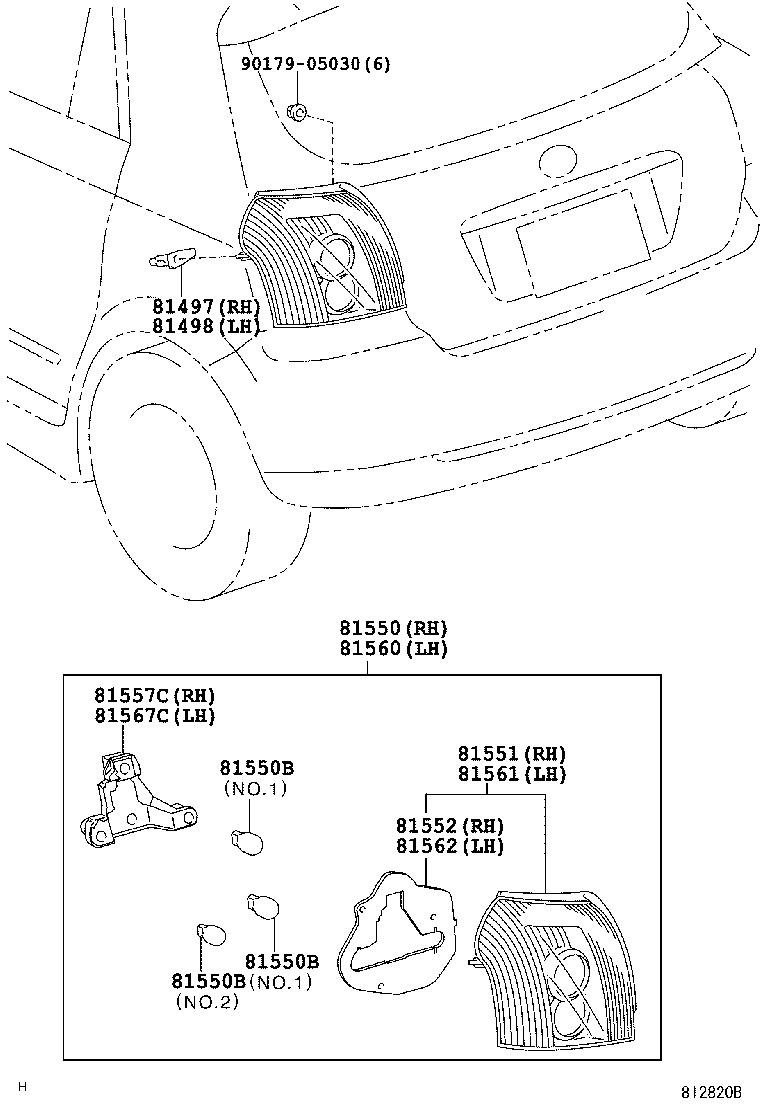

Figure 811949A 811949A 2001-10 → 2004-04 Figure 812820B 812820B 2004-04 → 2007-02

Part groups

PNCDescription
81497 Cover, Rear Combination Lamp, RH
81498 Cover, Rear Combination Lamp, LH
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81557C Cover, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81567C Cover, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
