Toyota Corolla 5D
2001-10 → 2007-02 · chassis ZZE122 · catalogue 153350 · General
Discontinued model
Data version 2007-10

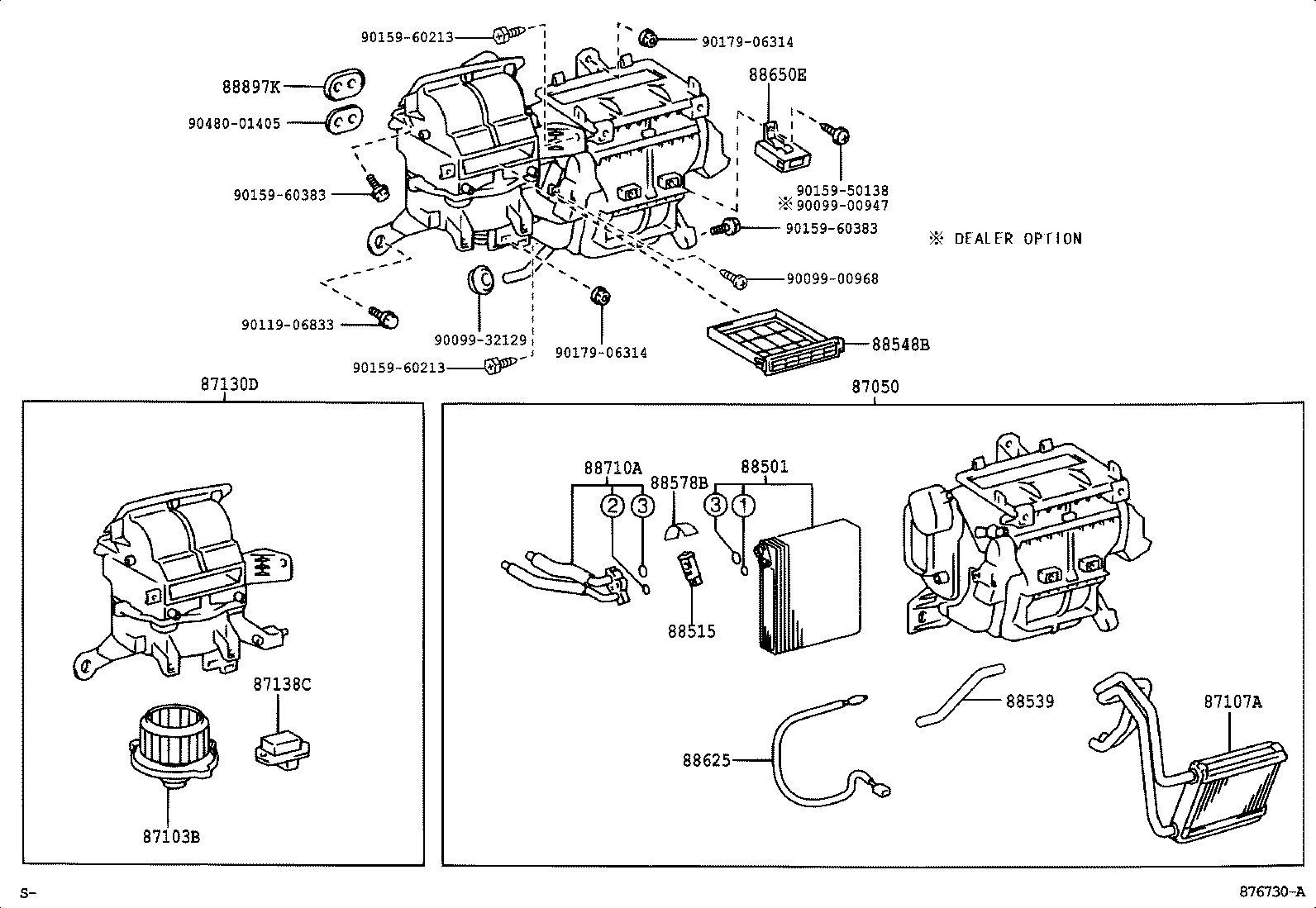

Heating & Air Conditioning - Cooler Unit
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87050 | Radiator Assy, Air Conditioner |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87130D | Blower Assy |
| 87138C | Resistor, Blower |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88515 | Valve, Cooler Expansion |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88548B | Case, Air Filter |
| 88578B | Packing, Cooling Unit, NO.1 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88650E | Amplifier Assy, Air Conditioner, NO.1 |
| 88710A | Tube Assy, Air Conditioner |
| 88897K | Grommet, (FOR COOLER PIPE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
