Toyota Corolla 5D

2001-10 → 2007-02 · chassis ZZE122 · catalogue 153350 · General

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

10 part groups · 5 illustrations

Illustrations

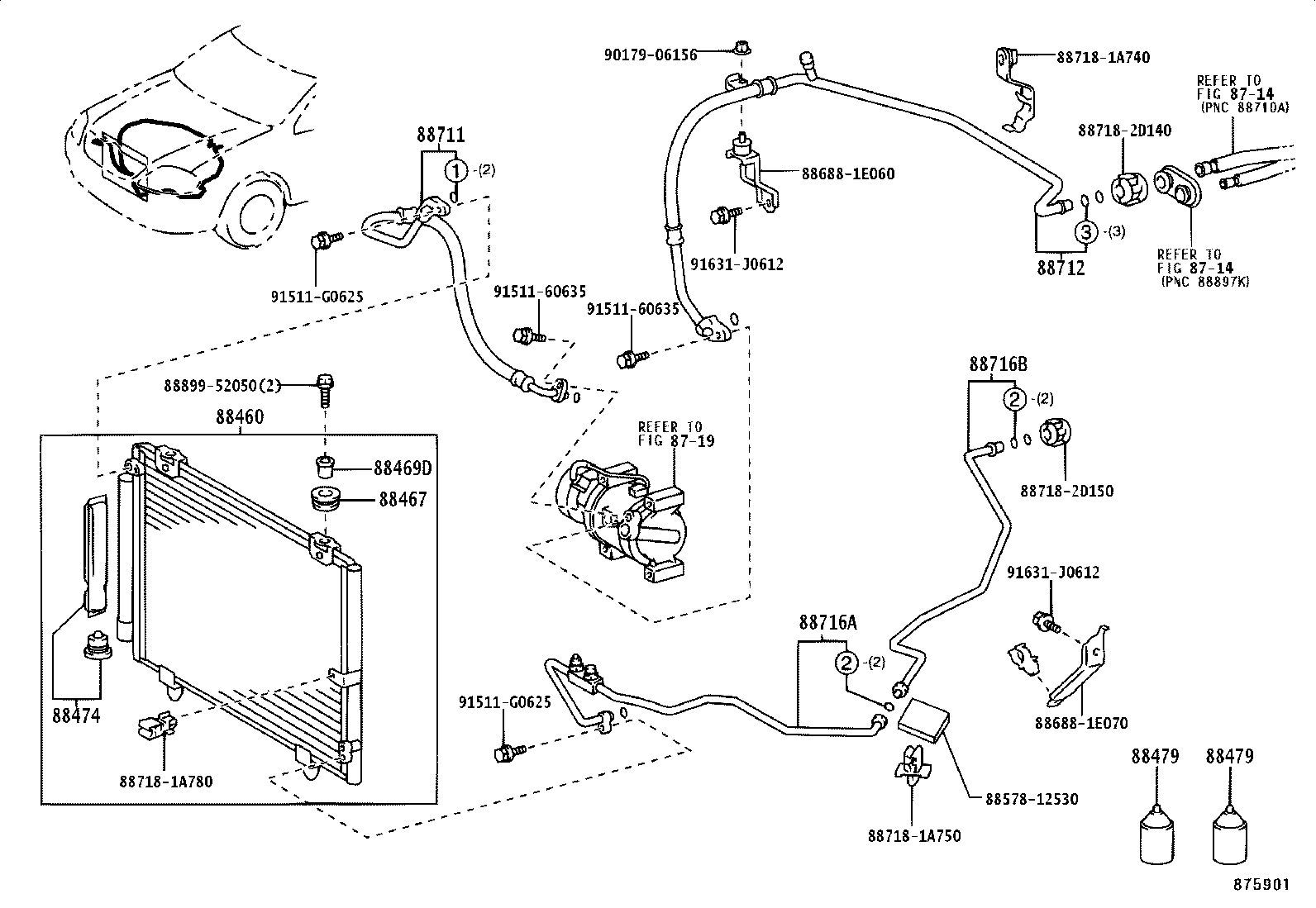

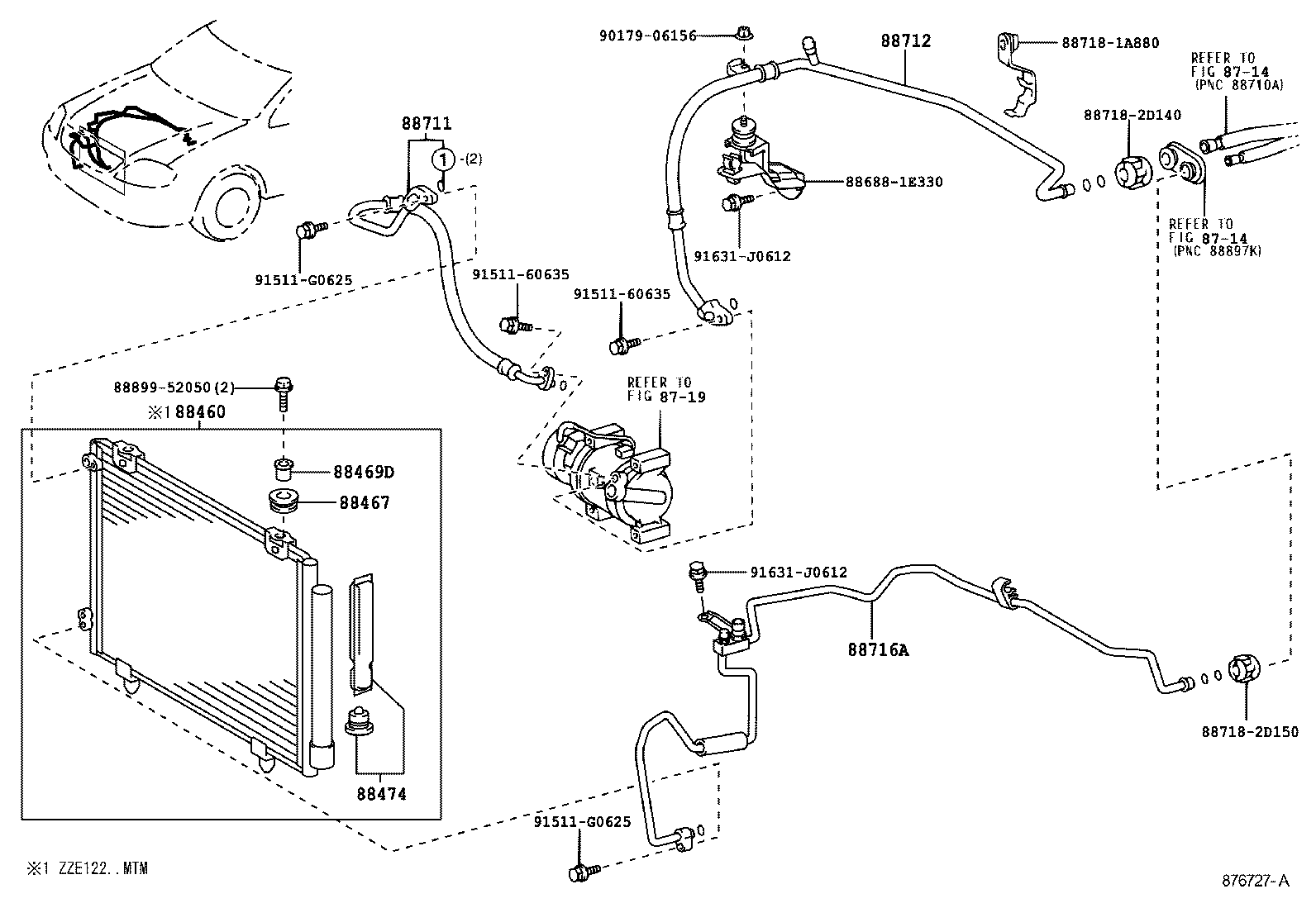

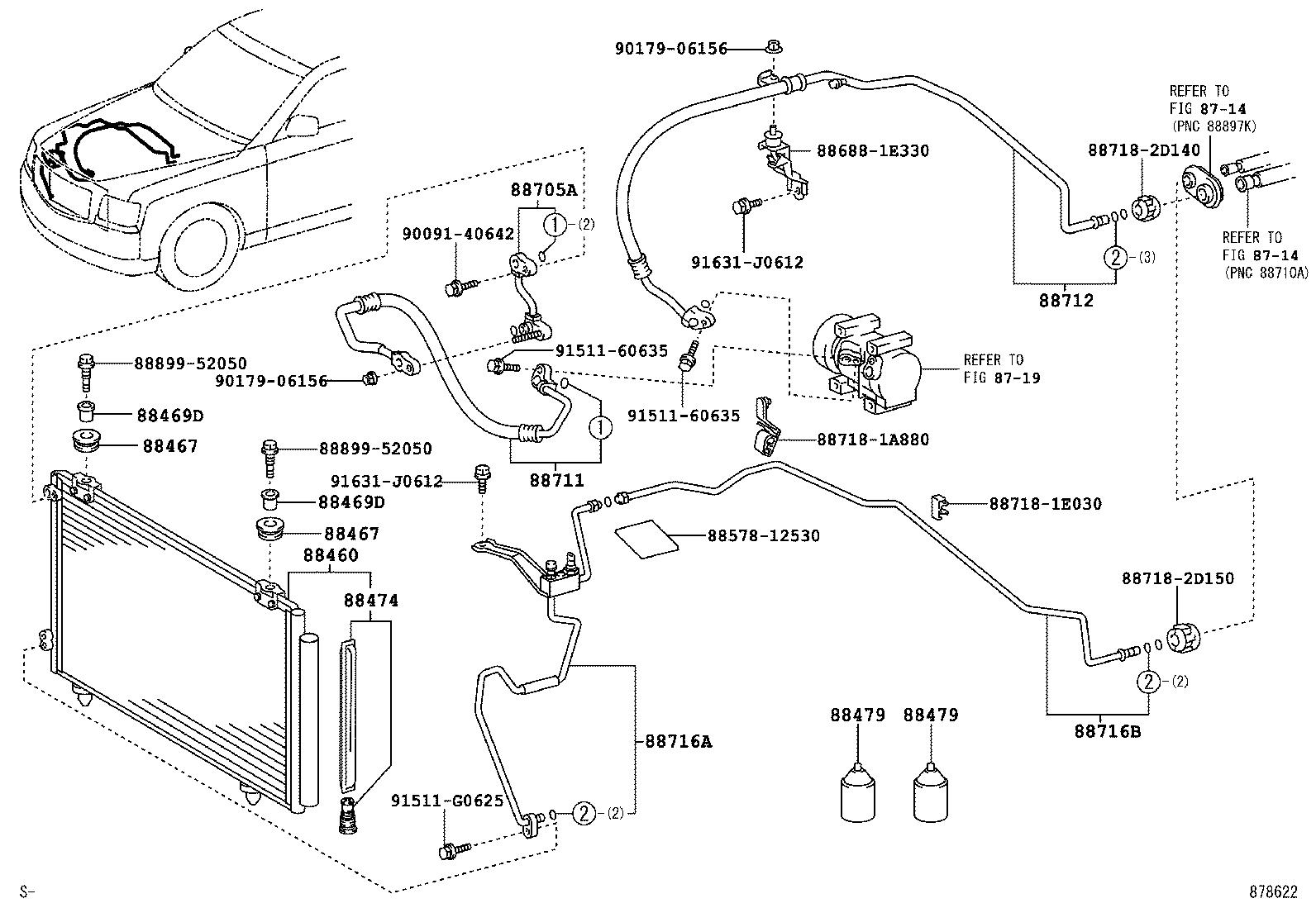

Figure 875902 875902 2001-10 → 2004-04 Figure 875901A 875901A 2001-10 → 2004-04 Figure 876727A 876727A 2004-04 → 2007-02 Figure 878622 878622 2004-04 → 2007-02 Figure 874869 874869 2001-10 → 2007-02

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88469D Collar, Condenser Bracket, NO.1
88474 Dryer, Cooler
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88705A Tube Sub-assy, Discharge
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
