Toyota Spacio
1998-05 → 2001-05 · chassis AE111 · catalogue 154240 · General
Discontinued model
Data version 2002-01

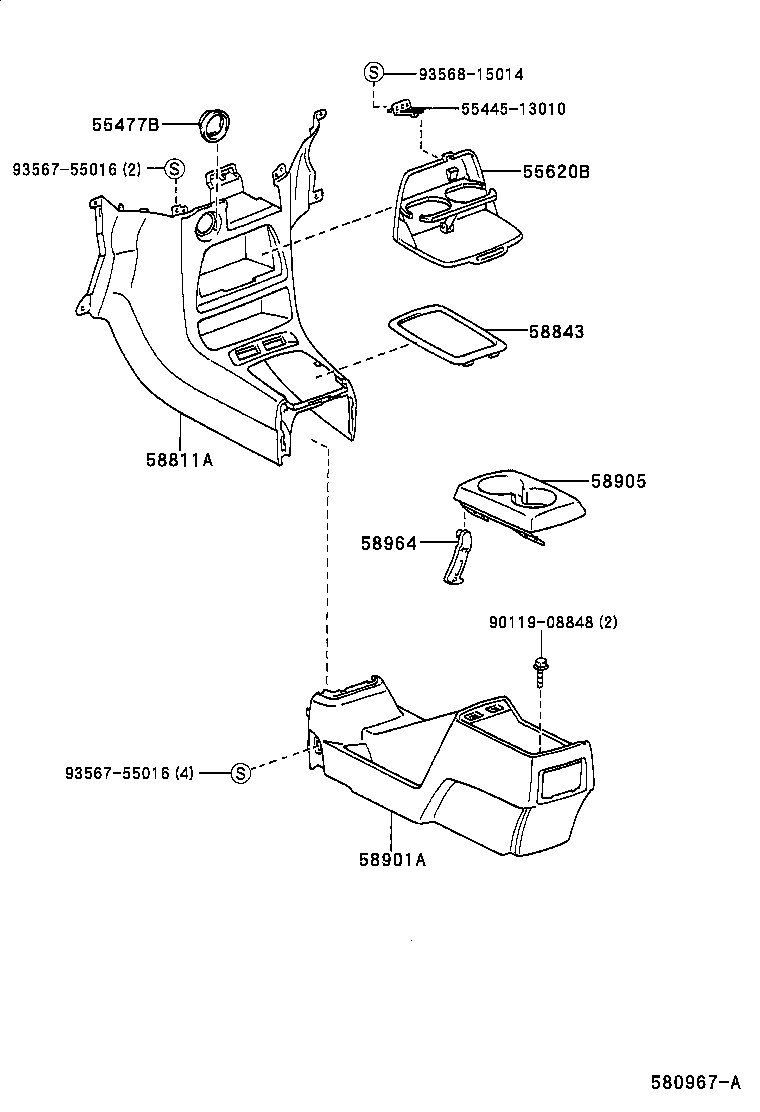

Console Box & Bracket
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55477B | Bezel, Cigarette Lighter Hole |
| 55620B | Holder, Instrument Panel Cup |
| 58811A | Box, Console, Front |
| 58843 | Bezel, Shifting Hole |
| 58901A | Box Sub-assy, Console, Rear |
| 58905 | Door Sub-assy, Console Compartment |
| 58923A | Panel, Console Rear End |
| 58964 | Stopper, Console Compartment Door, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
