Toyota Spacio
1998-05 → 2001-05 · chassis AE111 · catalogue 154240 · General
Discontinued model
Data version 2002-01

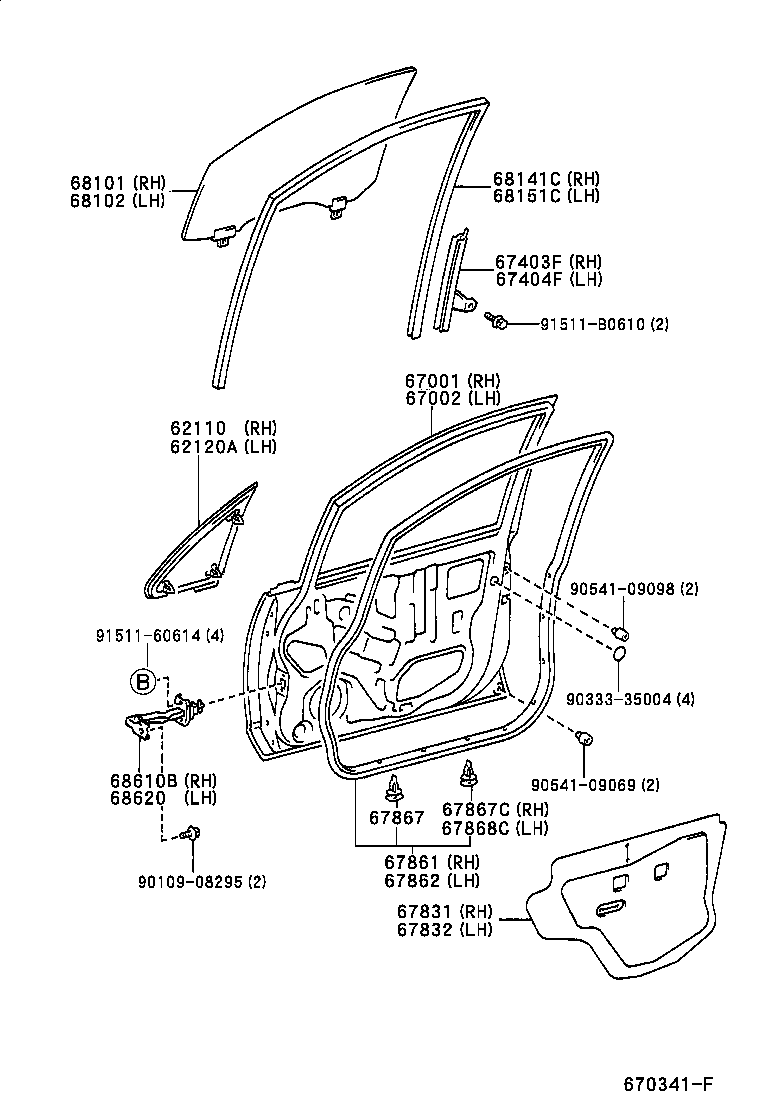

Front Door Panel & Glass
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62110 | Window Assy, Front Side Fix, RH |
| 62120A | Window Assy, Front Side Fix, LH |
| 67001 | Panel Sub-assy, Front Door, RH |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67491F | Clip(FOR DOOR TRIM) |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601H | Retainer, Door Trim, RH |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67602A | Retainer, Door Trim, LH |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867 | Clip, Door Weatherstrip |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141C | Run, Front Door Glass, RH |
| 68151C | Run, Front Door Glass, LH |
| 68170 | Weatherstrip Assy, Front Door Glass, Inner |
| 68610B | Check Assy, Front Door, RH |
| 68620 | Check Assy, Front Door, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
