Toyota Spacio

1998-05 → 2001-05 · chassis AE111 · catalogue 154240 · General

Discontinued model Data version 2002-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

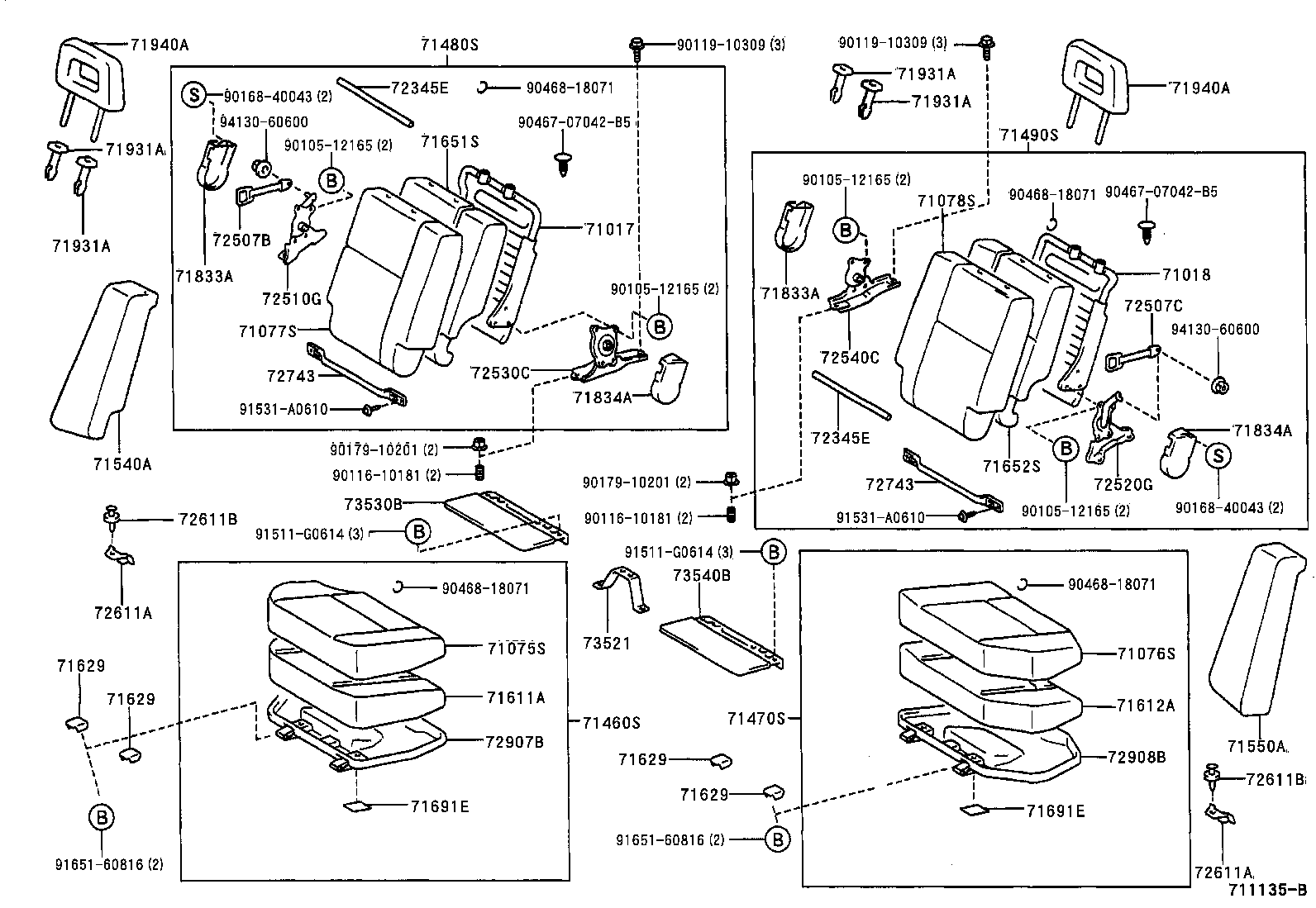

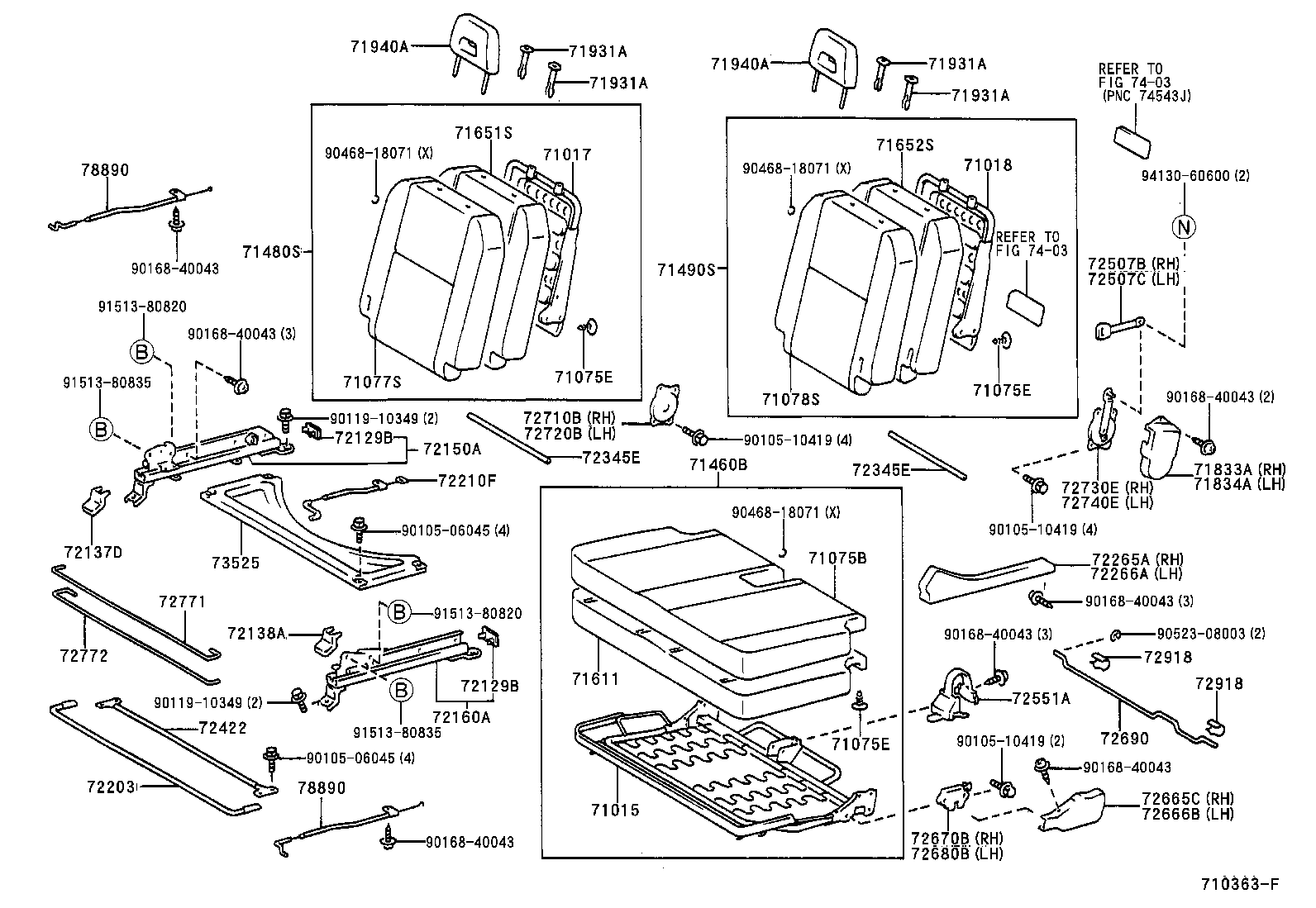

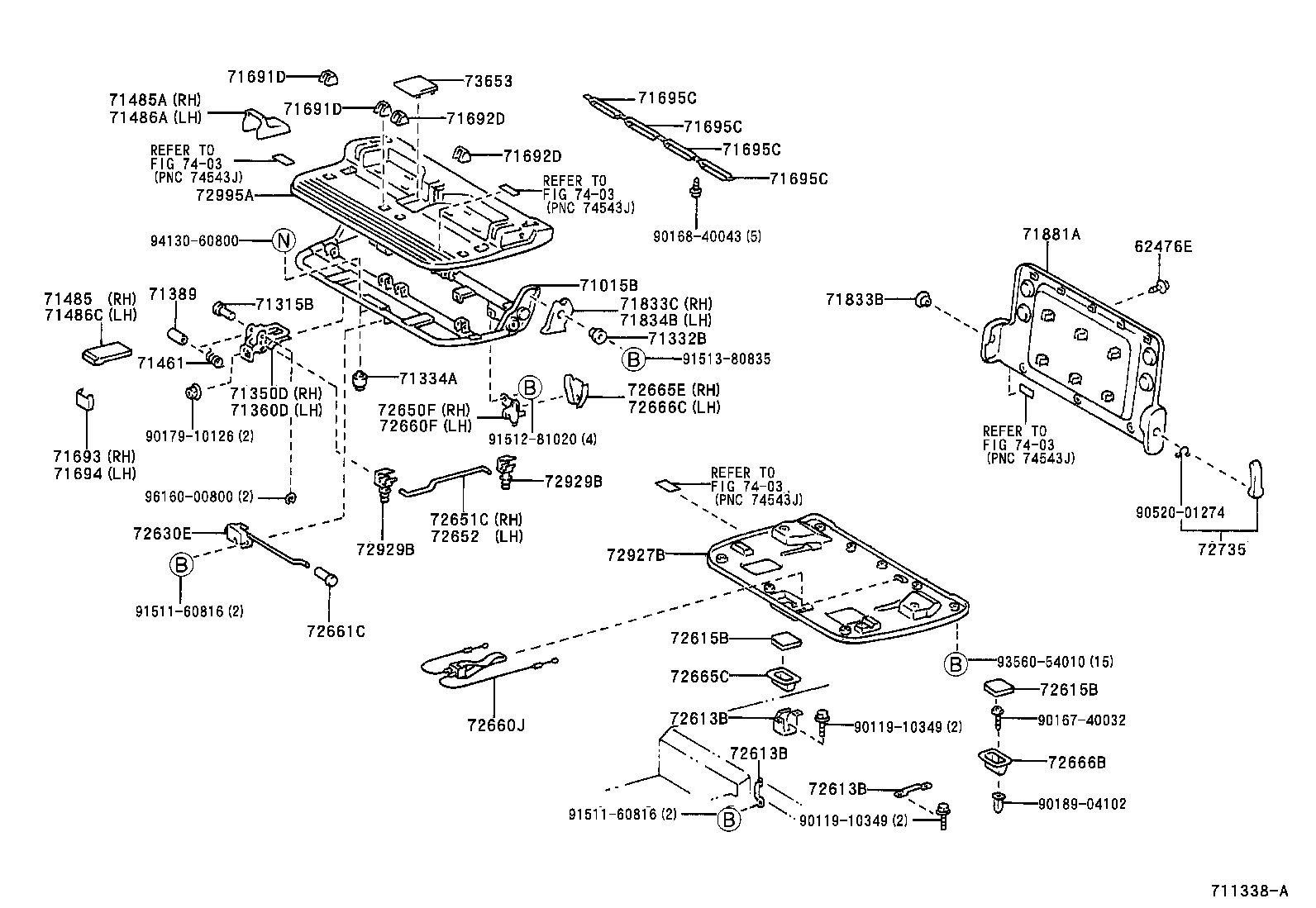

Rear Seat & Seat Track

135 part groups · 4 illustrations

Illustrations

Part groups

PNC	Description
62476E	Cap, Rear Seat
71015	Frame Sub-assy, Rear Seat Cushion
71015B	Frame Sub-assy, Rear Seat Cushion
71017	Frame Sub-assy, Rear Seatback, RH
71017A	Frame Sub-assy, Rear Seatback
71018	Frame Sub-assy, Rear Seatback, LH
71075A	Cover Sub-assy, Rear Seat Cushion, Front RH
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075D	Cover Sub-assy, Rear Seat Cushion, RH
71075E	Clip(FOR REAR SEAT)
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076A	Cover Sub-assy, Rear Seat Cushion, Front LH
71076D	Cover, Rear Seat Cushion, Rear LH
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077B	Cover, Rear Seatback (FOR BENCH TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71201A	Panel Assy, Rear Seat Cushion, Front RH(FOR SEPARATE TYPE)
71202C	Panel Assy, Rear Seat Cushion, Front LH(FOR SEPARATE TYPE)
71246A	Plate, Rear Seat Cushion Set
71301D	Hinge Sub-assy, Rear Seat, RH
71302D	Hinge Sub-assy, Rear Seat, LH
71315B	Pin, Rear Seat Hinge
71332B	Spacer, Rear Seatback Hinge
71334A	Stopper, Rear Seat Leg
71350D	Hinge Assy, Rear Seat, NO.2 RH
71360D	Hinge Assy, Rear Seat, NO.2 LH
71389	Spacer, Center Seat Hinge
71460B	Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460E	Cushion Assy, Rear Seat, Front RH
71460F	Cushion Assy, Rear Seat, Rear RH
71460S	Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71461	Spring, Rear Seat Cushion
71470E	Cushion Assy, Rear Seat, Front LH
71470F	Cushion Assy, Rear Seat, Rear LH
71470S	Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71480B	Back Assy, Rear Seat (FOR BENCH TYPE)
71480S	Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71485	Cover, Rear Seat Hinge
71485A	Cover, Rear Seat Hinge, NO.2 RH
71486A	Cover, Rear Seat Hinge, NO.2 LH
71486C	Cover, Rear Seat Hinge, LH
71490S	Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71540A	Back Assy, Rear Side Seat, RH
71550A	Back Assy, Rear Side Seat, LH
71611	Pad, Rear Seat Cushion
71611A	Pad, Rear Seat Cushion, RH
71611C	Pad, Rear Seat Cushion, Front RH(FOR SEPARATE TYPE)
71611D	Pad Sub-assy, Rear Seat Cushion, Rear RH(FOR SEPARATE TYPE)
71612	Pad, Rear Seat Cushion, Front LH(FOR SEPARATE TYPE)
71612A	Pad, Rear Seat Cushion, LH
71612D	Pad Sub-assy, Rear Seat Cushion, Rear LH(FOR SERPARATE TYPE)
71629	Cover, Rear Seat Cushion Hinge
71651B	Pad, Rear Seatback(FOR BENCH TYPE)
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71691D	Cover, Rear Seat Cushion Hinge, Upper RH
71691E	Cover, Rear Seat Cushion Hinge, NO.1
71692D	Cover, Rear Seat Cushion Hinge, Upper LH
71693	Cover, Rear Seat Cushion Hinge, Lower RH
71694	Cover, Rear Seat Cushion Hinge, Lower LH
71695C	Protector, Rear Seat, NO.1
71833A	Cover, Rear Seat Reclining, NO.1 RH
71833B	Clip (FOR REAR SEAT RECLINING COVER)
71833C	Cover, Rear Seat Reclining, NO.2 RH
71834A	Cover, Rear Seat Reclining, NO.1 LH
71834B	Cover, Rear Seat Reclining, NO.2 LH
71881A	Board, Rear Seatback
71931A	Support, Rear Seat Headrest
71931C	Support Assy, Rear NO.2 Seat Headrest
71940A	Headrest Assy, Rear Seat
72129B	Protector, Seat Track Lower Rail
72137D	Cover, Rear Seat Track, RH
72138A	Cover, Rear Seat Track, LH
72150A	Track Assy, Rear Seat, RH
72160A	Track Assy, Rear Seat, LH
72203	Handle Sub-assy, Rear Seat Track
72210F	Cable Assy, Seat Track Control
72265A	Cover, Seat Track Upper Rail, RH
72266A	Cover, Seat Track Upper Rail, LH
72345E	Pipe, Reclining Connecting
72422	Rod, Vertical Adjuster
72507B	Handle Sub-assy, Reclining Release, RH
72507C	Handle Sub-assy, Reclining Release, LH
72510G	Adjuster Assy, Rear Reclining Seat, Outer RH
72520G	Adjuster Assy, Rear Reclining Seat, Outer LH
72530C	Adjuster Assy, Rear Reclining Seat, Inner RH
72540C	Adjuster Assy, Rear Reclining Seat, Inner LH
72551A	Cover, Reclining Hinge
72611A	Base, Rear Seat Lock
72611B	Clip(FOR REAR SEAT LOCK BASE)
72613B	Striker, Rear Seat Lock
72615B	Cover, Rear Seat Lock Striker, RH
72630E	Lock Assy, Rear NO.1 Seat
72650F	Lock Assy, Rear Seat, RH
72651C	Rod, Rear Seat Lock, RH
72652	Rod, Rear Seat Lock, LH
72660F	Lock Assy, Rear Seat, LH
72660J	Cable Assy, Rear NO.2 Seat Cushion Lock
72661C	Button, Rear Seatback Lock Release
72665C	Cover, Rear Seat Lock, RH
72665E	Cover, Rear Seat Lock, NO.2 RH
72666B	Cover, Rear Seat Lock, LH
72666C	Cover, Rear Seat Lock, NO.2 LH
72670B	Lock Assy, Rear Seat Cushion, RH
72670C	Lock Assy, Rear Seat Cushion, NO.2 RH
72680B	Lock Assy, Rear Seat Cushion, LH
72680C	Lock Assy, Rear Seat Cushion, NO.2 LH
72690	Lever Assy, Seat Cushion Lock Release
72694B	Cover, Rear Seat Cushion Lock, RH
72694C	Cover, Rear Seat Cushion Lock, LH
72710B	Adjuster Assy, Rear Seatback, Inner RH
72720B	Adjuster Assy, Rear Seatback, Inner LH
72730E	Adjuster Assy, Rear Seatback, Outer RH
72735	Lever, Rear Seat Reclining Release
72740E	Adjuster Assy, Rear Seatback, Outer LH
72743	Rod, RR Seat Reclining
72771	Spring, Rear Seat Turn NO.1
72772	Spring, Rear Seat Turn NO.2
72803B	Board Sub-assy, Rear Seat Armrest Hole
72839	Shim, Rear Seat Armrest Hinge
72878A	Cover, Seat Armrest, NO.2 LH
72878B	Cover, Seat Armrest, LH
72907B	Cover Sub-assy, Rear Seat Cushion Under, RH
72908B	Cover Sub-assy, Rear Seat Cush Under, LH
72918	Cover, 3RD Seat Cushion Lock
72927B	Cover, Rear Seat Cushion Under
72929B	Holder, Rear Seat Cushion Band
72995A	Cover, Rear Seat
73521	Bracket, RR Seat Sub Floor
73525	Panel, Rear Seat Sub Floor
73530B	Panel Assy, Rear Seat Sub Floor, RH
73540B	Panel Assy, Rear Seat Sub Floor, LH
73653	Cover, Rear Seat Belt Inner Anchor, RH
78890	Cable Assy, Sub Seat Lock Control

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
