Toyota Spacio

1998-05 → 2001-05 · chassis AE111 · catalogue 154240 · General

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

12 part groups · 2 illustrations

Illustrations

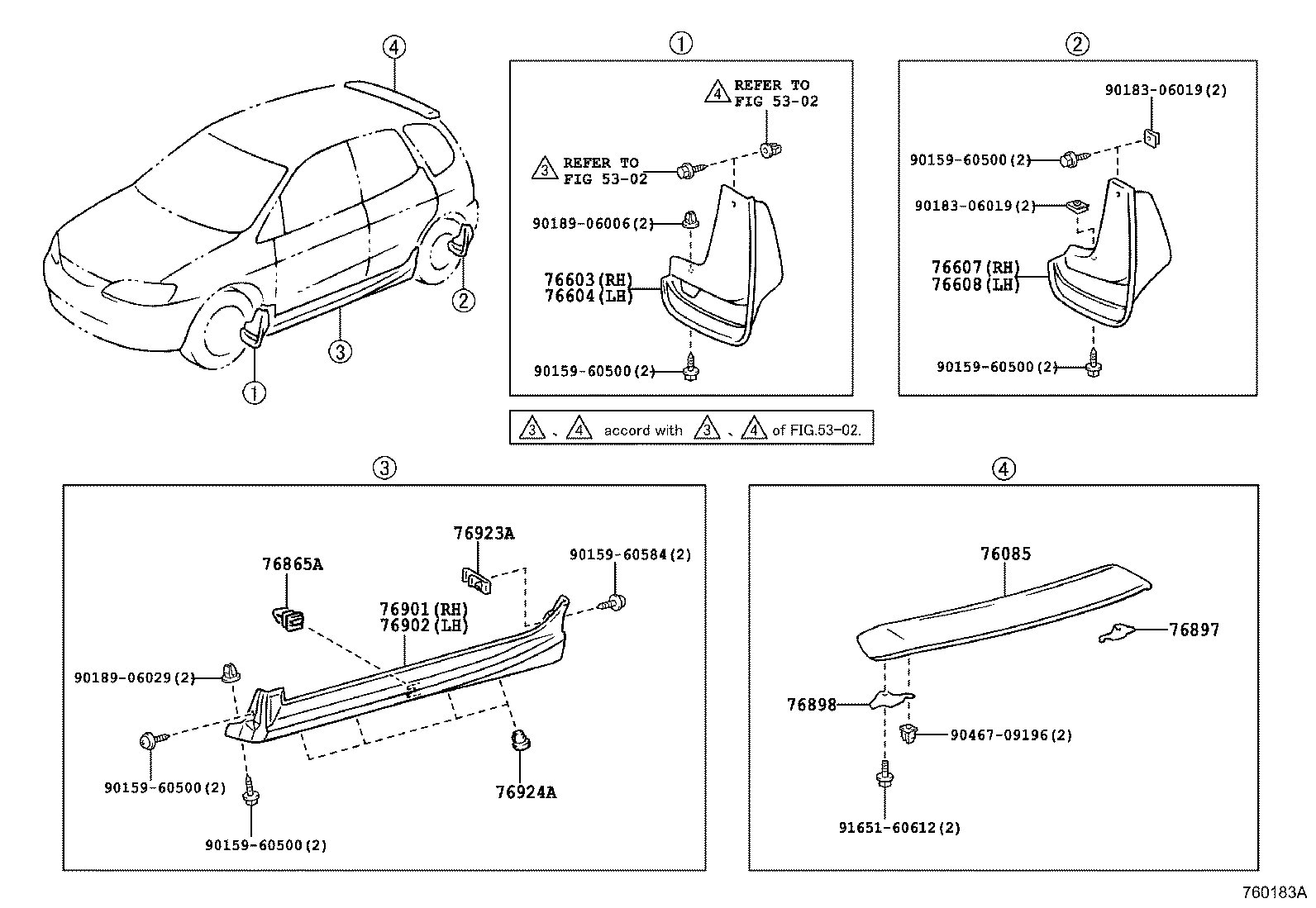

Figure 760132 760132 1998-05 → 1999-04 Figure 760183A 760183A 1999-04 → —

Part groups

PNCDescription
76085 Spoiler Sub-assy, Rear
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76865A Retainer, Side Mudguard
76897 Protector, Rear Spoiler, Side RH
76898 Protector, Rear Spoiler, Side LH
76901 Mudguard Sub-assy, Side, RH
76902 Mudguard Sub-assy, Side, LH
76923A Retainer, Side Mudguard
76924A Retainer, Side Mudguard, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
