Toyota Spacio

1998-05 → 2001-05 · chassis AE111 · catalogue 154240 · General

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

12 part groups · 2 illustrations

Illustrations

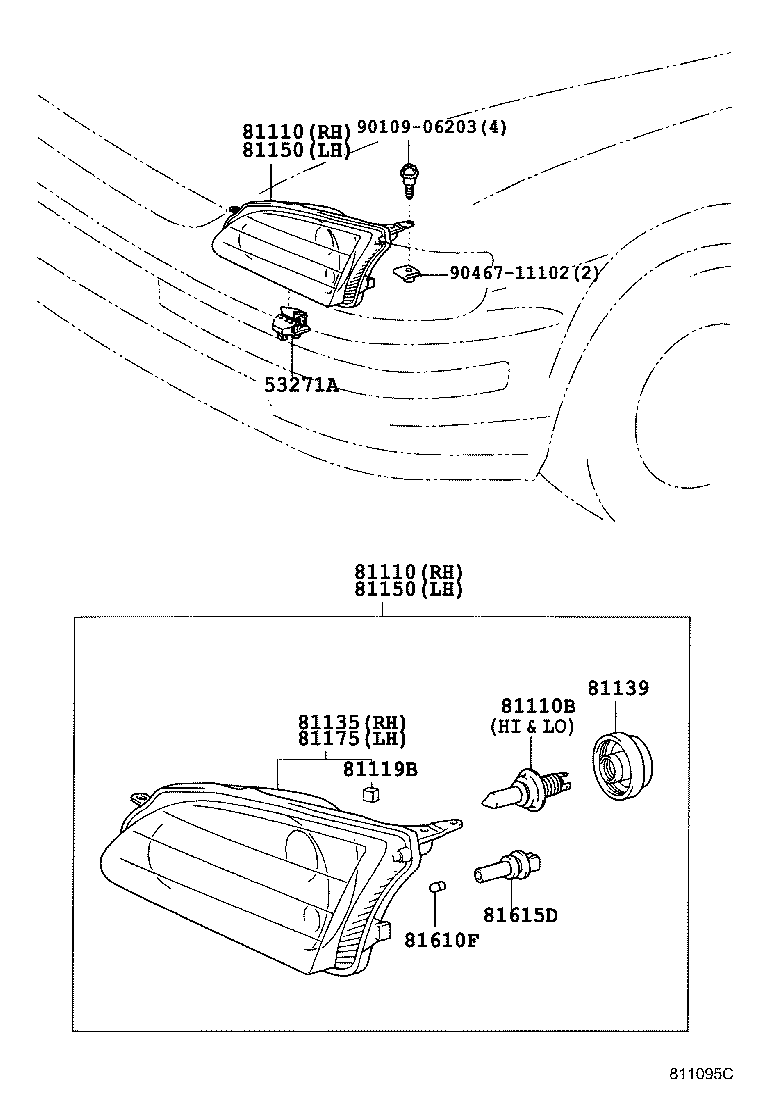

Figure 810228E 810228E 1998-05 → 1999-04 Figure 811095C 811095C 1999-04 → —

Part groups

PNCDescription
53271A Bracket, Headlamp Mounting
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110M Shade, Bulb, RH
81119B Filter, Headlamp
81135 Unit Assy, Headlamp, RH
81139 Cover, Headlamp Socket
81150 Headlamp Assy, LH
81150M Shade, Bulb, LH
81175 Unit Assy, Headlamp, LH
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
