Toyota Spacio
1998-05 → 2001-05 · chassis AE111 · catalogue 154240 · General
Discontinued model
Data version 2002-01
Wiring & Clamp
36 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 82001 | Cable, Bond, NO.1 |
| 82111 | Wire, Engine Room Main |

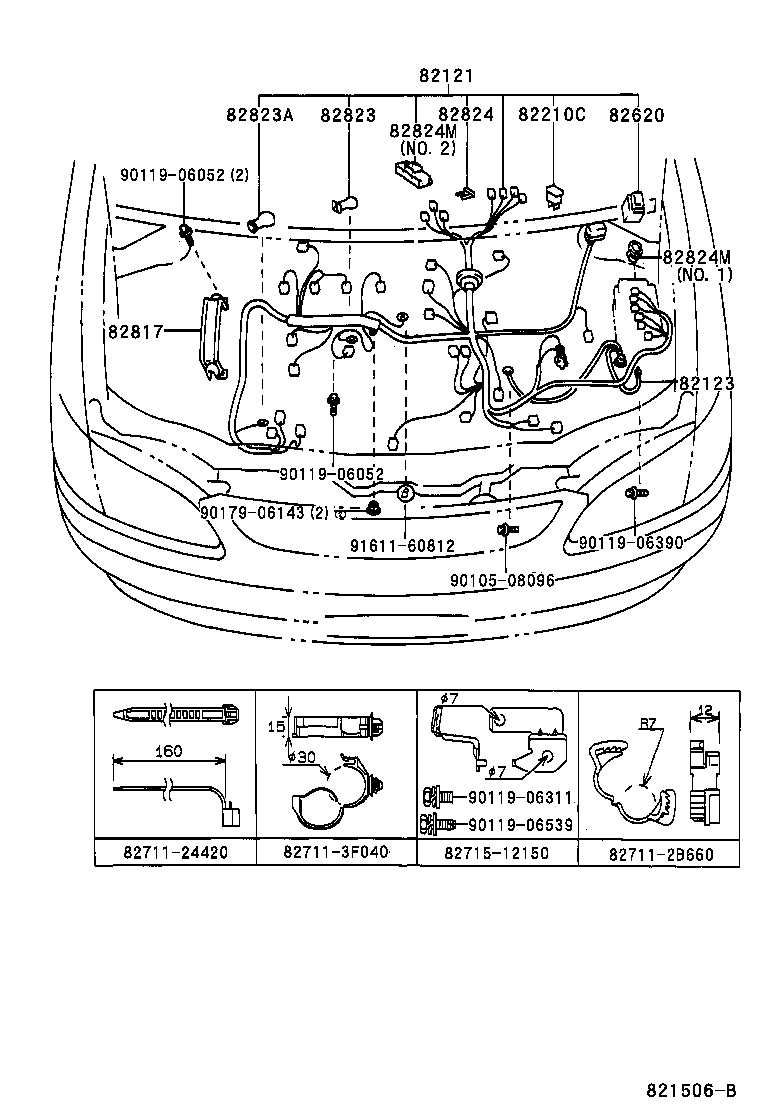

| 82121 | Wire, Engine |
| 82123 | Wire, Engine, NO.3 |
| 82131 | Wire, Cowl |

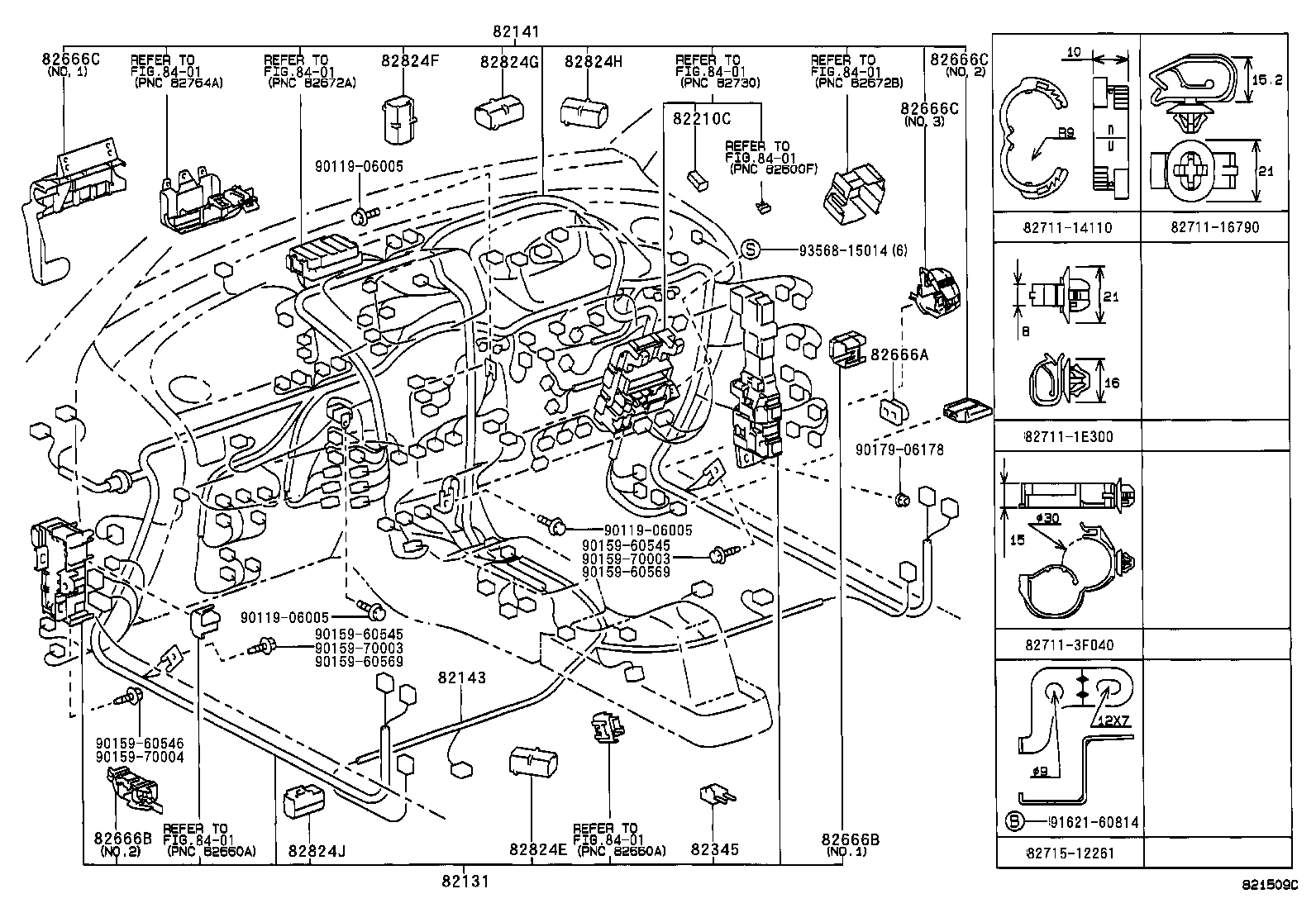

| 82141 | Wire, Instrument Panel |
| 82143 | Wire, Instrument Panel, NO.3 |

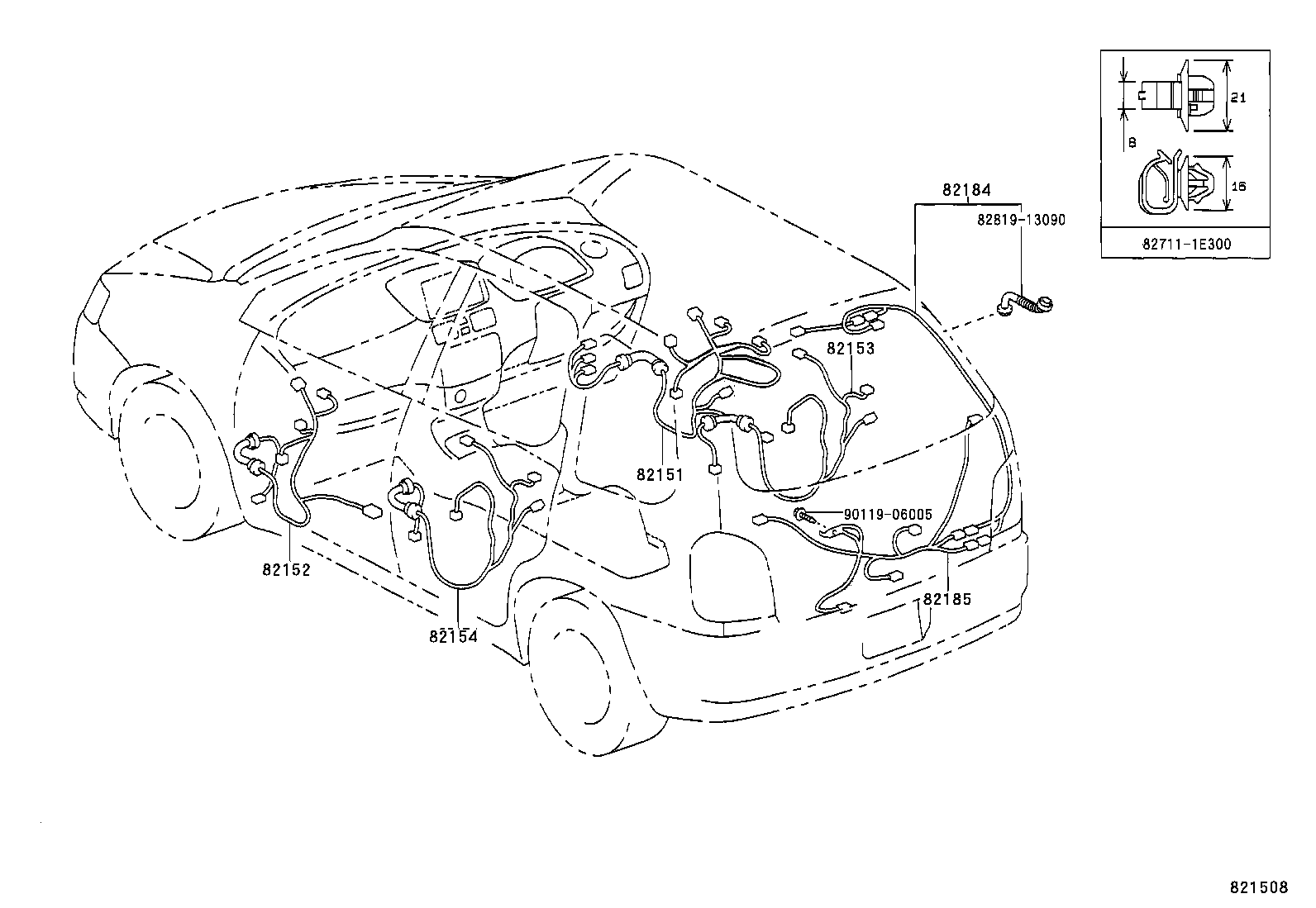

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |

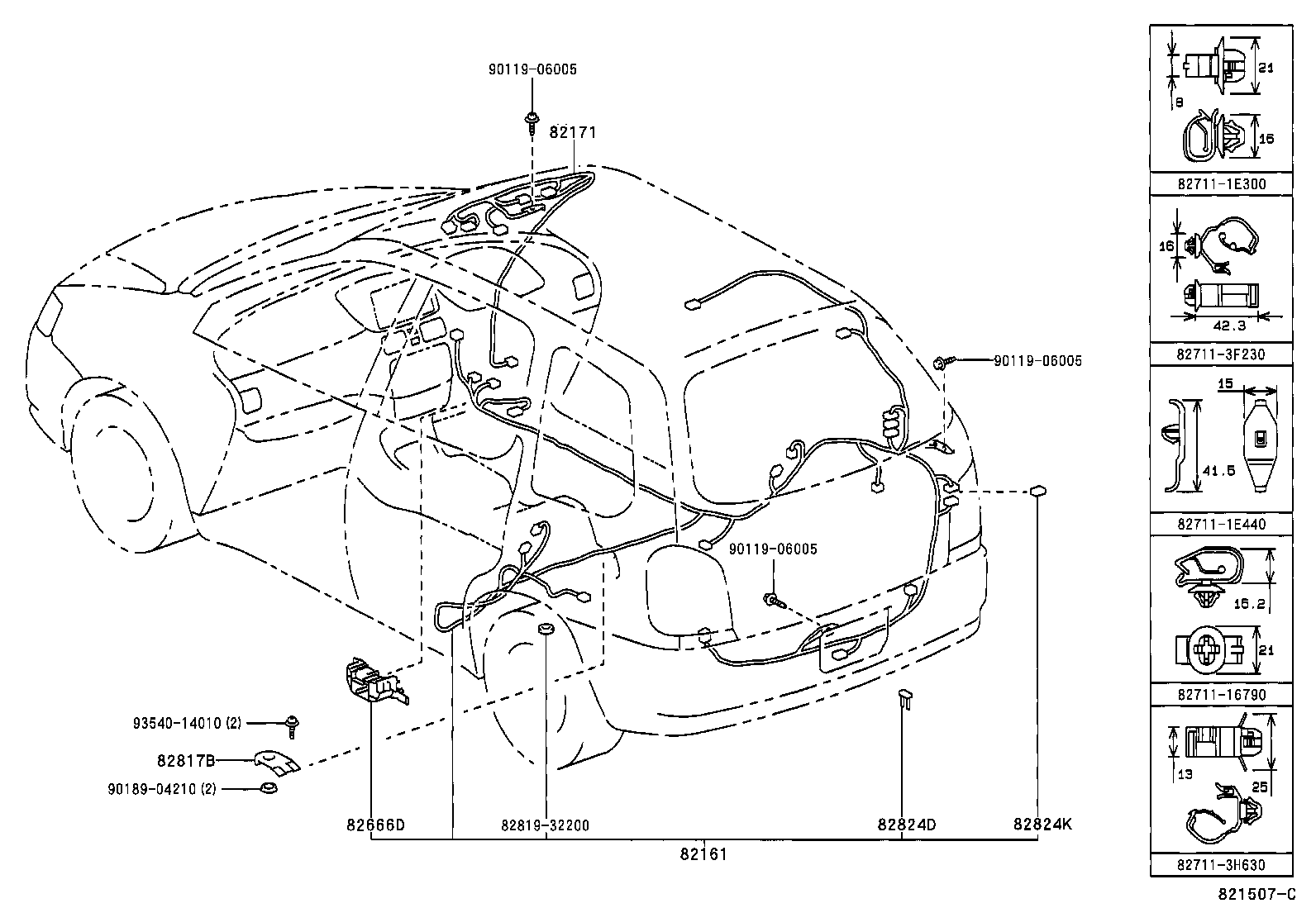

| 82161 | Wire, Floor |
| 82171 | Wire, Roof, NO.1 |
| 82184 | Wire, Back Door, NO.1 |
| 82185 | Wire, Back Door, NO.2 |
| 82210C | Fusible Link |
| 82345 | Diode |
| 82620 | Block Assy, Fusible Link |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82823 | Cap, Terminal, NO.1 |
| 82823A | Cap, Terminal, NO.2 |
| 82824 | Connector, Wiring Harness |
| 82824D | Connector, Wiring Harness |
| 82824E | Connector, Wiring Harness |
| 82824F | Connector, Wiring Harness |
| 82824G | Connector, Wiring Harness |
| 82824H | Connector, Wiring Harness |
| 82824J | Connector, Wiring Harness |
| 82824K | Connector, Wiring Harness |
| 82824M | Connector, Wiring Harness |
| 82991 | Wire, Fusible Link Repair |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
