Toyota Spacio
1998-05 → 2001-05 · chassis AE111 · catalogue 154240 · General
Discontinued model
Data version 2002-01
Heating & Air Conditioning - Heater Unit & Blower
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55907C | Cable Sub-assy, Water Valve Control |
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87106A | Servo Sub-assy, Damper |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87126A | Clamp, Heater Control |
| 87126B | Clamp, Heater Control |

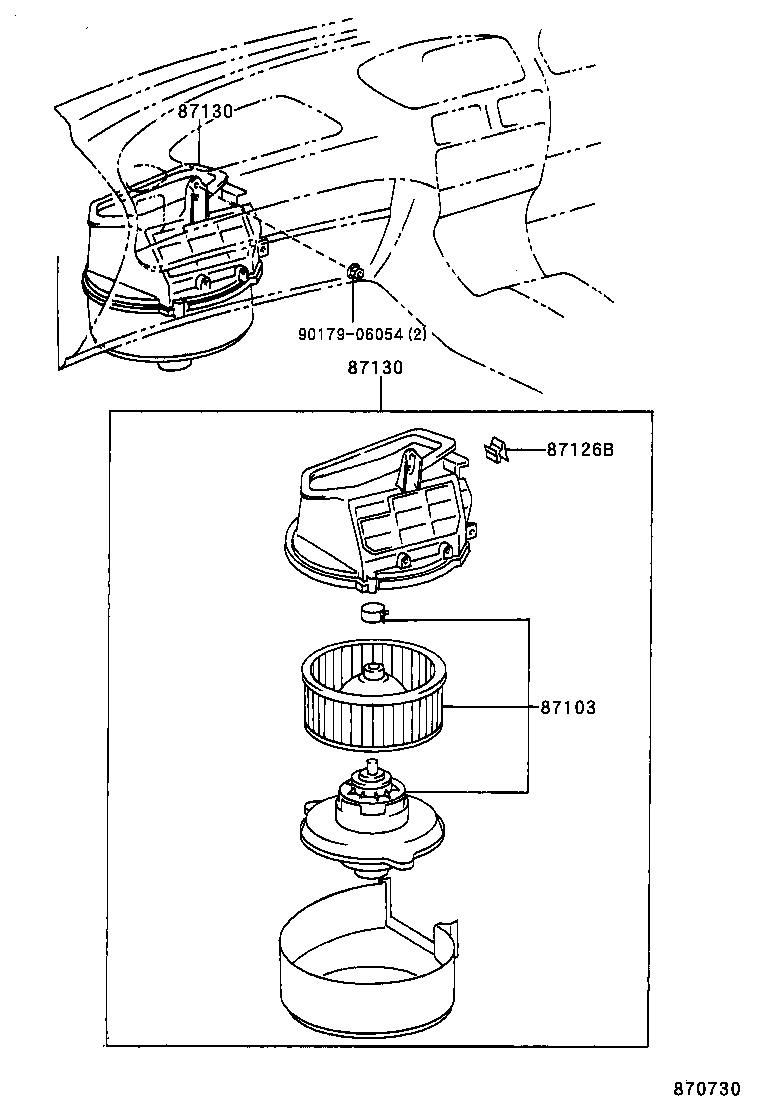

| 87130 | Blower Assy, Heater, Front |

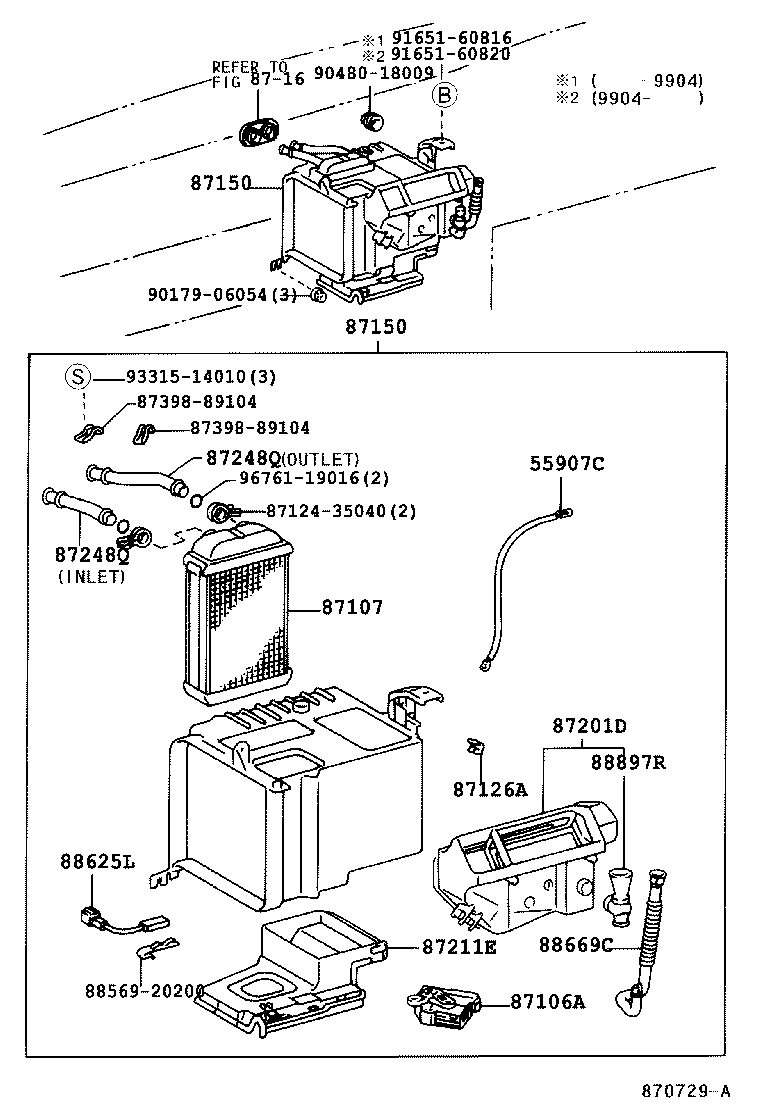

| 87150 | Radiator Assy, Heater |
| 87201D | Duct Sub-assy, Air |
| 87211E | Duct, Air |
| 87248Q | Pipe, Front Heater Radiator Water |
| 88625L | Thermistor, Cooler |
| 88669C | Hose, Air |
| 88897R | Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
