Toyota Spacio
1998-05 → 2001-05 · chassis AE111 · catalogue 154240 · General
Discontinued model
Data version 2002-01
Heating & Air Conditioning - Control & Air Duct
24 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55538F | Cover, Cooler Switch Hole |
| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55846A | Duct, Heater TO Register, NO.4 |

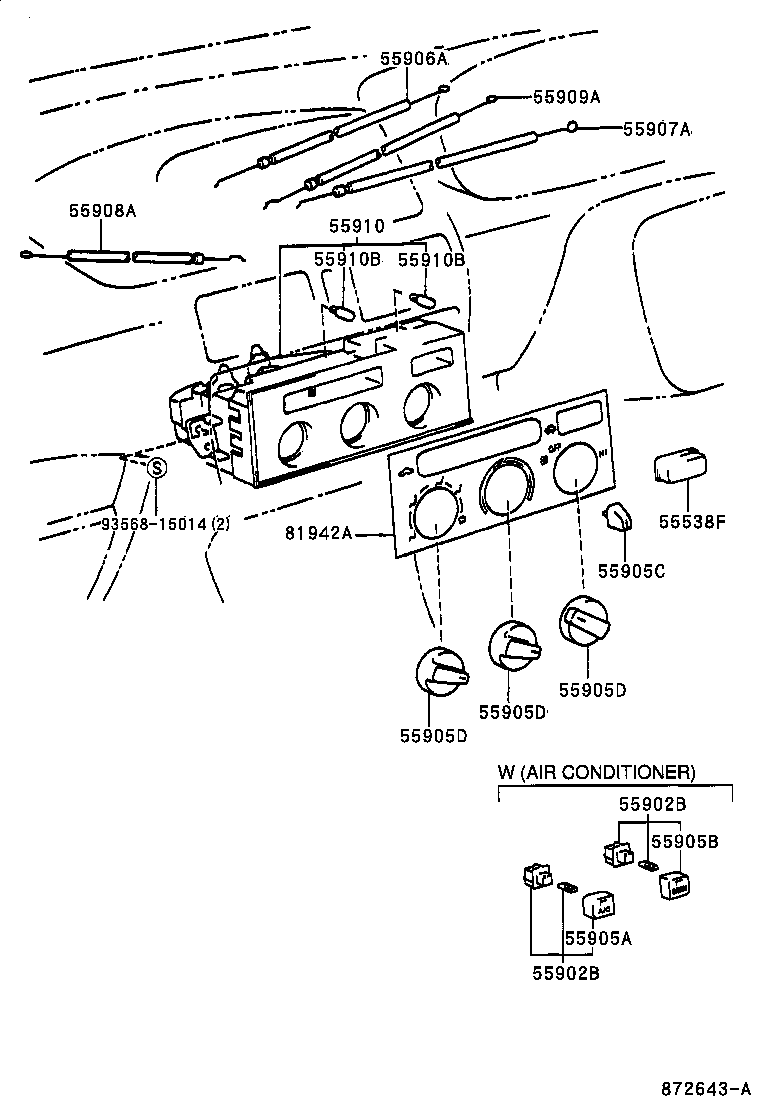

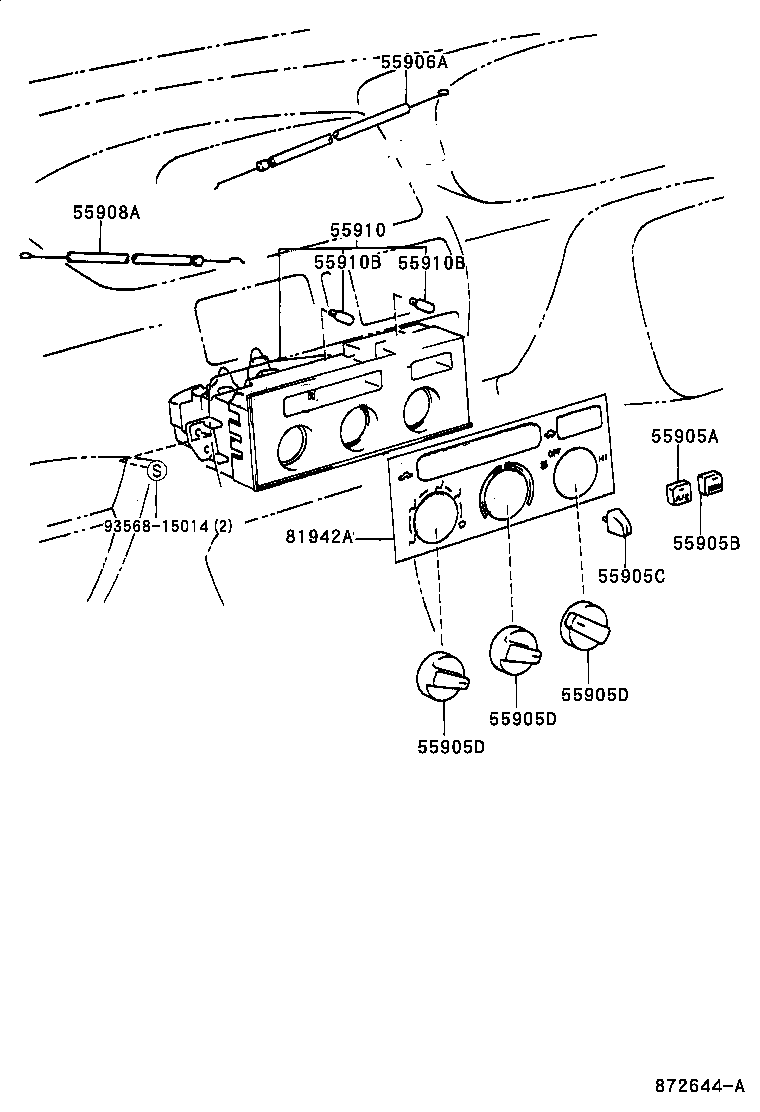

| 55902B | Control Sub-assy, Heater |
| 55905A | Knob, Heater Control |
| 55905B | Knob, Heater Control, NO.2 |
| 55905C | Knob, Heater Control, NO.3 |
| 55905D | Knob Sub-assy, Control |
| 55906A | Cable Sub-assy, Defroster Damper Control |
| 55907A | Cable Sub-assy, Water Valve Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55910 | Control Assy, Heater OR Boost Ventilator |
| 55910B | Bulb, Heater Control |
| 81942A | Sheet, Heater Control Name, NO.1 |
| 87138B | Resistor, Heater Blower |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87217A | Duct, Air, Rear NO.6 |
| 88539F | Hose, Drain |

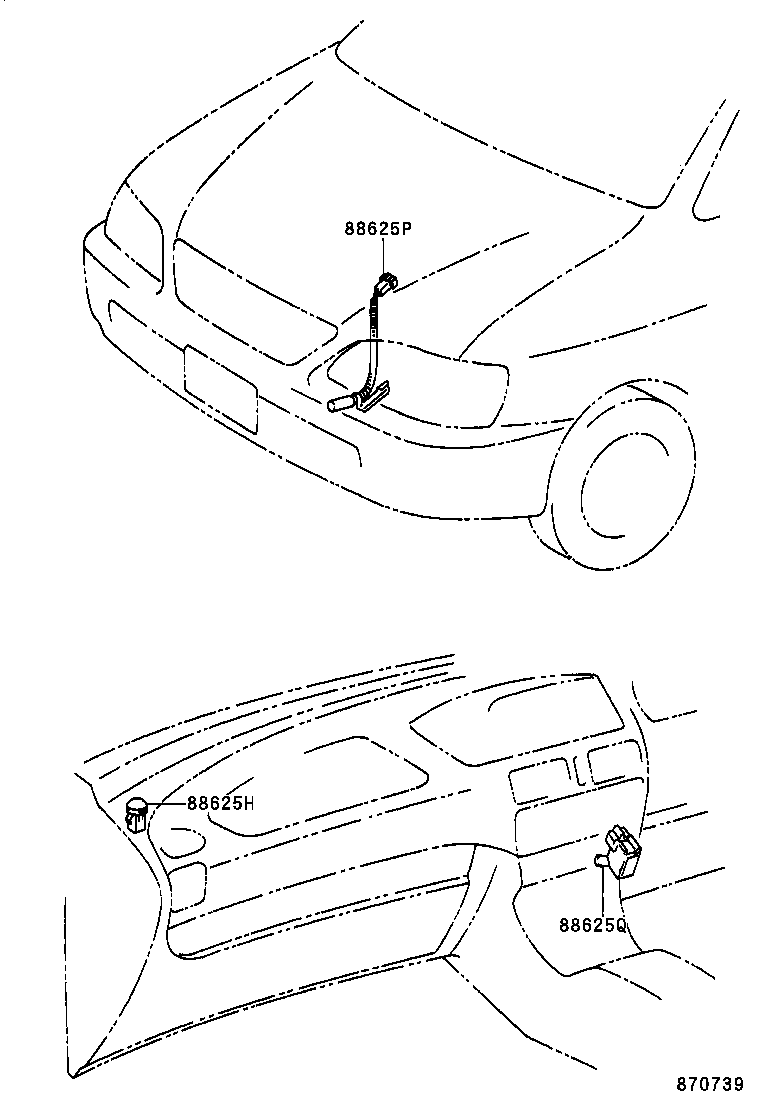

| 88625H | Thermistor, Cooler (SOLAR SENSOR) |
| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
