Toyota Rukus

2010-03 → 2015-12 · chassis AZE151 · catalogue 154360 · General

Supported model Data version 2016-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

3 part groups · 2 illustrations

Illustrations

Figure 163477D

163477D 2010-03 → —

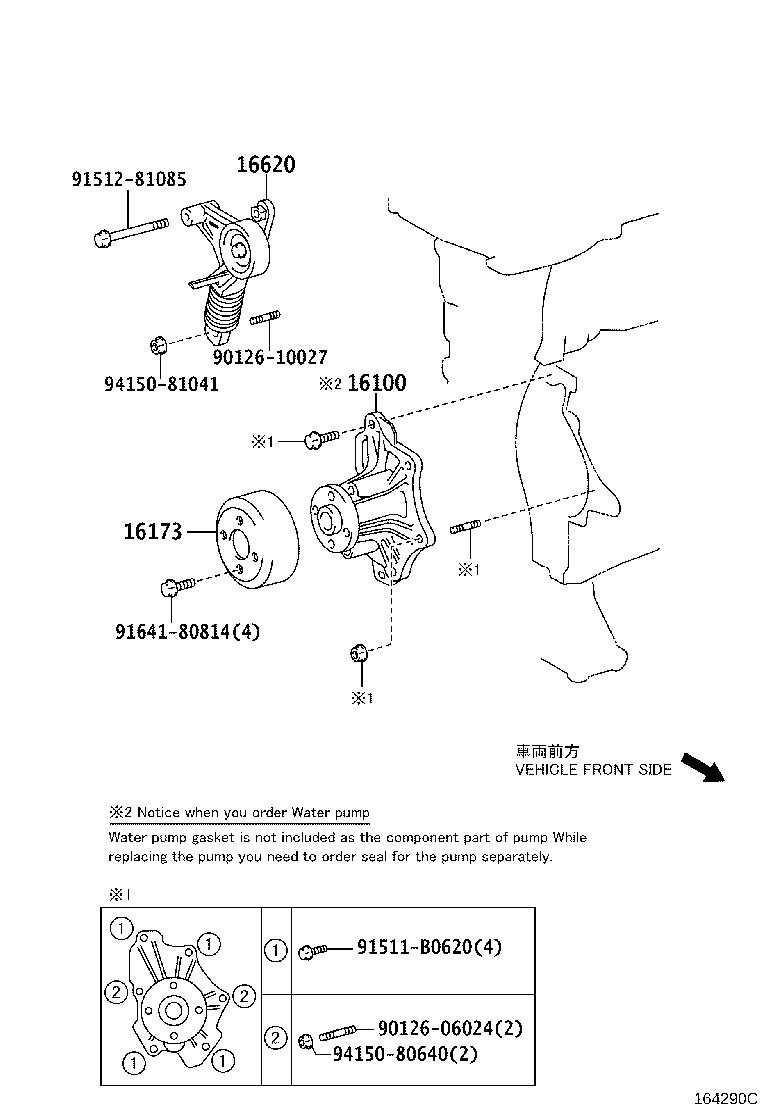

Figure 164290C

164290C 2010-11 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16173	Pulley, Water Pump
16620	Tensioner Assy, V-ribbed Belt

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
