Toyota Rukus
2010-03 → 2015-12 · chassis AZE151 · catalogue 154360 · General
Supported model
Data version 2016-06

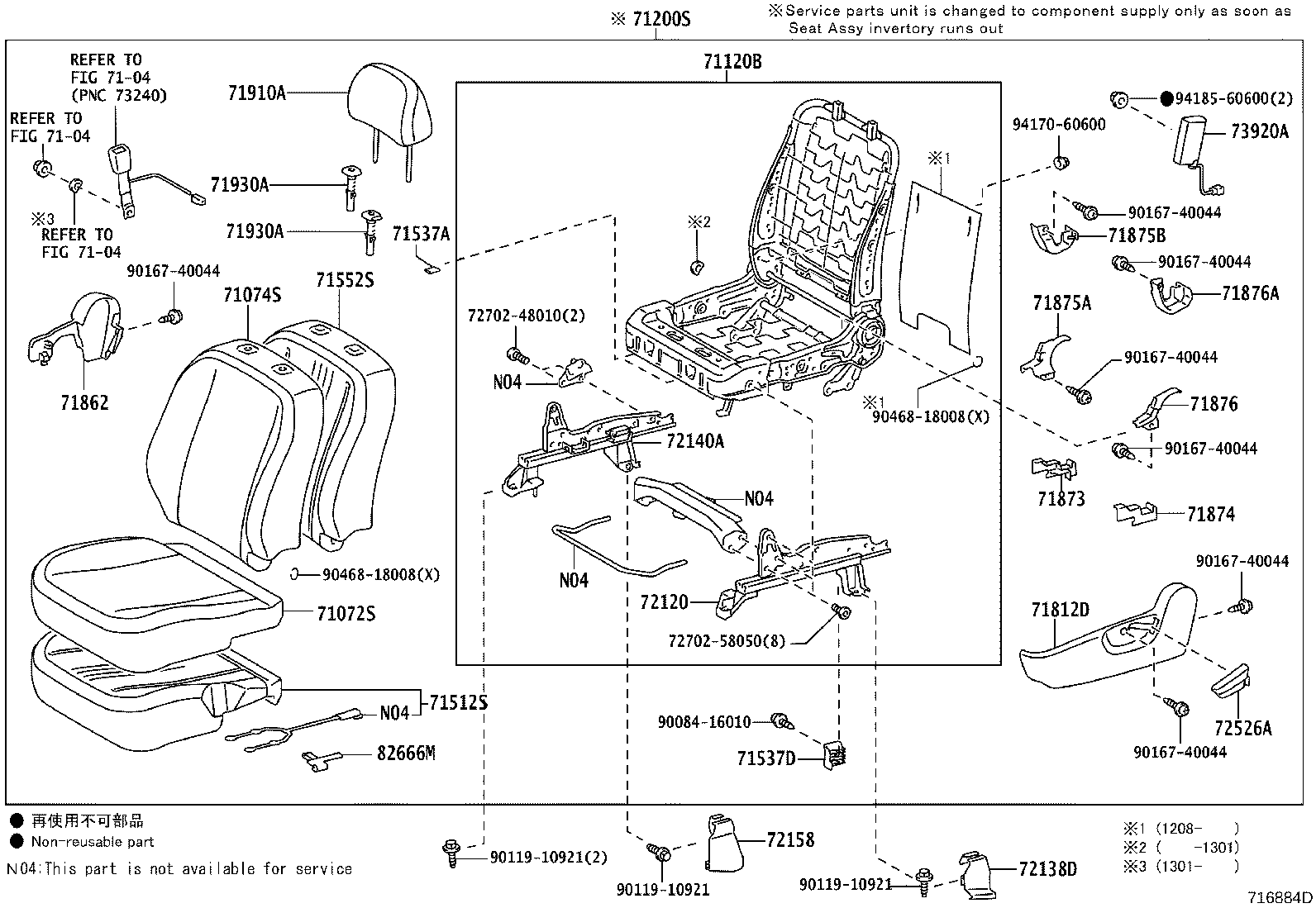

Front Seat & Seat Track
42 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71100S | Seat Assy, Front RH |
| 71110A | Frame Assy, Front Seat W/Adjuster, RH |
| 71120B | Frame Assy, Front Seat W/Adjuster, LH |
| 71200S | Seat Assy, Front LH |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537A | Protector, Front Seat Cushion |
| 71537C | Protector, Front Seat Cushion Edge, RH |
| 71537D | Protector, Front Seat Cushion Edge, LH |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71875B | Cover, Reclining Adjuster Inside, RH |
| 71876 | Cover, Reclining Adjuster Inside, LH |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71910A | Headrest Assy, Front Seat |
| 71930A | Support Assy, Front Seat Headrest |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72120 | Track Assy, Front Seat, Outer LH |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72137G | Cover, Seat Track, Outer RH |
| 72138D | Cover, Seat Track, Outer, LH |
| 72140A | Track Assy, Front Seat,Inner LH |
| 72157 | Cover, Seat Track Bracket, Inner |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72462 | Cover, Vertical Adjuster RH |
| 72494 | Handle, Vertical Adjusting, RH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 82666M | Holder, Connector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
