Toyota Corolla (ASIA/INDIA)

2001-03 → 2008-08 · chassis NZE120,ZZE12# · catalogue 156350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

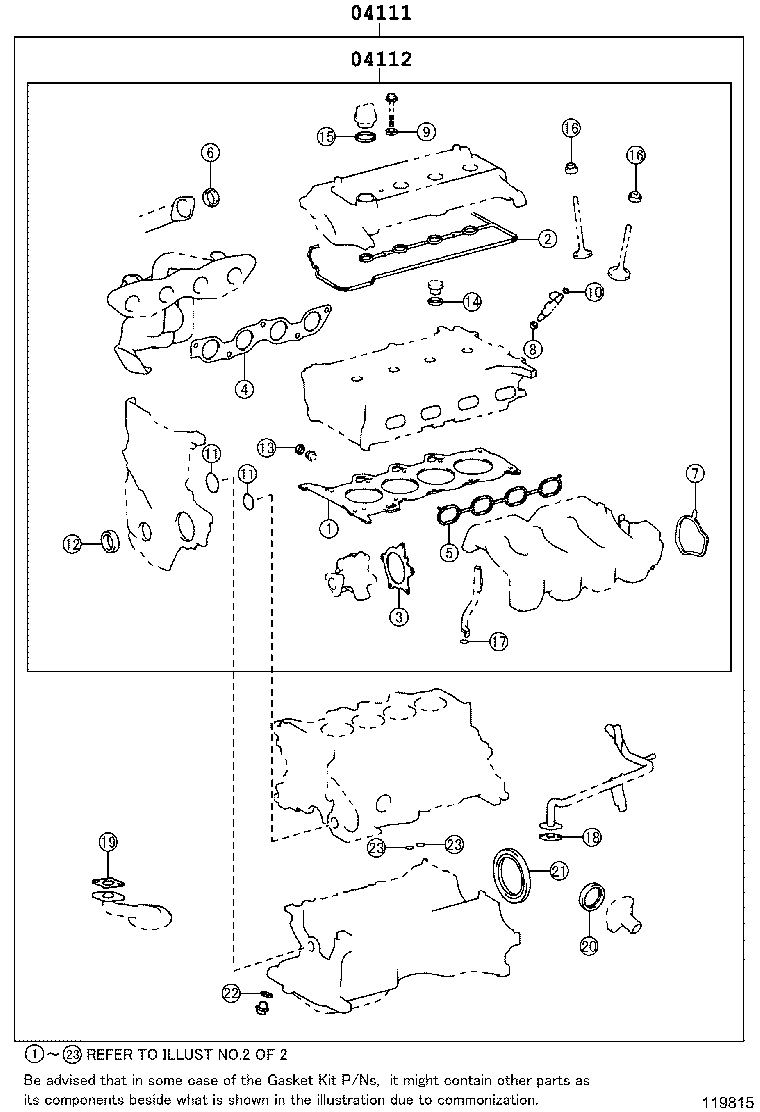

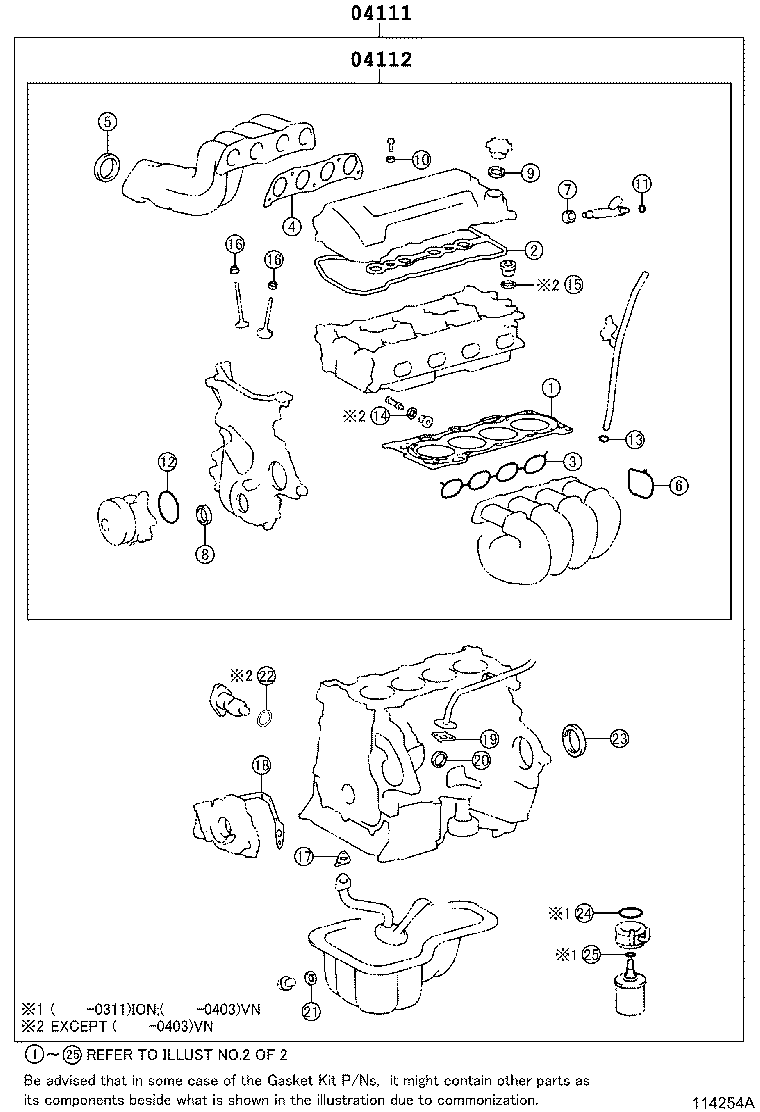

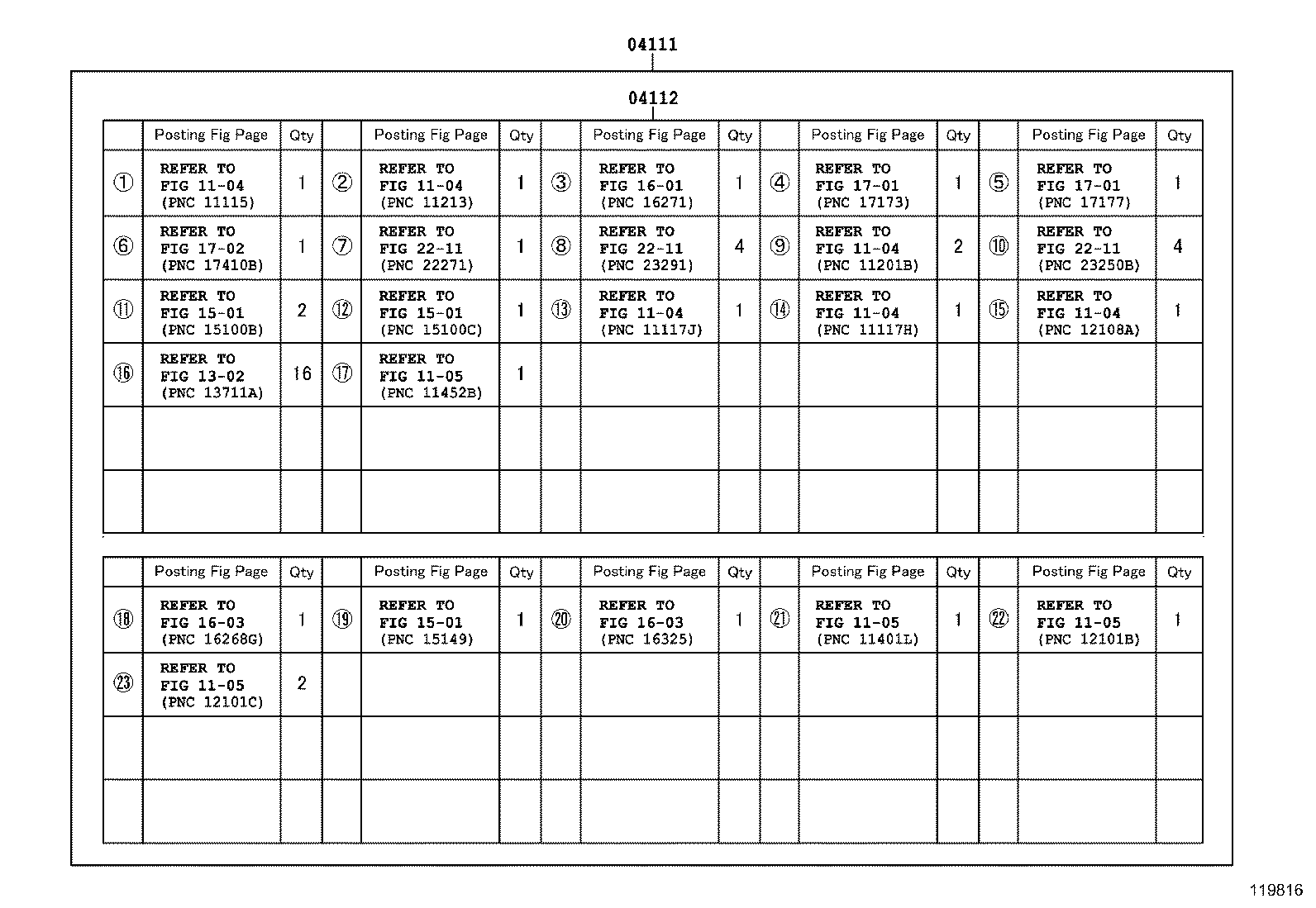

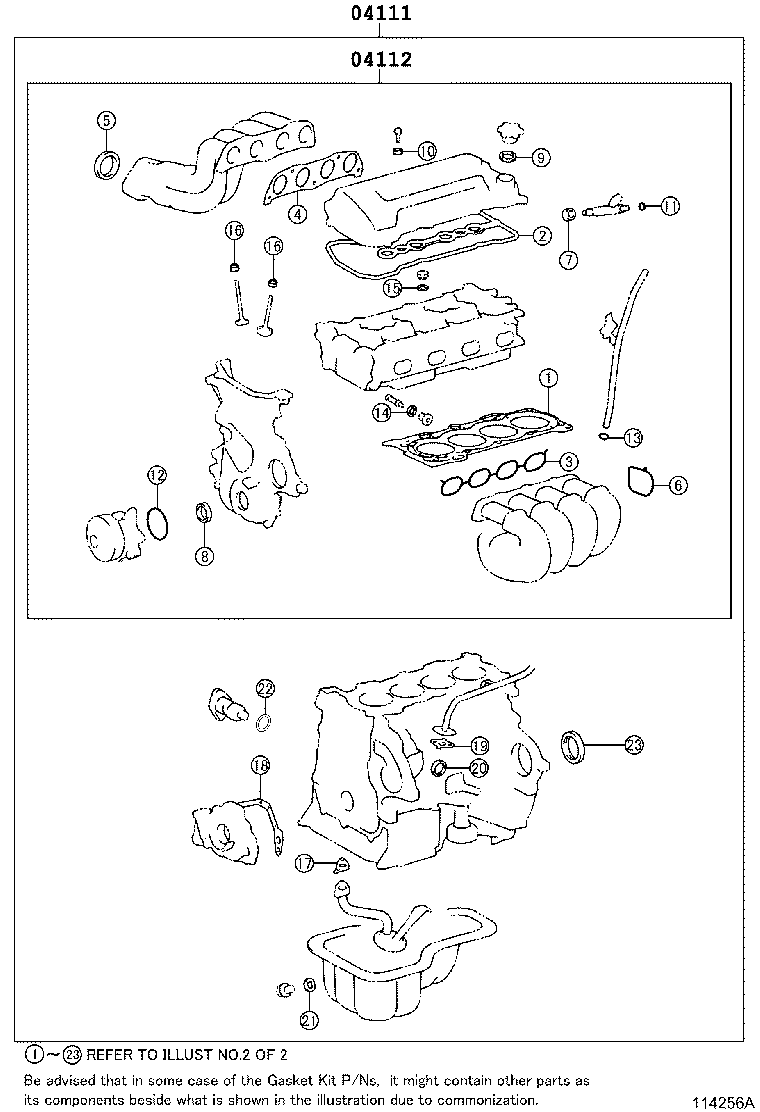

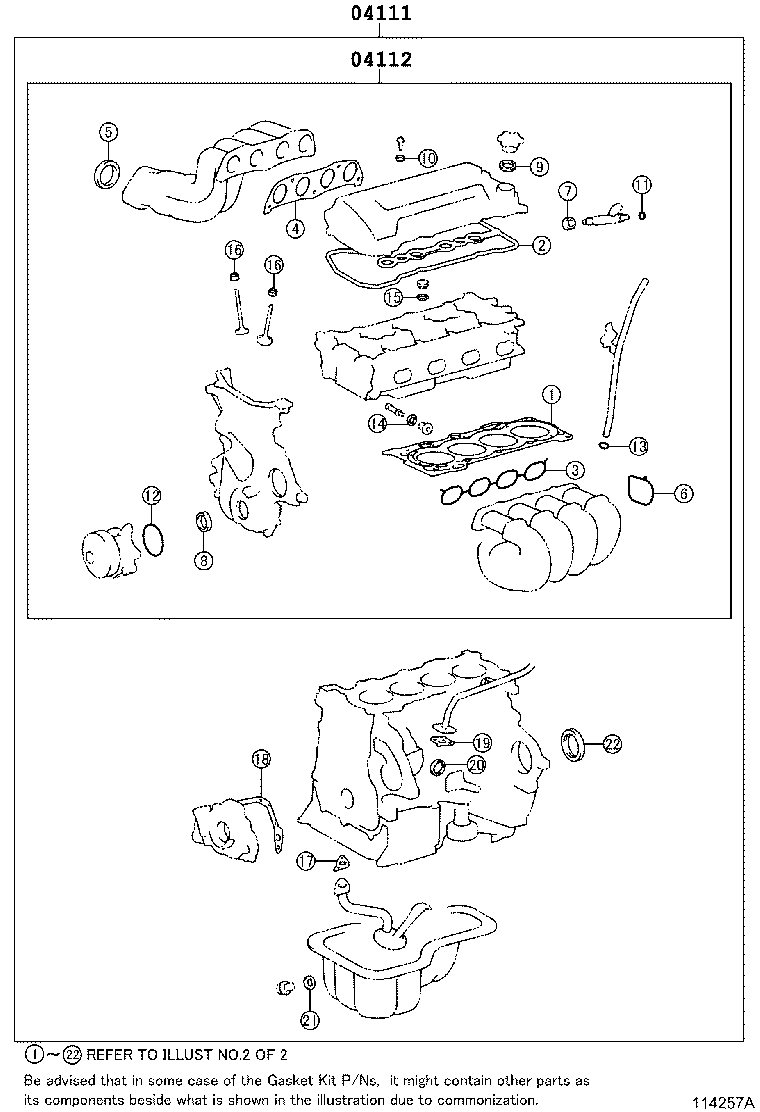

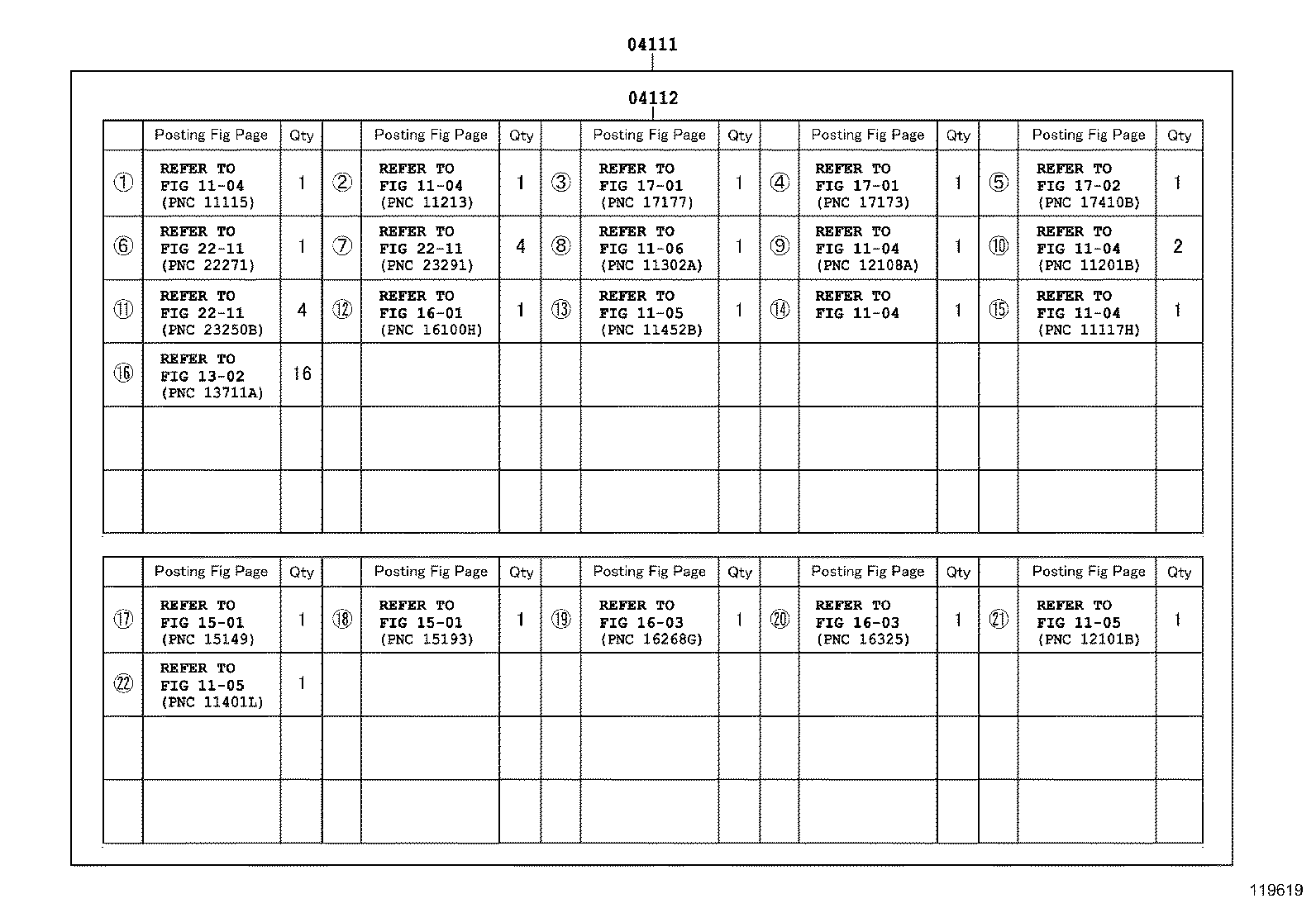

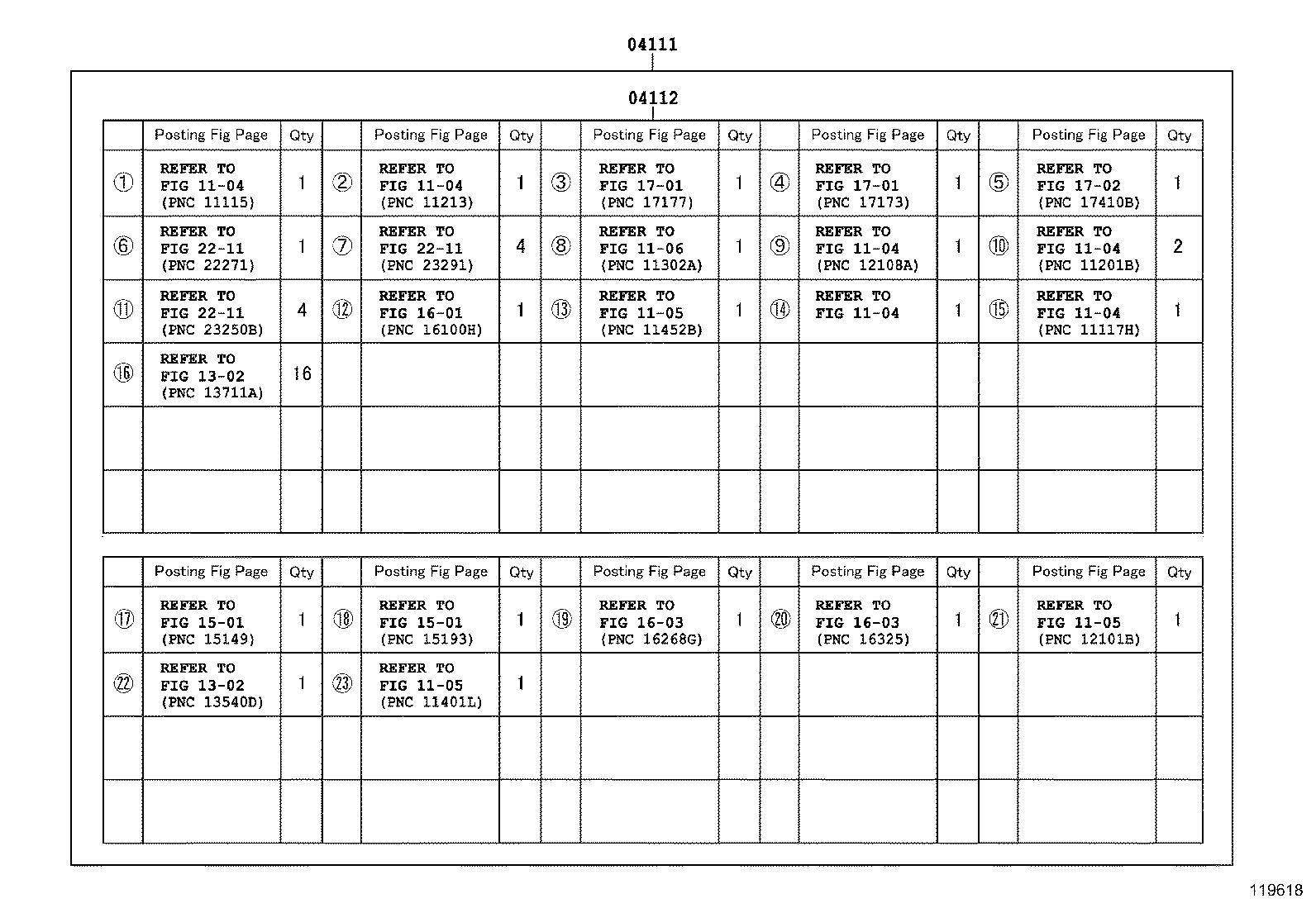

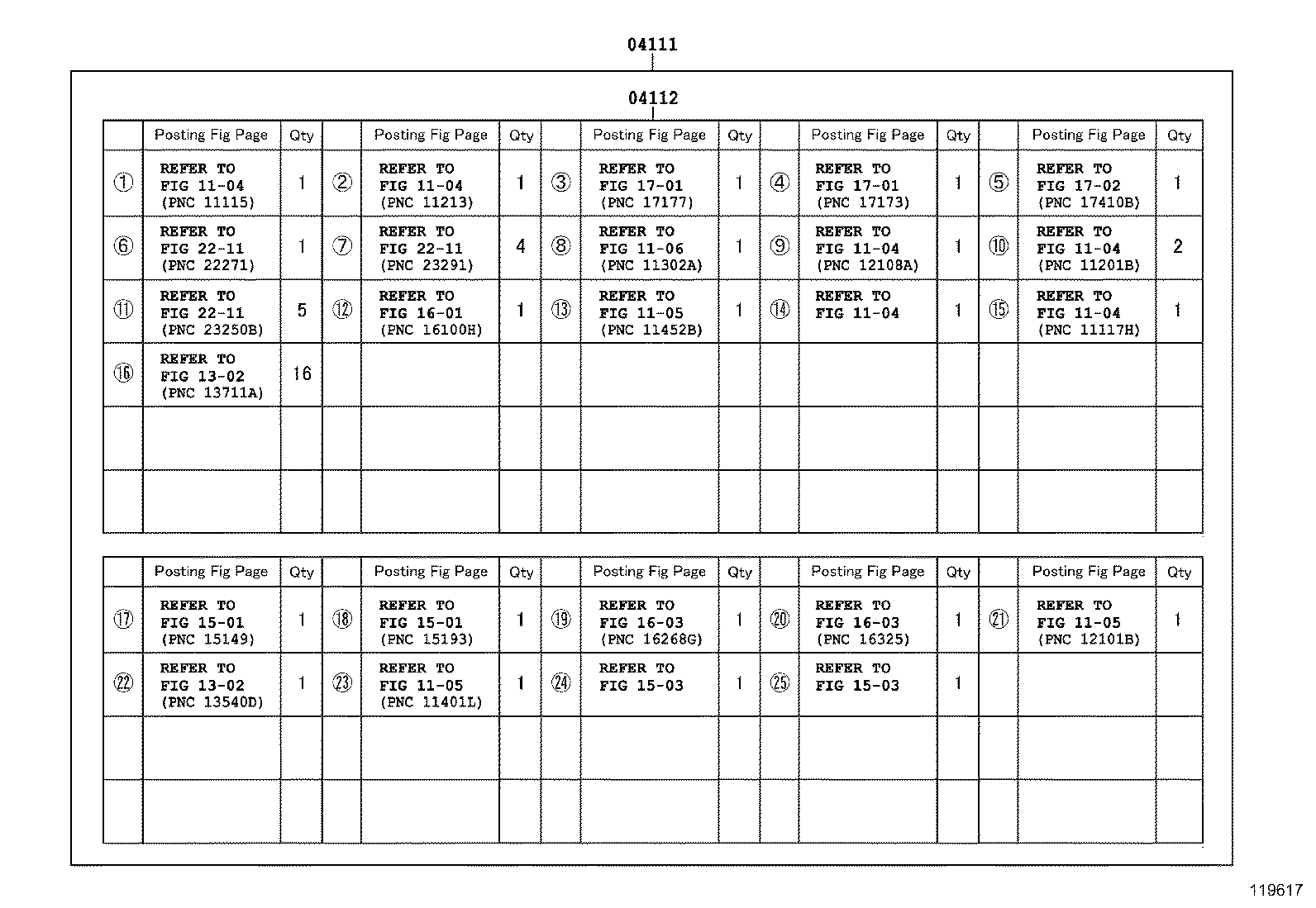

Figure 119815 119815 2001-07 → — Figure 119816 119816 2001-07 → — Figure 114254A 114254A 2001-03 → — Figure 119617 119617 2001-03 → — Figure 114256A 114256A 2001-03 → — Figure 119618 119618 2001-03 → — Figure 114257A 114257A 2001-03 → — Figure 119619 119619 2001-03 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
