Toyota Corolla (ASIA/INDIA)

2001-03 → 2008-08 · chassis NZE120,ZZE12# · catalogue 156350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

28 part groups · 11 illustrations

Illustrations

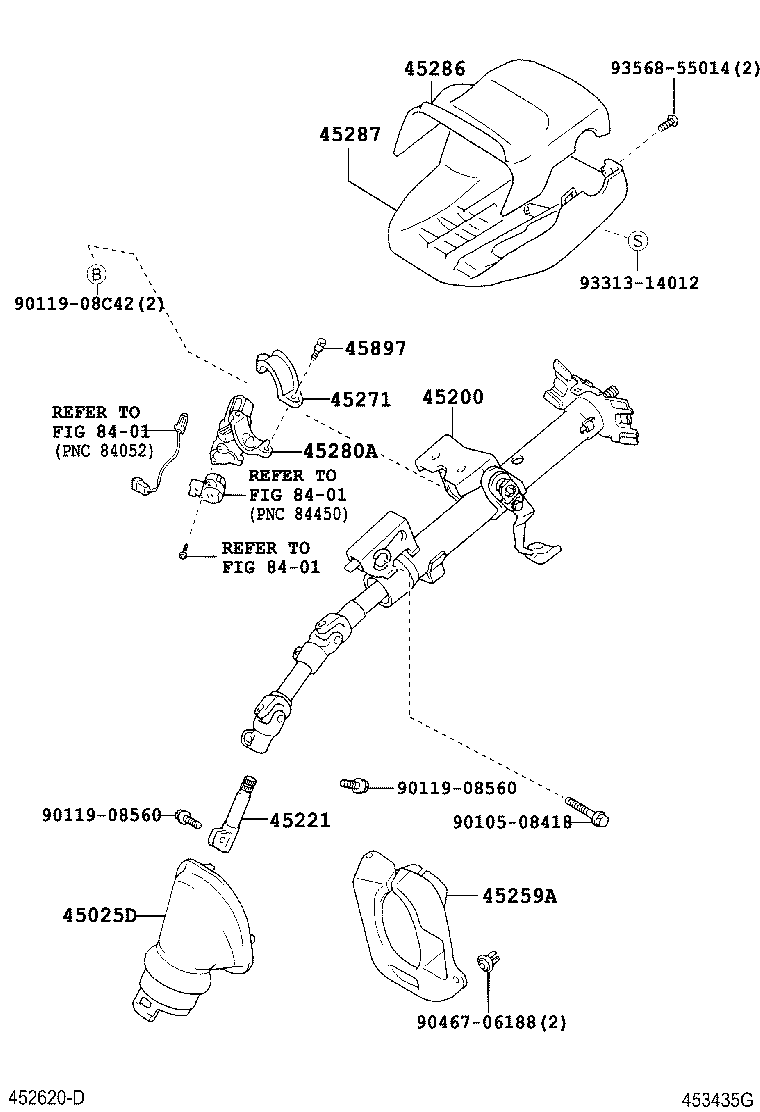

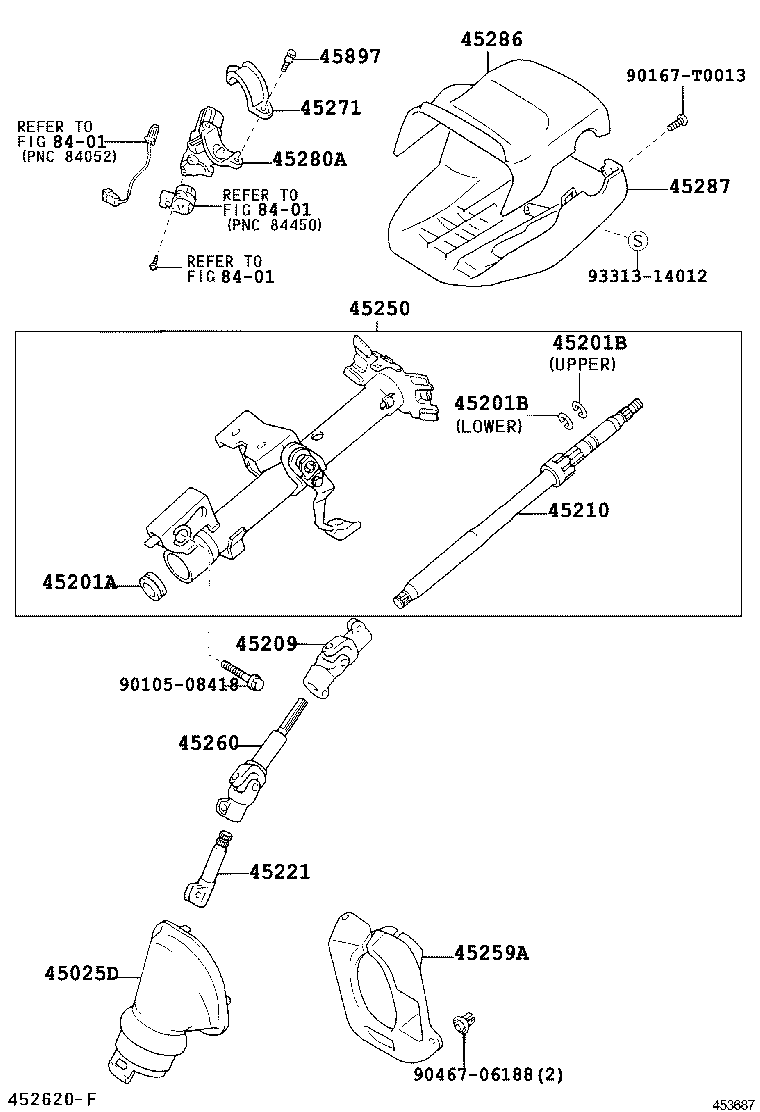

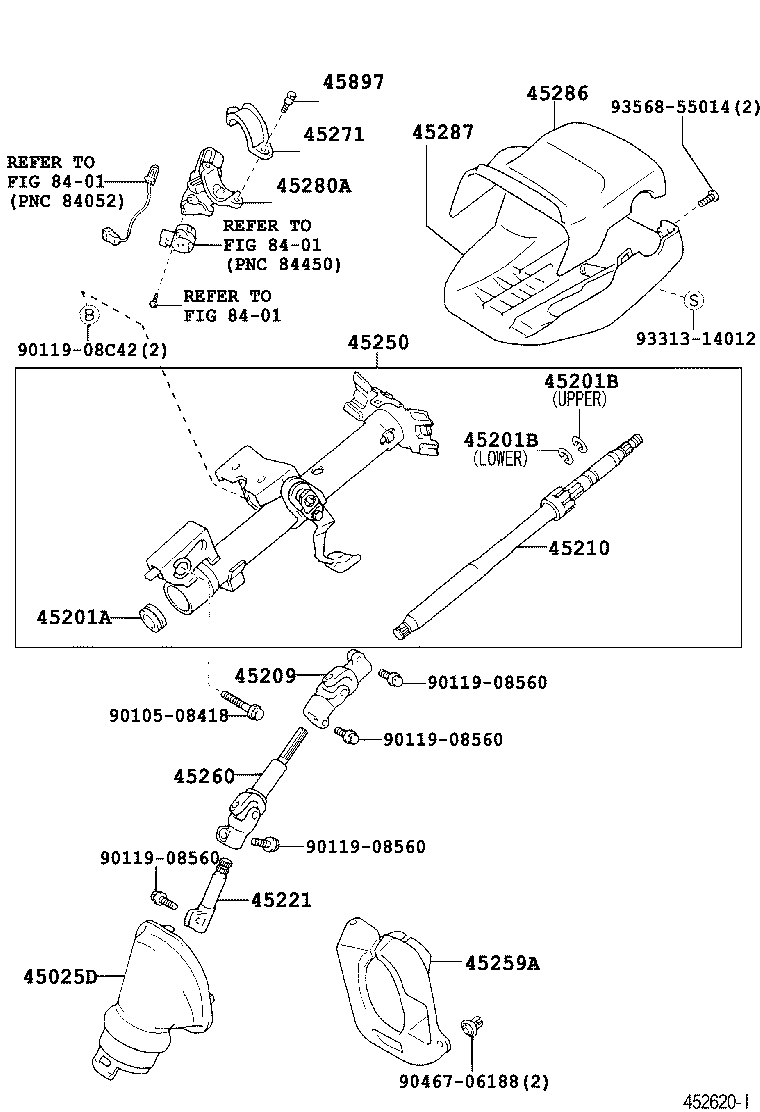

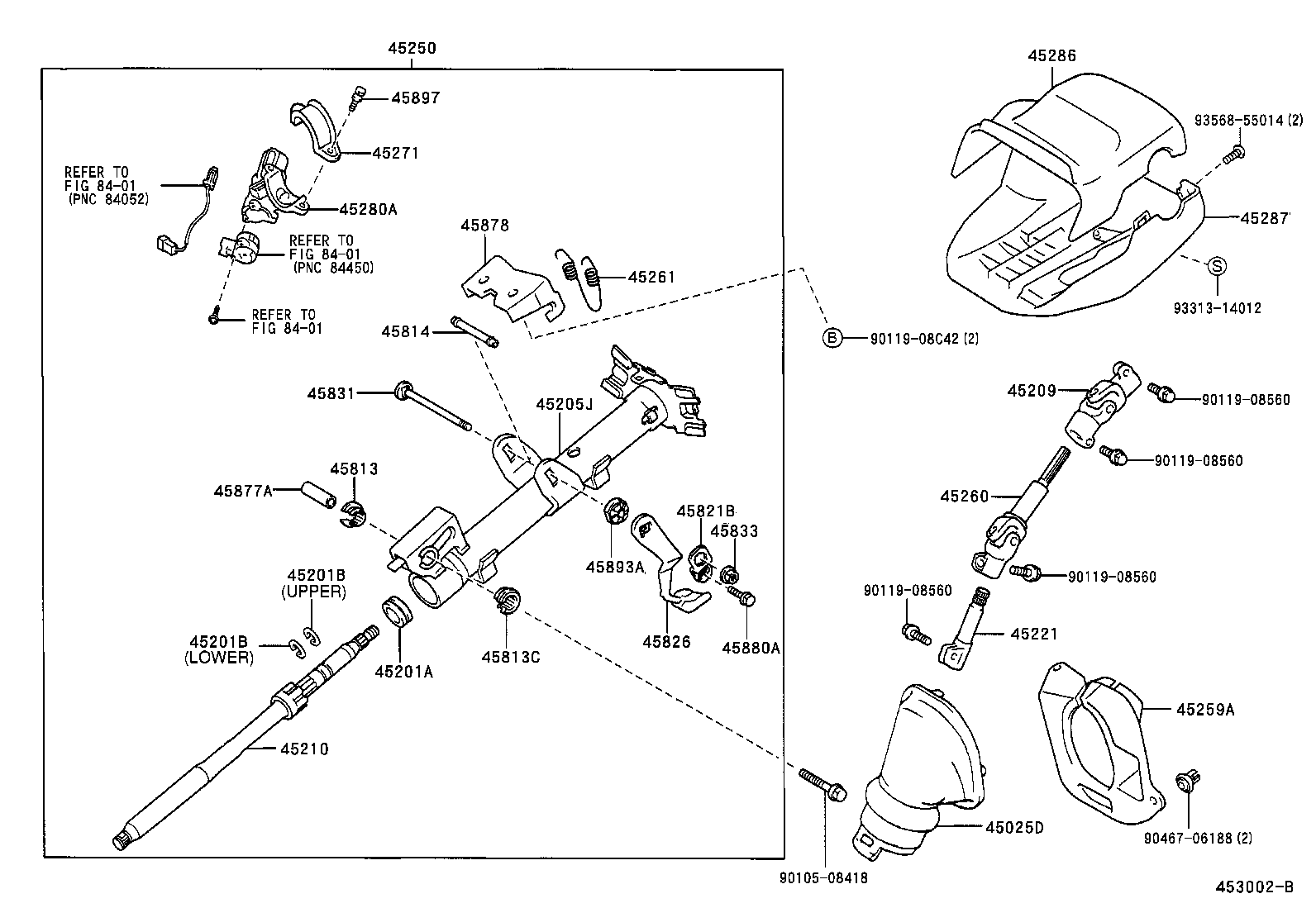

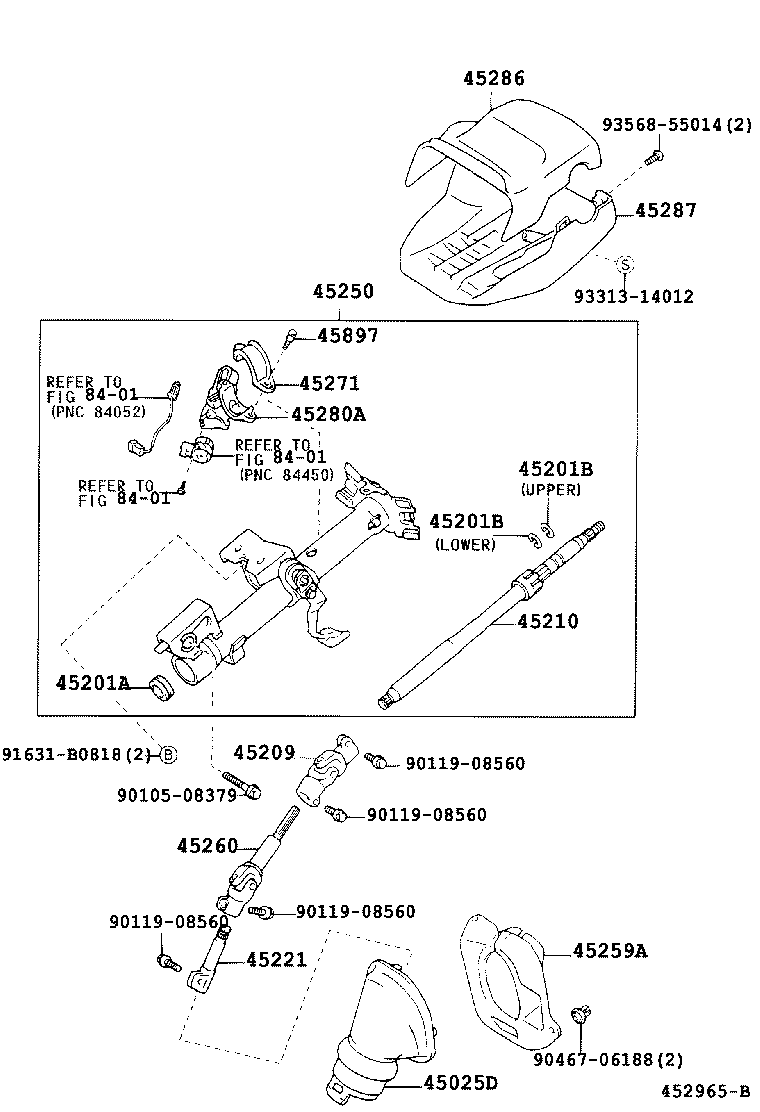

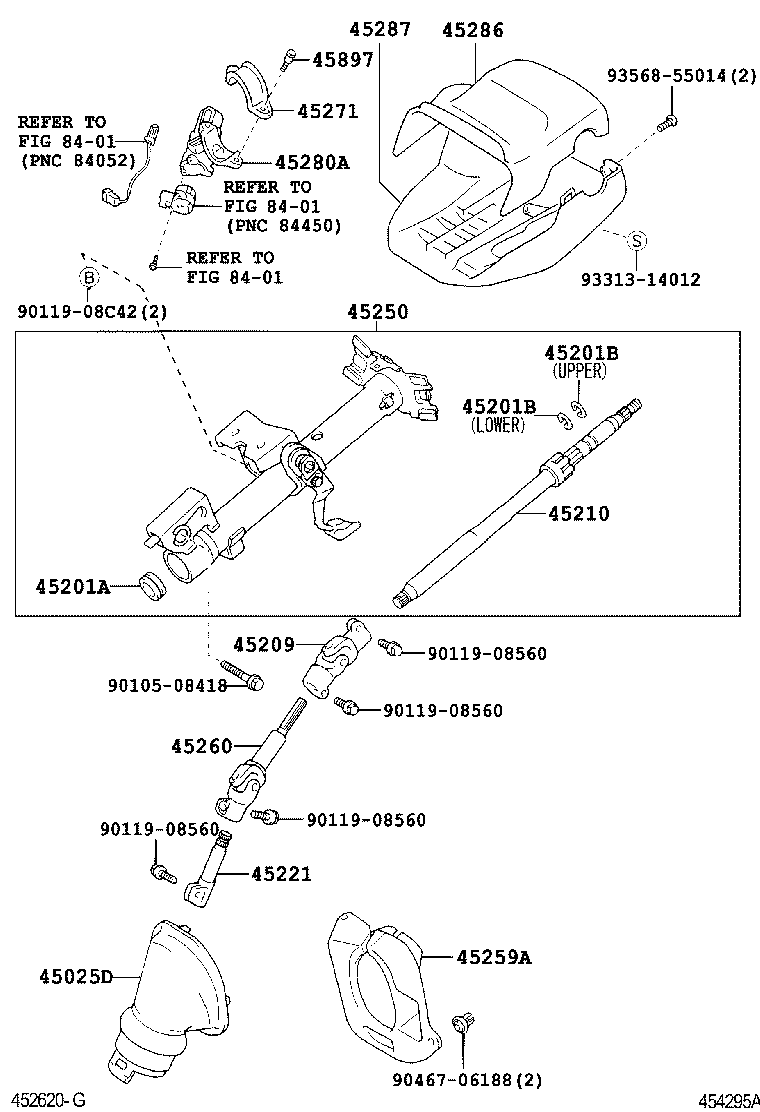

Figure 452965B 452965B 2001-03 → 2001-10 Figure 453002B 453002B 2001-10 → — Figure 452620I 452620I 2001-05 → 2002-08 Figure 452620I 452620I 2002-08 → 2003-11 Figure 452620I 452620I 2003-11 → 2005-06 Figure 452620I 452620I 2005-06 → — Figure 452620I 452620I 2007-01 → — Figure 453687A 453687A 2002-08 → 2003-11 Figure 453687A 453687A 2003-11 → — Figure 453435G 453435G 2003-01 → — Figure 454295A 454295A 2005-06 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45200 Post Assy, Steering
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45205J Tube Sub-assy, Steering Column, Upper
45209 Yoke Sub-assy, Steering Sliding
45210 Shaft Assy, Steering Main
45221 Shaft, Steering Intermediate
45250 Column Assy, Steering
45259A Sheet, Column Hole Cover Silencer
45260 Shaft Assy, Steering Intermediate, NO.2
45261 Spring, Tilt Steering Jump UP
45271 Clamp, Steering Column, Upper
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45287 Cover, Steering Column, Lwr
45813 Collar, Tilt Steering Support, NO.1
45813C Collar, Tilt Steering Support, NO.1
45814 Collar, Tilt Steering Support, NO.2
45821B Reinforce, Tilt Steering Support, NO.1
45826 Lever, Steering Tilt
45831 Bolt, Tilt Lever Lock, NO.1
45833 Nut, Tilt Steering Adjusting, NO.1
45877A Spacer, Steering Column Bracket
45878 Bracket, Steering Column Upper Support
45880A Bolt(FOR STEERING TILT LEVER)
45893A Stopper, Tilt Steering Pawl
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
