Toyota Corolla (ASIA/INDIA)

2001-03 → 2008-08 · chassis NZE120,ZZE12# · catalogue 156350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

8 part groups · 10 illustrations

Illustrations

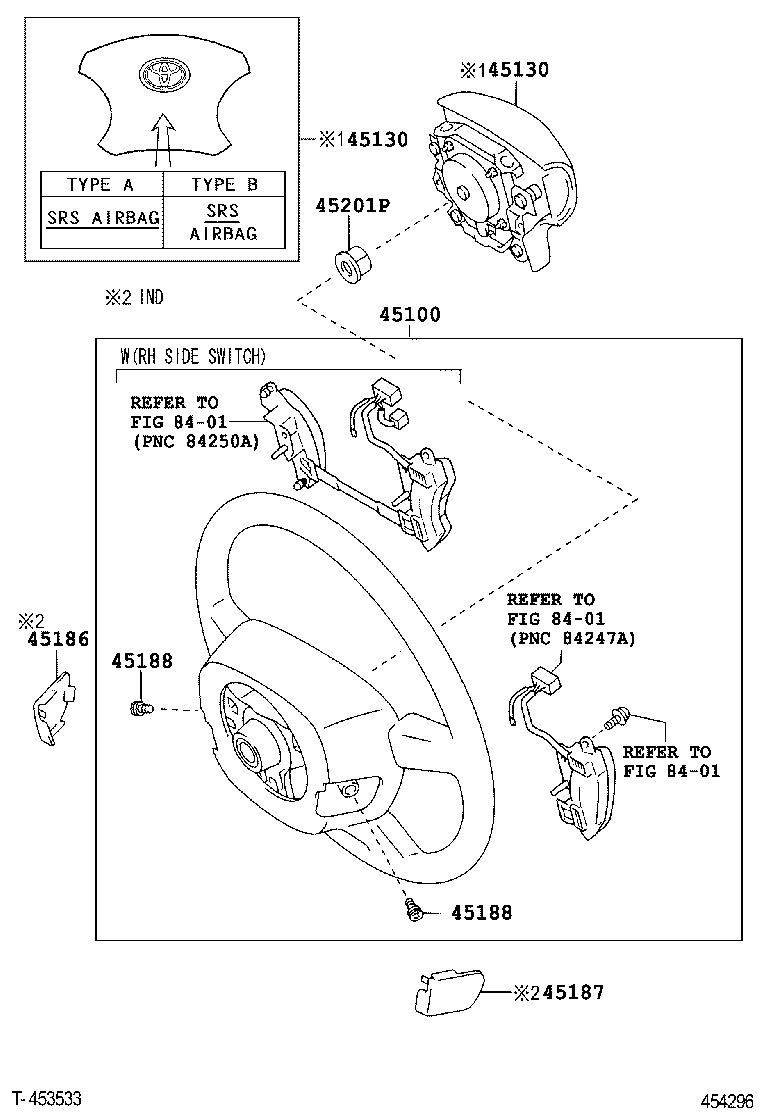

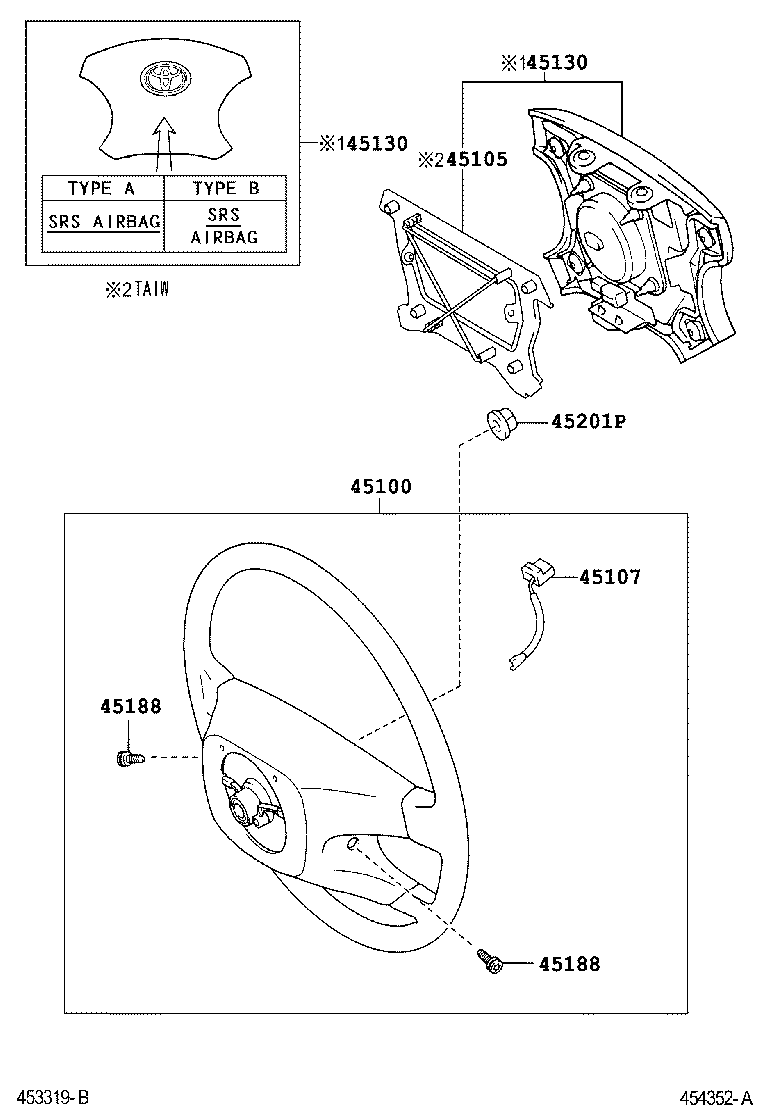

Figure 452622 452622 2001-03 → — Figure 452622 452622 2006-07 → — Figure 453690A 453690A 2001-03 → 2006-03 Figure 453690A 453690A 2006-03 → 2006-05 Figure 453690A 453690A 2006-05 → — Figure 454296A 454296A 2005-08 → — Figure 454296A 454296A 2006-03 → — Figure 454296A 454296A 2006-05 → — Figure 454352A 454352A 2006-03 → — Figure 454352A 454352A 2006-05 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45107 Wire Sub-assy, Horn Button
45130 Button Assy, Horn
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
