Toyota Corolla (ASIA/INDIA)

2001-03 → 2008-08 · chassis NZE120,ZZE12# · catalogue 156350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

18 part groups · 10 illustrations

Illustrations

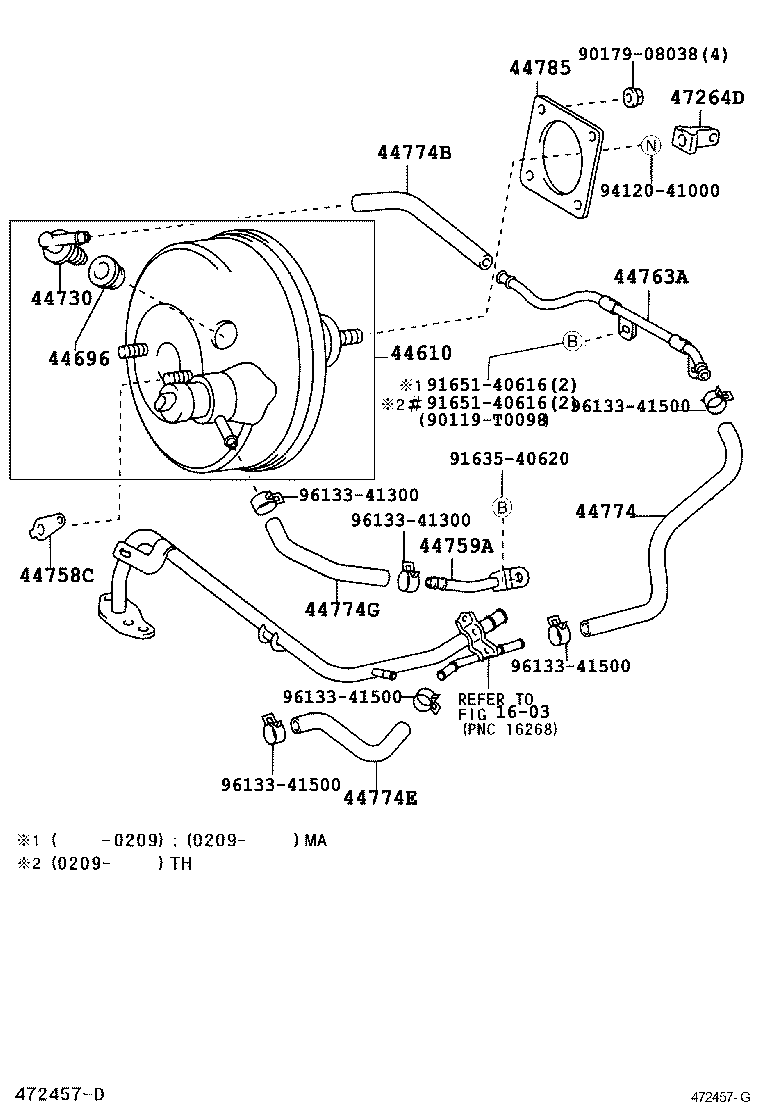

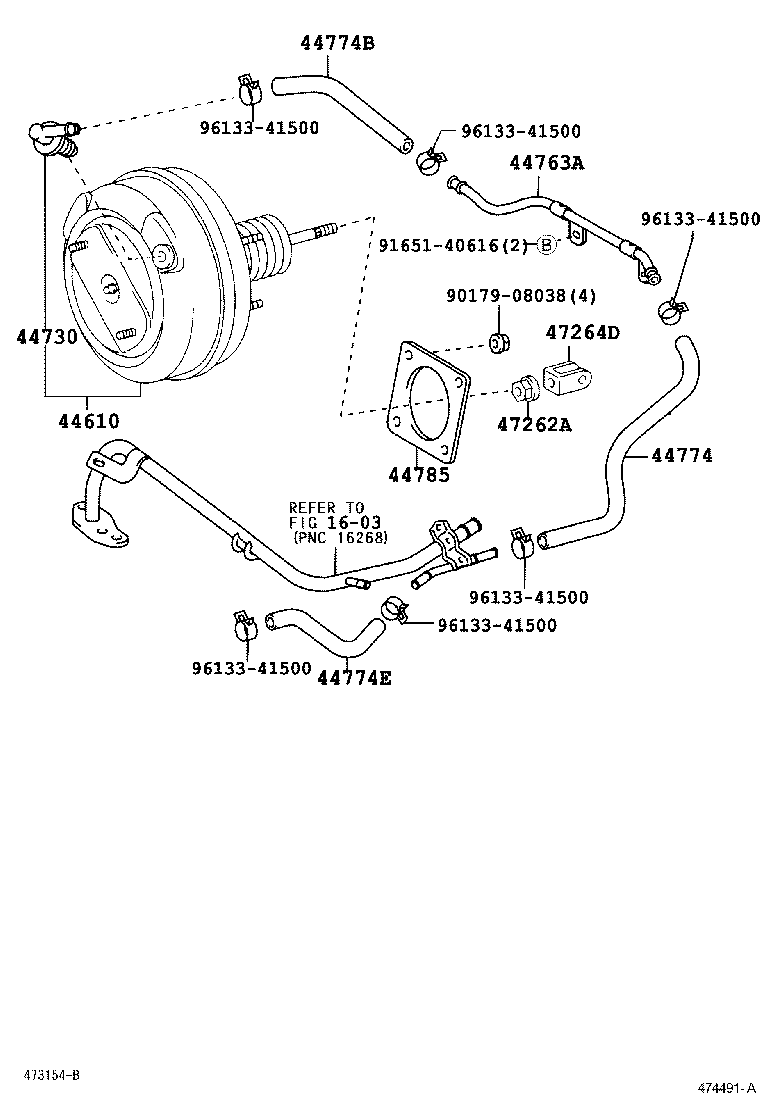

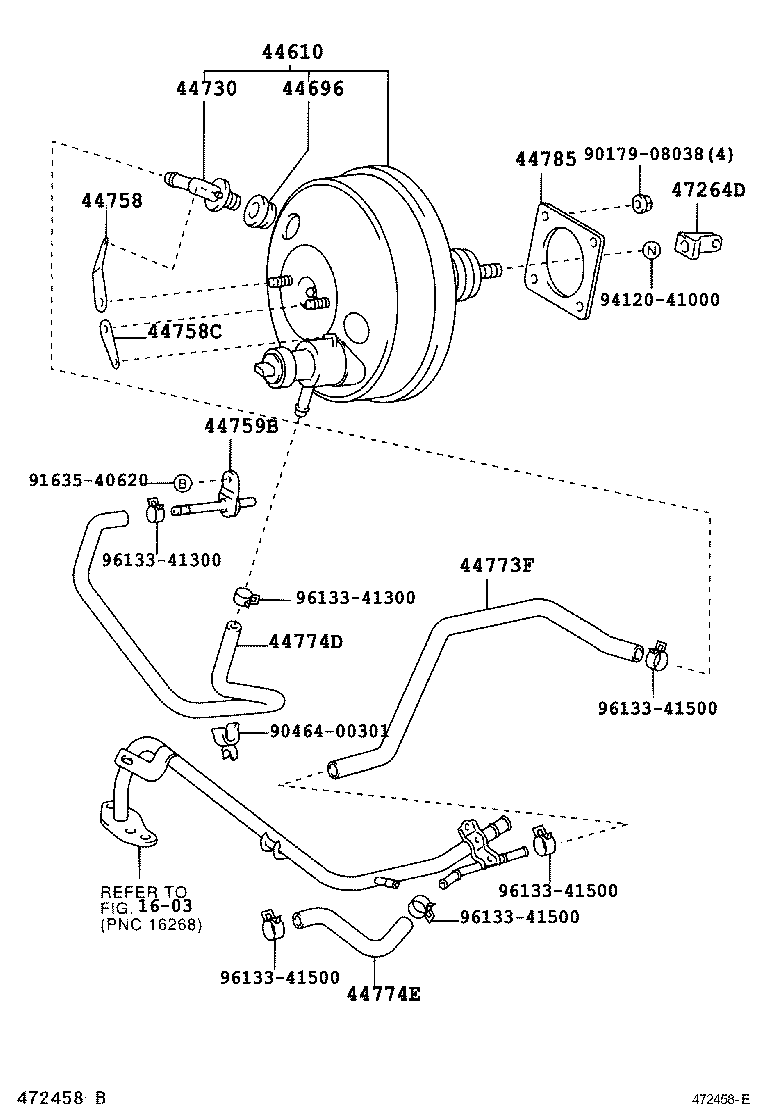

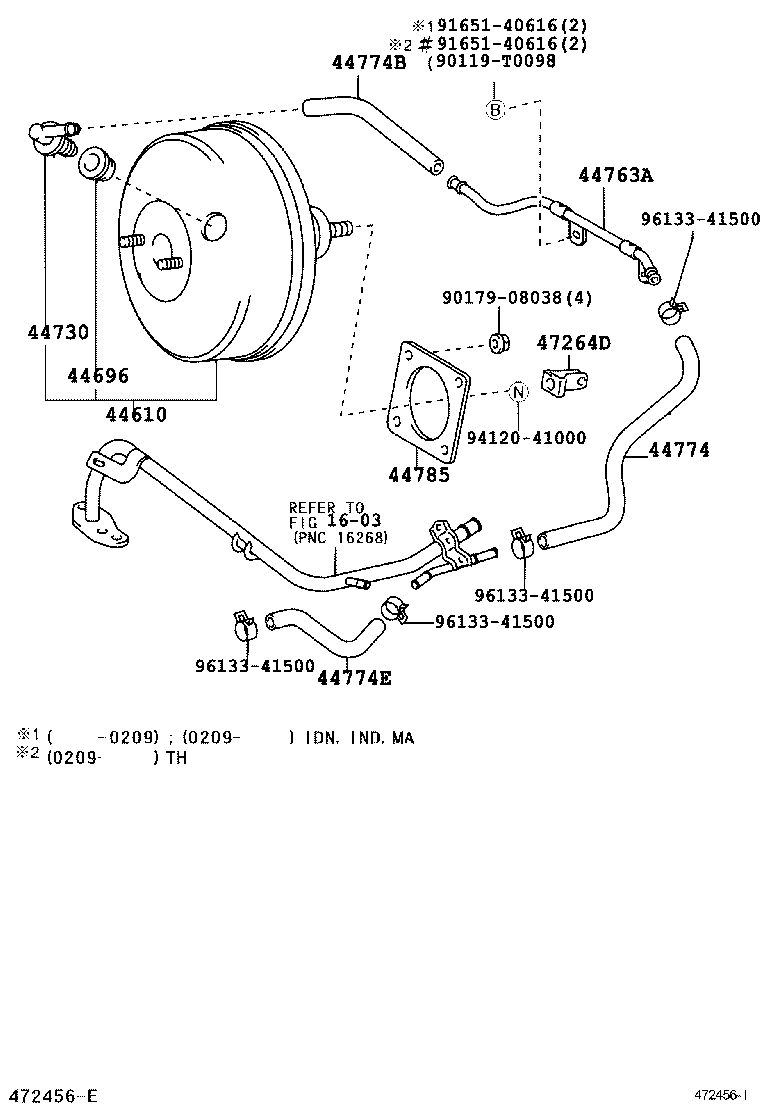

Figure 472468F 472468F 2001-03 → — Figure 472468F 472468F 2001-07 → — Figure 472458E 472458E 2001-03 → — Figure 472456I 472456I 2001-05 → — Figure 472456I 472456I 2001-07 → — Figure 472456I 472456I 2003-01 → 2004-12 Figure 472457G 472457G 2001-05 → — Figure 472457G 472457G 2001-07 → — Figure 472626B 472626B 2001-07 → — Figure 474491A 474491A 2004-12 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44758 Bracket, Vacuum Check Valve
44758C Bracket, Solenoid Valve Cover
44759A Union, Brake Booster Air Hose
44759B Tube, Vacuum Reservoir, Inner
44763 Tube, Booster Vacuum
44763A Tube, Hose TO Hose, NO.1
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44774B Hose, Union TO Connector Tube
44774D Hose, Union TO Way
44774E Hose, Union TO Connector Tube
44774G Hose, Union TO Solenoid
44785 Gasket, Brake Booster
47262A Nut, Master Cylinder Push Rod Clevis Lock
47264D Clevis, Brake Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
