Toyota Corolla (ASIA/INDIA)
2001-03 → 2008-08 · chassis NZE120,ZZE12# · catalogue 156350 · General
Discontinued model
Data version 2009-01

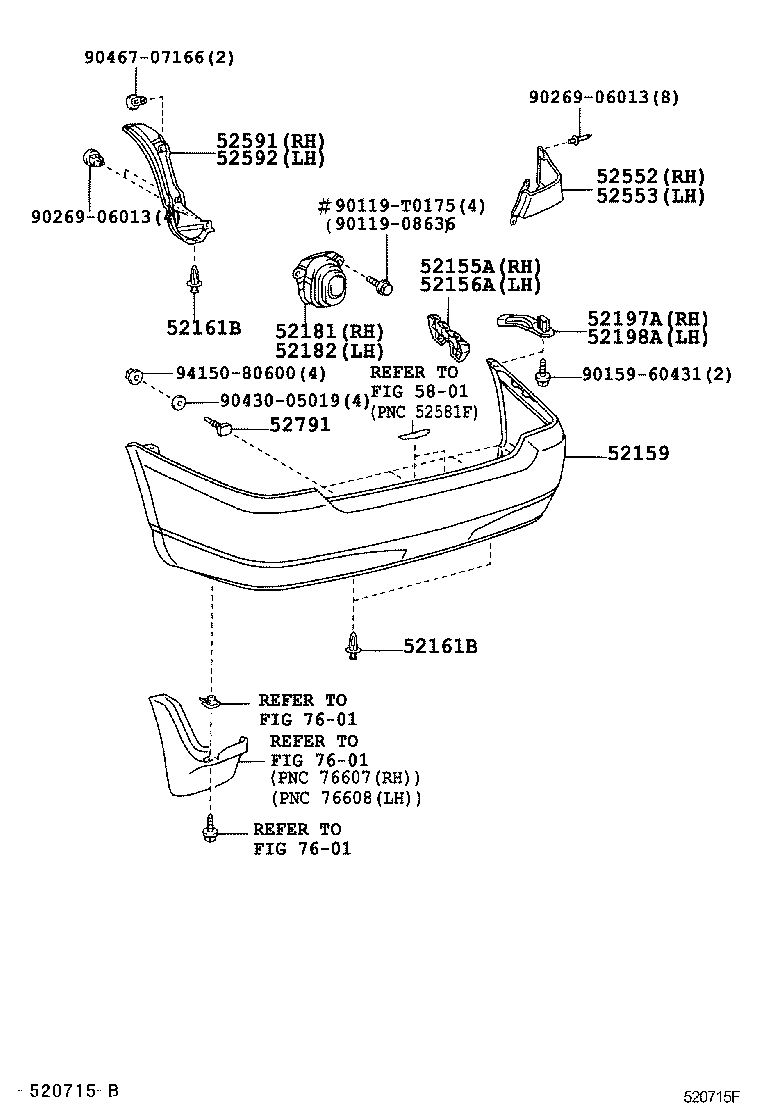

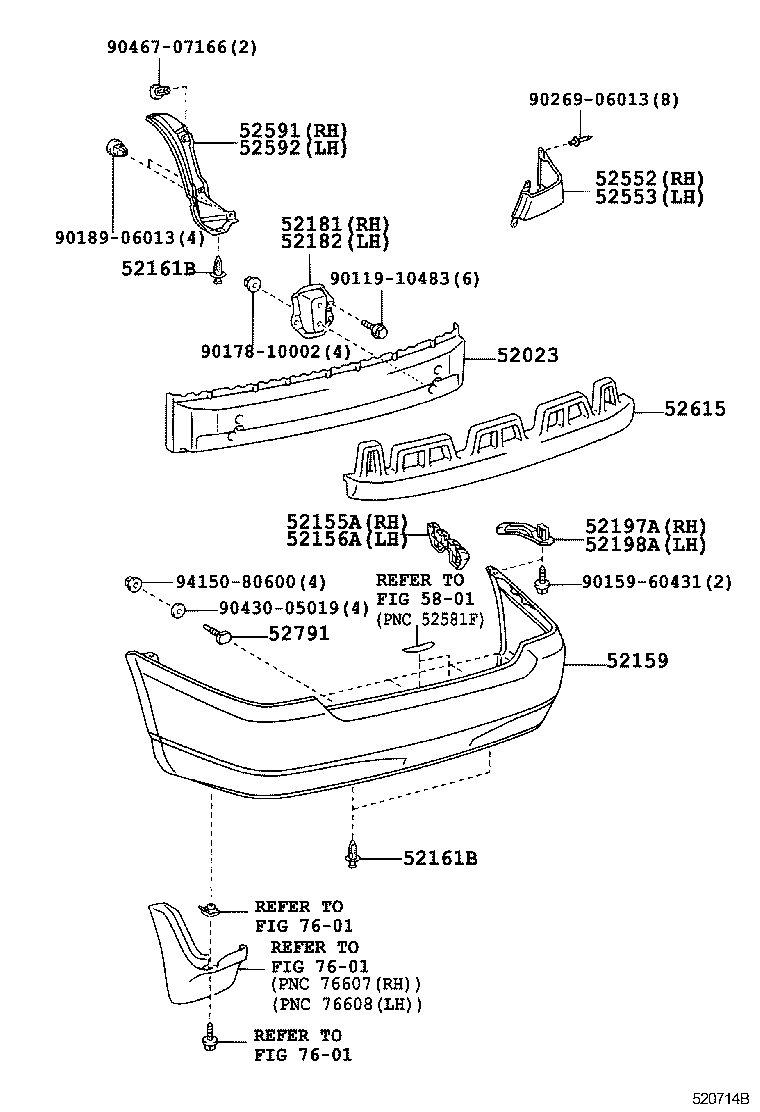

Rear Bumper & Bumper Stay
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52023 | Reinforcement Sub-assy, Rear Bumper |
| 52155A | Support, Rear Bumper Side, RH |
| 52156A | Support, Rear Bumper Side, LH |
| 52159 | Cover, Rear Bumper |
| 52161B | Piece, Rear Bumper |
| 52181 | Arm, Rear Bumper, RH |
| 52182 | Arm, Rear Bumper, LH |
| 52197A | Bracket, Rear Bumper Seal, RH |
| 52198A | Bracket, Rear Bumper Seal, LH |
| 52552 | Filler, Rear Bumper, RH |
| 52553 | Filler, Rear Bumper, LH |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
| 52615 | Absorber, Rear Bumper Energy |
| 52791 | Bolt, Bumper Moulding Set, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
