Toyota Corolla (ASIA/INDIA)
2001-03 → 2008-08 · chassis NZE120,ZZE12# · catalogue 156350 · General
Discontinued model
Data version 2009-01

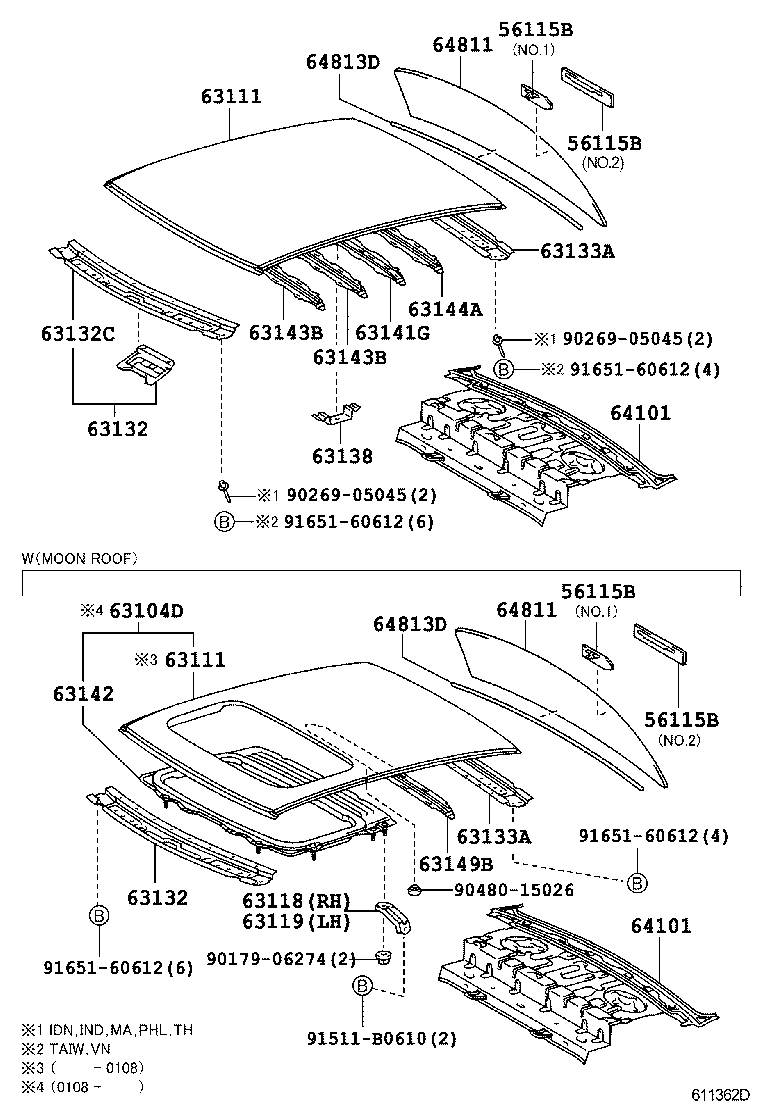

Roof Panel & Back Window Glass
34 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 56115B | Stopper, Back Window Glass, NO.1 |
| 63104D | Reinforcement Sub-assy, Roof Panel, NO.2 |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63132 | Panel, Windshield Header, Inner |
| 63132C | Panel, Windshield Header, Inner |
| 63133A | Frame, Back Window, Upper |
| 63138 | Bracket, Dome Lamp, NO.2 |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63149B | Reinforcement, Roof Panel, NO.1 Rear |
| 63201G | Glass Sub-assy, Sliding Roof |
| 63202H | Rail Sub-assy, Slide Roof |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63214F | Channel, Roof Drip, Rear |
| 63218H | Hose, Sliding Roof Drain |
| 63221 | Casing, Sliding Roof Cable Guide |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63233C | Panel, Sliding Roof Housing |
| 63239 | Stopper, Sliding Roof Panel |
| 63241B | Bracket, Sliding Roof Housing, NO.1 |
| 63251H | Weatherstrip, Sliding Roof |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63265B | Gear, Sliding Roof Drive |
| 63279D | Stopper, Sliding Roof Guide Rail |
| 63625 | Block, Sliding Roof Guide, RH |
| 63626 | Block, Sliding Roof Guide, LH |
| 64101 | Panel Sub-assy, Upper Back |
| 64811 | Glass, Back Window |
| 64813D | Dam, Back Window Glass Adhesive |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
