Toyota Corolla (ASIA/INDIA)

2001-03 → 2008-08 · chassis NZE120,ZZE12# · catalogue 156350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

16 part groups · 3 illustrations

Illustrations

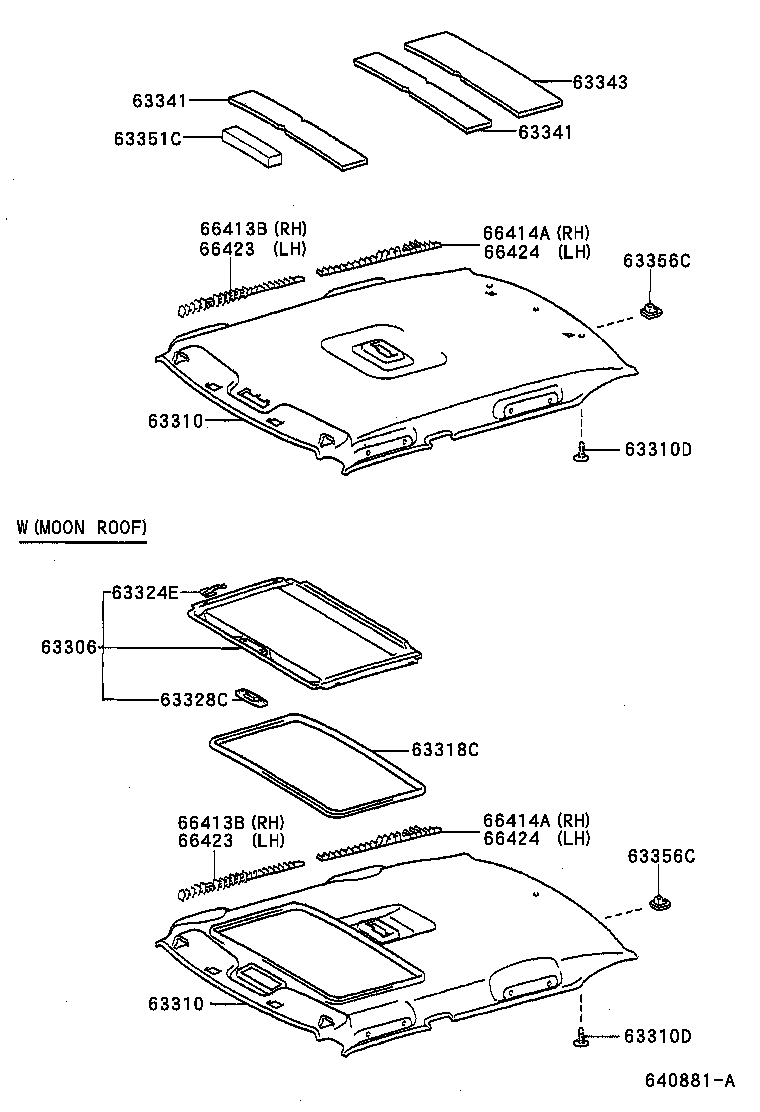

Figure 640881A 640881A 2001-03 → 2004-01 Figure 641337A 641337A 2001-03 → — Figure 641336 641336 2004-01 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63318C Moulding, Sun Roof Opening Trim
63324E Spring, Sunshade Lock
63328C Knob, Sunshade Trim
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63344 Pad, Roof Silencer, NO.4
63351C Pad, Roof Headlining
63356C Holder, Sunshade Trim
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
