Toyota Corolla (ASIA/INDIA)
2001-03 → 2008-08 · chassis NZE120,ZZE12# · catalogue 156350 · General
Discontinued model
Data version 2009-01

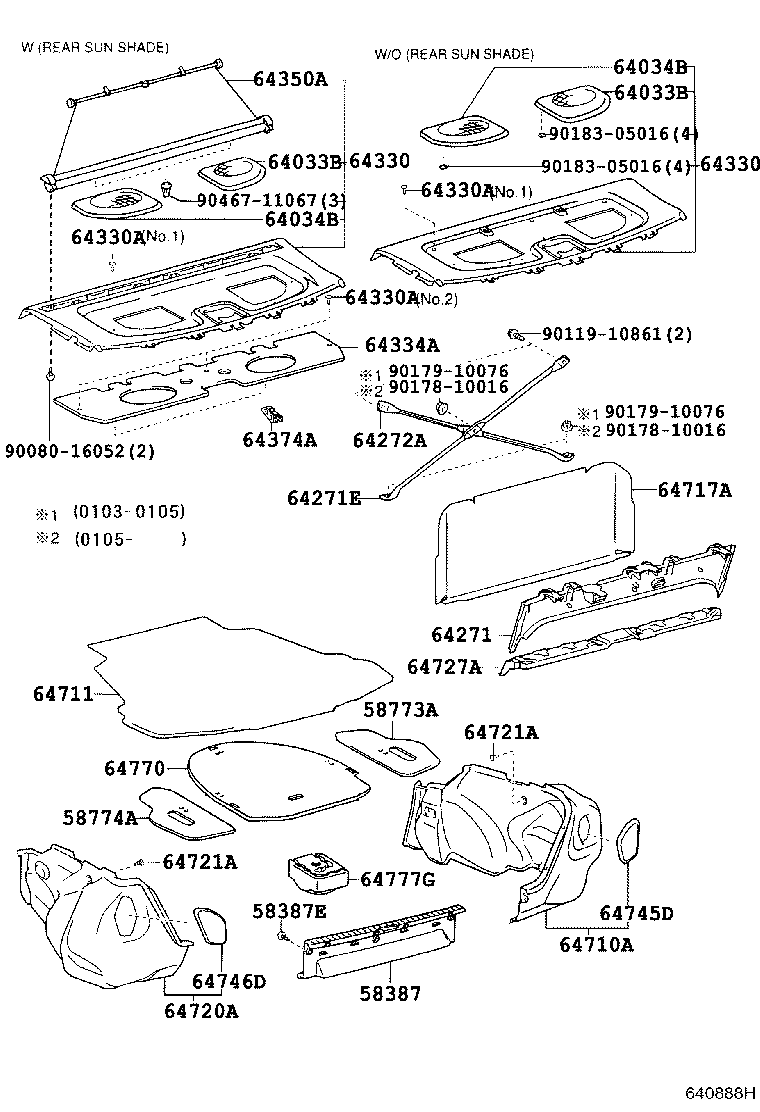

Package Tray Panel & Luggage Compartment Mat
24 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 58387E | Clip(FOR REAR FLOOR FINISH PLATE) |
| 58773A | Cover, Luggage Compartment Side, RH |
| 58774A | Cover, Luggage Compartment Side, LH |
| 64033B | Grille Sub-assy, Rear Speaker, RH |
| 64034B | Grille Sub-assy, Rear Speaker, LH |
| 64271 | Board, Room Partition, NO.1 |
| 64271E | Panel, Room Partition |
| 64272A | Panel, Room Partition, LH |
| 64330 | Panel Assy, Package Tray Trim |
| 64330A | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64334A | Pad, Package Tray Trim |
| 64350A | Shade Assy, Rear Window |
| 64374A | Support, Package Tray Trim |
| 64710A | Cover Assy, Luggage Compartment Trim, RH |
| 64711 | Mat, Luggage Compartment Floor |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64720A | Cover Assy, Luggage Compartment Trim, LH |
| 64721A | Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) |
| 64727A | Pad, Luggage Compartment Trim, Inner |
| 64745D | Cover, Rear Combination Lamp Service, RH |
| 64746D | Cover, Rear Combination Lamp Service, LH |
| 64770 | Cover Assy, Spare Wheel |
| 64777G | Cushion, Spare Wheel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
