Toyota Corolla (ASIA/INDIA)

2001-03 → 2008-08 · chassis NZE120,ZZE12# · catalogue 156350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

20 part groups · 2 illustrations

Illustrations

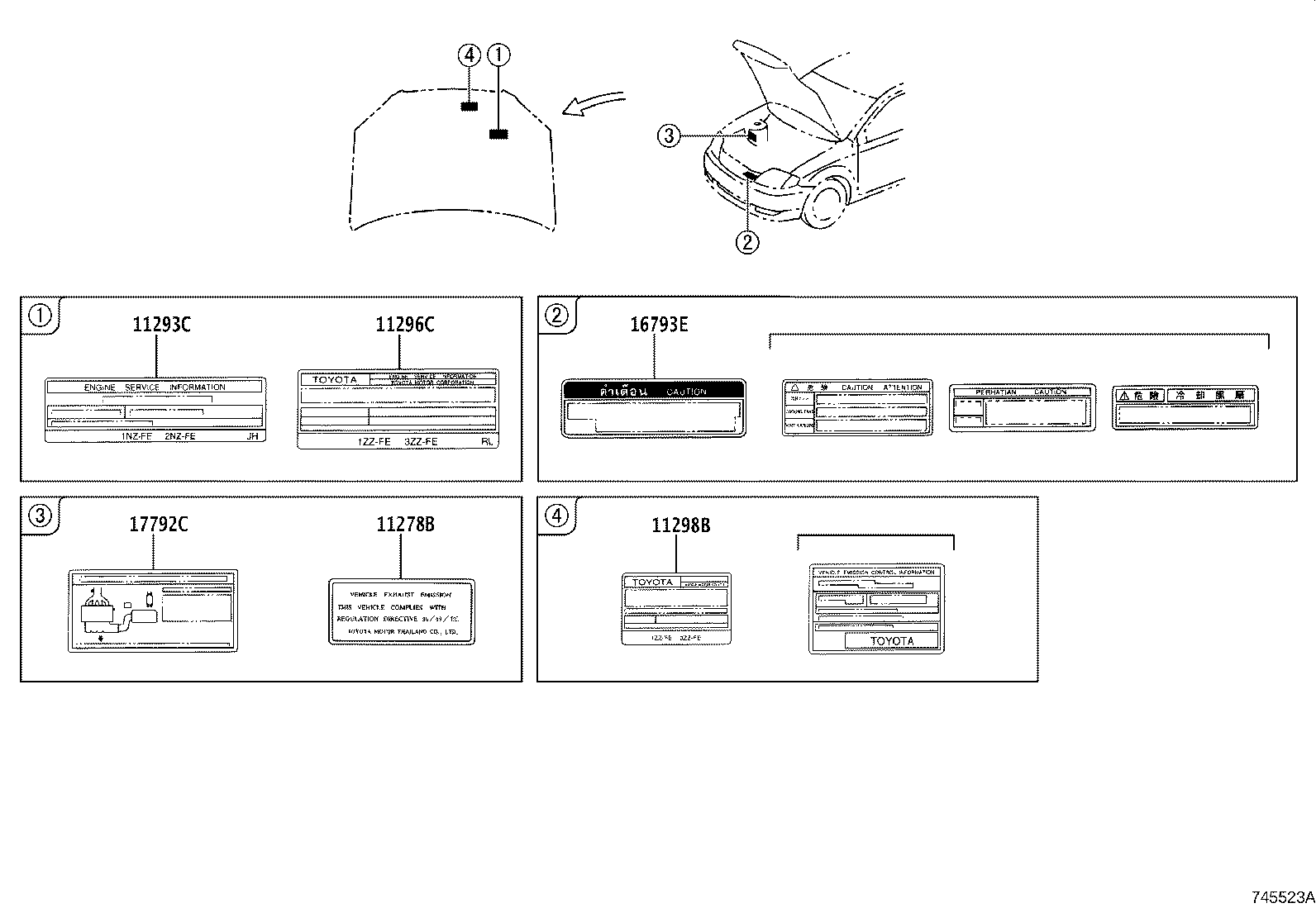

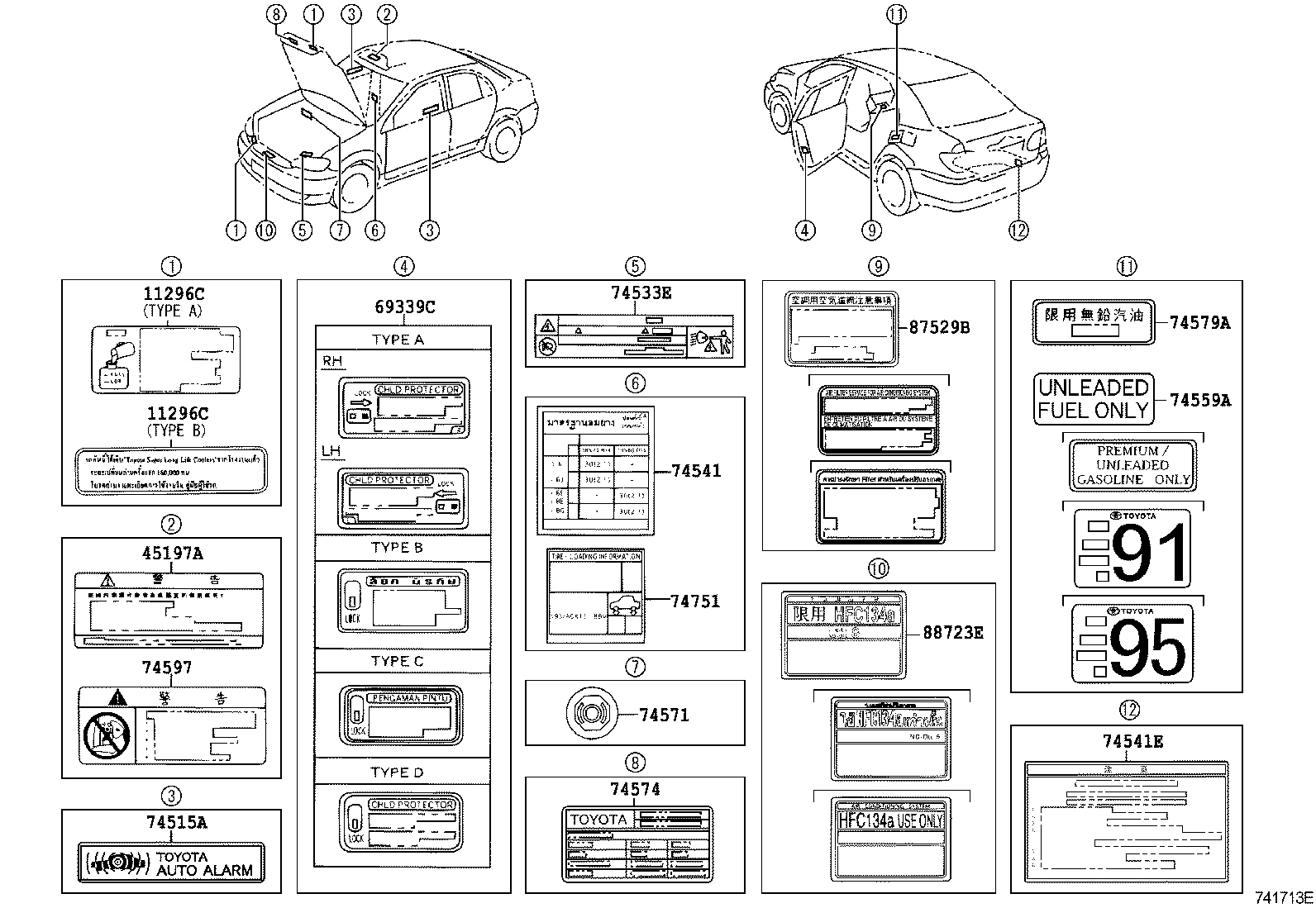

Figure 745523A 745523A 2001-03 → — Figure 741713E 741713E 2001-03 → —

Part groups

PNCDescription
11278B Label, Engine Emission Compliance Information
11293C Label, Tune-up Specification Information
11296C Label, Engine Service Information
11298B Label, Emission Control Information
16793E Label, Cooling Fan Caution
17792C Label, Engine Vacuum Hose Information
45197A Label, Airbag Caution
69339C Label, Child Protector Information
74515A Plate, Theft Warning
74533E Label, Headlamp Voltage Caution
74541 Plate, Tire Pressure Caution
74541E Plate, Compact Spare Tire Caution
74559A Plate, Fuel Caution
74571 Plate, Brake Fluid Caution
74574 Plate, Noise Identification
74579A Label, Unleaded Fuel Information
74597 Label, Driver & Passenger Airbag Caution
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
