Toyota Corolla (ASIA/INDIA)

2001-03 → 2008-08 · chassis NZE120,ZZE12# · catalogue 156350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

22 part groups · 5 illustrations

Illustrations

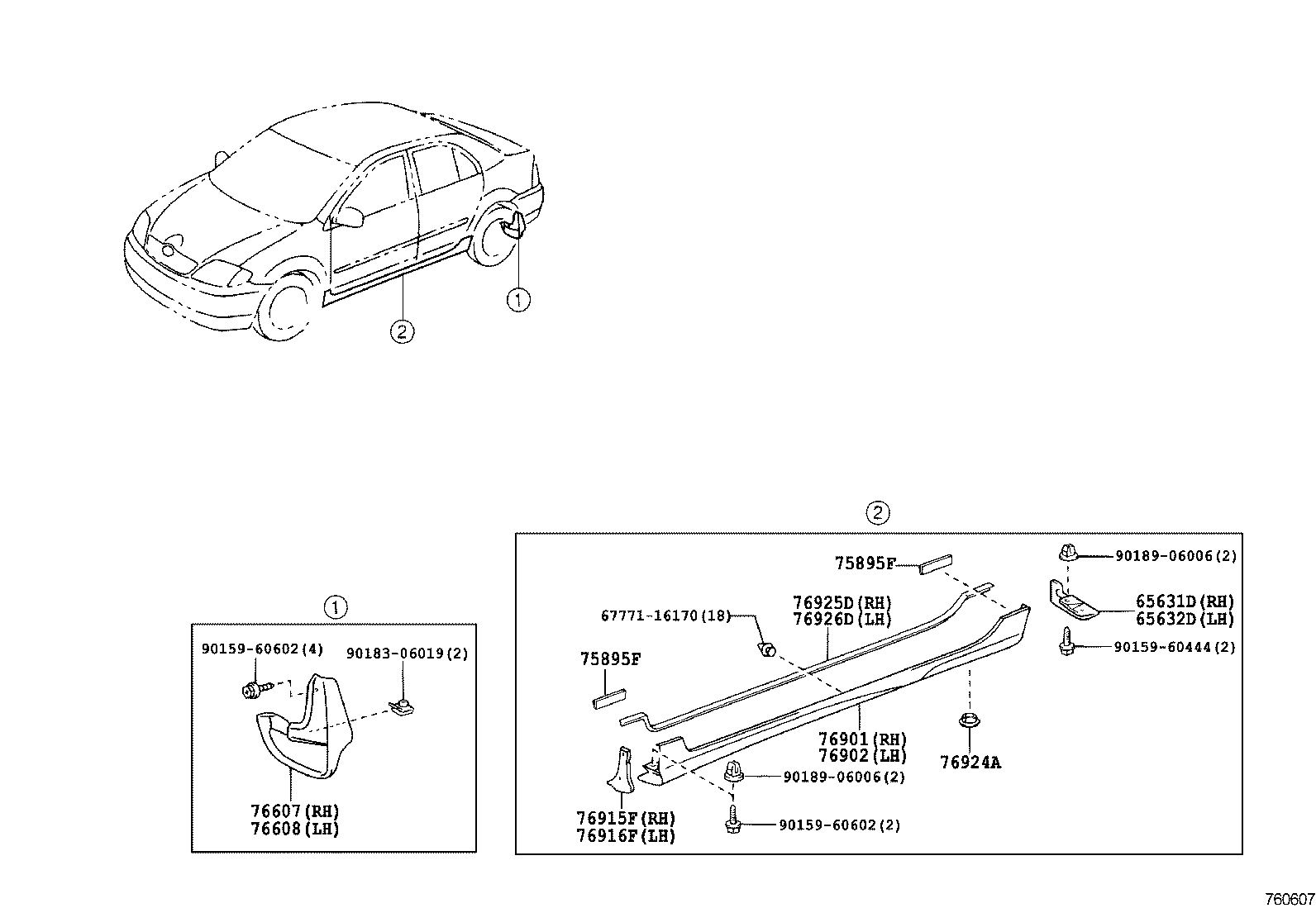

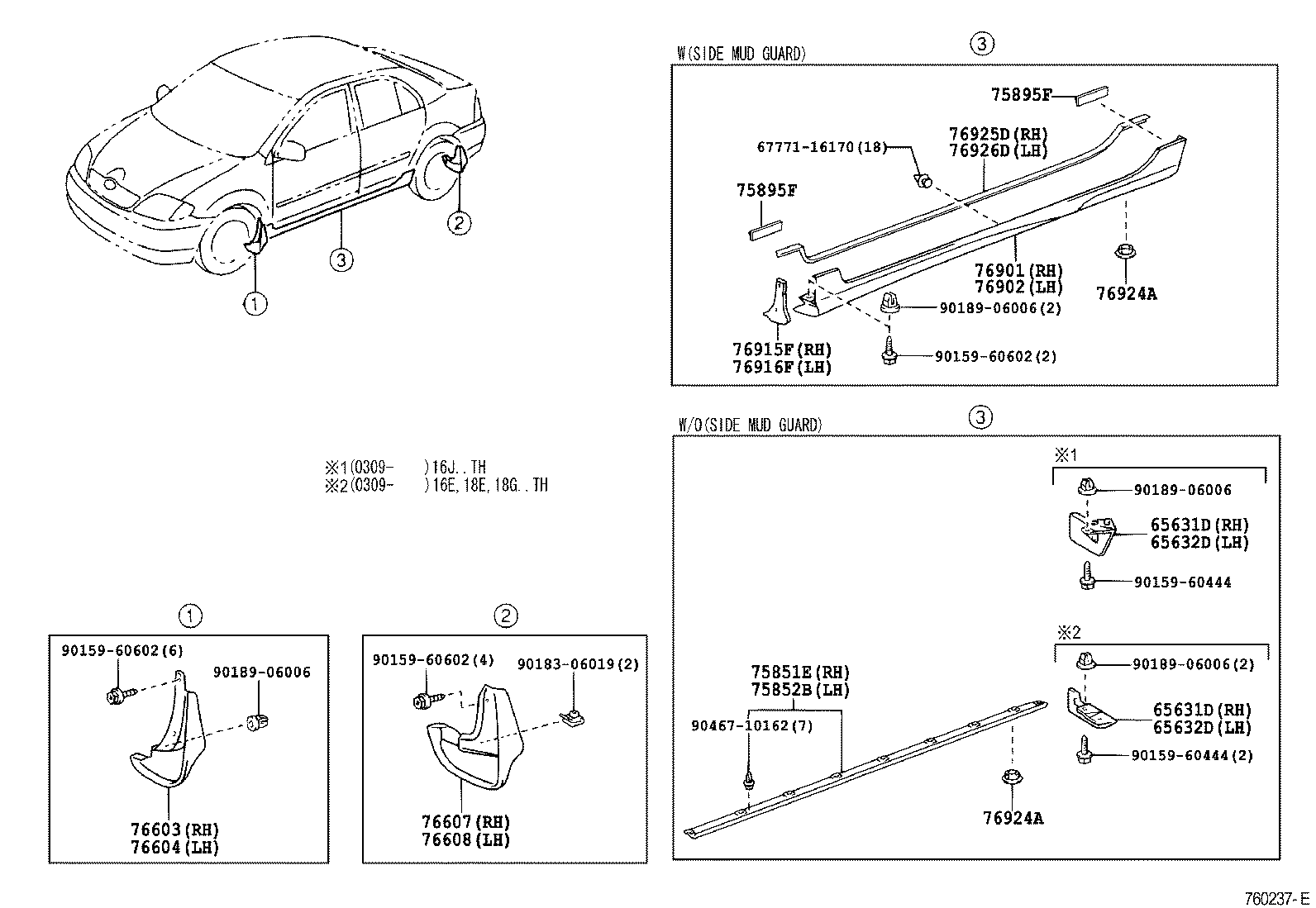

Figure 760237E 760237E 2001-03 → — Figure 760237E 760237E 2001-07 → 2007-06 Figure 760607 760607 2007-06 → — Figure 760312B 760312B 2002-11 → 2003-10 Figure 760312B 760312B 2004-11 → —

Part groups

PNCDescription
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
75851E Moulding, Body Rocker Panel, RH
75852B Moulding, Body Rocker Panel, LH
75895F Tape, Moulding, NO.1
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76871 Spoiler, Rear
76873 Protector, Rear Spoiler, NO.2
76874 Protector, Rear Spoiler, NO.3
76879 Clip, Rear Spoiler, NO.1
76897 Protector, Rear Spoiler, Side RH
76898 Protector, Rear Spoiler, Side LH
76901 Mudguard Sub-assy, Side, RH
76902 Mudguard Sub-assy, Side, LH
76915F Mudguard, Side, FR RH
76916F Mudguard, Side, FR LH
76924A Retainer, Side Mudguard, NO.2
76925D Protector, Side Mudguard, RH
76926D Protector, Side Mudguard, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
