Toyota Corolla (ASIA/INDIA)
2001-03 → 2008-08 · chassis NZE120,ZZE12# · catalogue 156350 · General
Discontinued model
Data version 2009-01

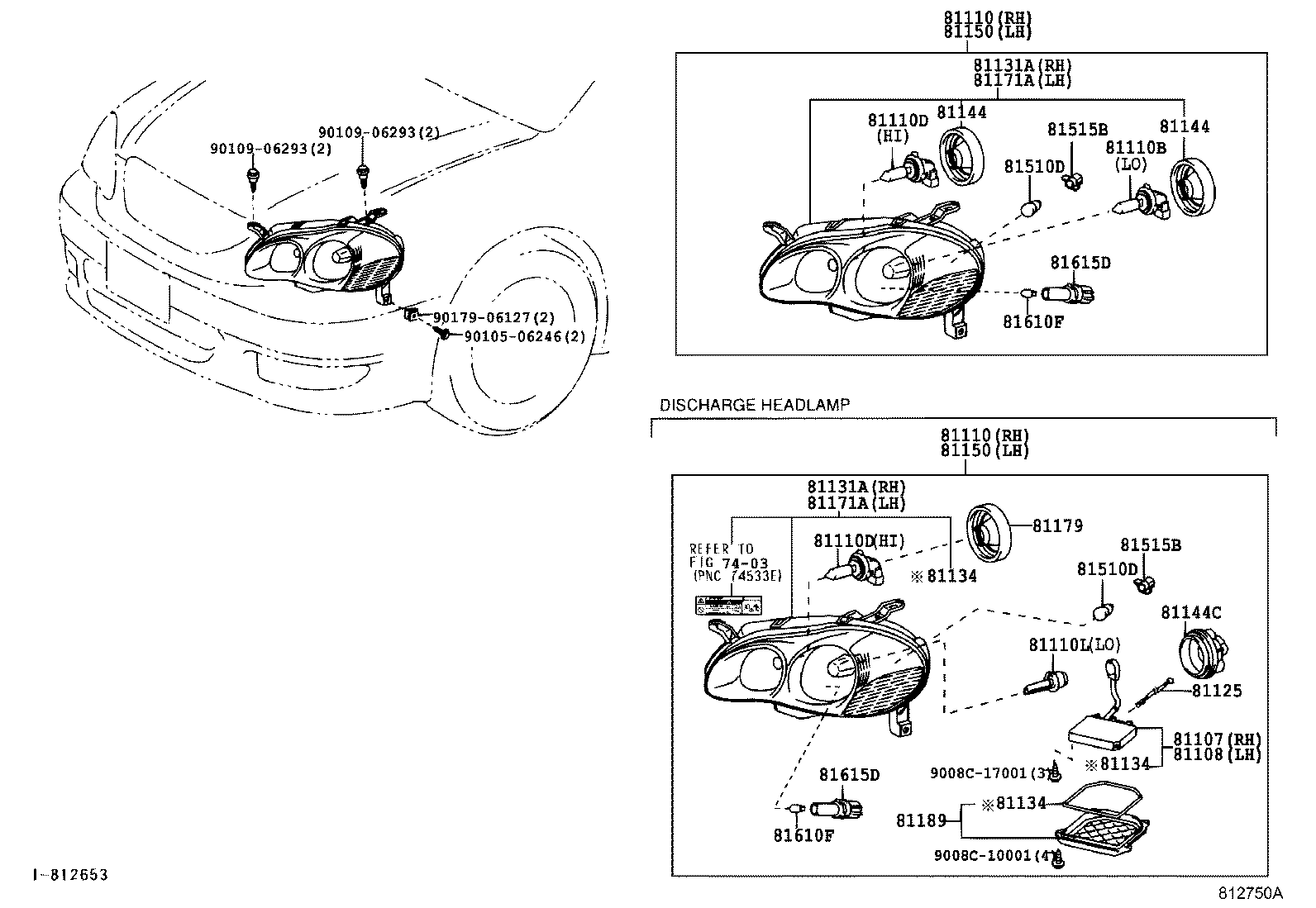

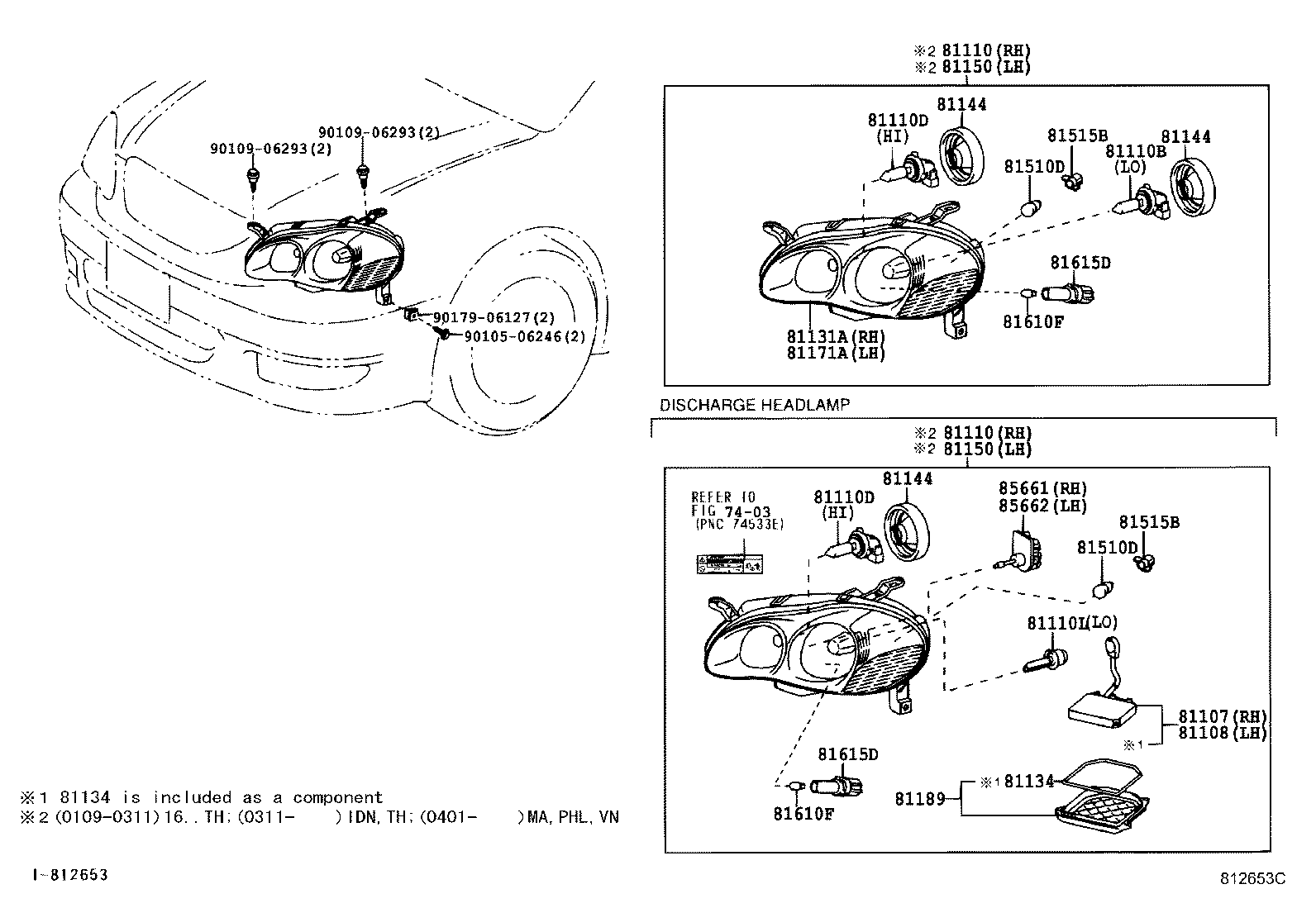

Headlamp
21 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 81107 | Computer Sub-assy, Headlamp Light Control, RH |
| 81108 | Computer Sub-assy, Headlamp Light Control, LH |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81110L | Bulb, Discharge Headlamp |
| 81125 | Cord, Headlamp |
| 81131A | Unit, Headlamp, RH |
| 81134 | Gasket, Headlamp |
| 81144 | Cover, Headlamp, NO.1 |
| 81144C | Cover, Headlamp Socket |
| 81150 | Headlamp Assy, LH |
| 81171A | Unit, Headlamp, LH |
| 81179 | Cover, Headlamp Socket |
| 81189 | Cover, Headlamp |
| 81510D | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
| 85661 | Motor, Headlamp Leveling, RH |
| 85662 | Motor, Headlamp Leveling, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
