Toyota Corolla (ASIA/INDIA)

2001-03 → 2008-08 · chassis NZE120,ZZE12# · catalogue 156350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

17 part groups · 11 illustrations

Illustrations

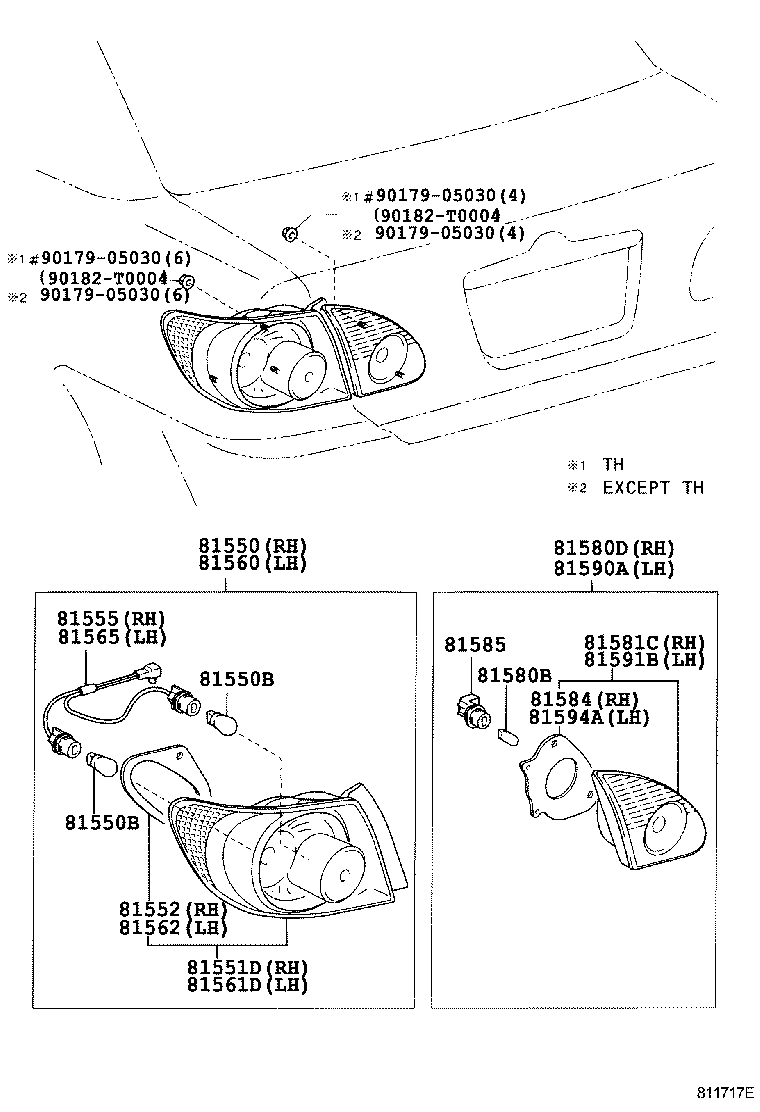

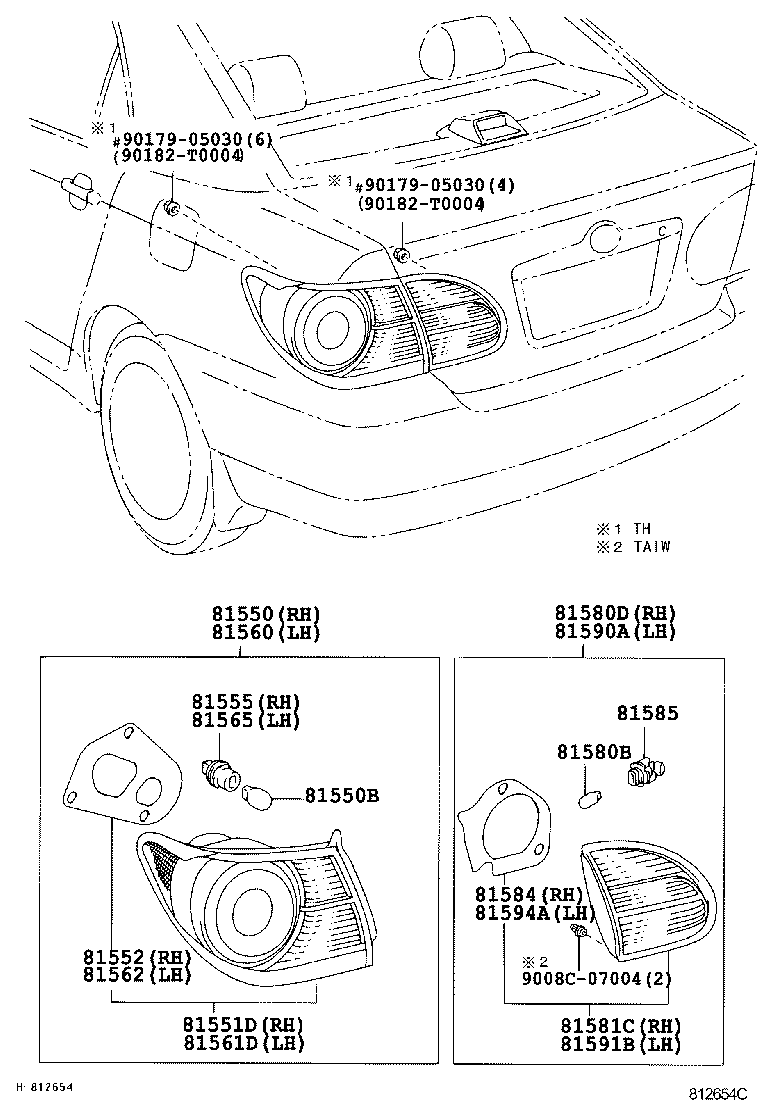

Figure 811717E 811717E 2001-03 → 2003-10 Figure 811717E 811717E 2001-05 → 2003-11 Figure 811717E 811717E 2001-07 → 2004-01 Figure 811717E 811717E 2001-07 → 2004-03 Figure 811717E 811717E 2003-01 → 2005-08 Figure 811717E 811717E 2003-11 → — Figure 812654C 812654C 2003-10 → 2007-12 Figure 812654C 812654C 2003-11 → — Figure 812654C 812654C 2004-01 → — Figure 812654C 812654C 2004-03 → — Figure 812654C 812654C 2005-08 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551D Lens & Body, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561D Lens & Body, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580B Bulb (FOR REAR LAMP)
81580D Lamp Assy, Rear, RH
81581C Lens And Body, Rear Lamp, RH
81584 Packing, Rear Lamp RH
81585 Socket & Wire, Rear Lamp
81590A Lamp Assy, Rear, LH
81591B Lens And Body, Rear Lamp, LH
81594A Gasket, Rear Lamp LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
